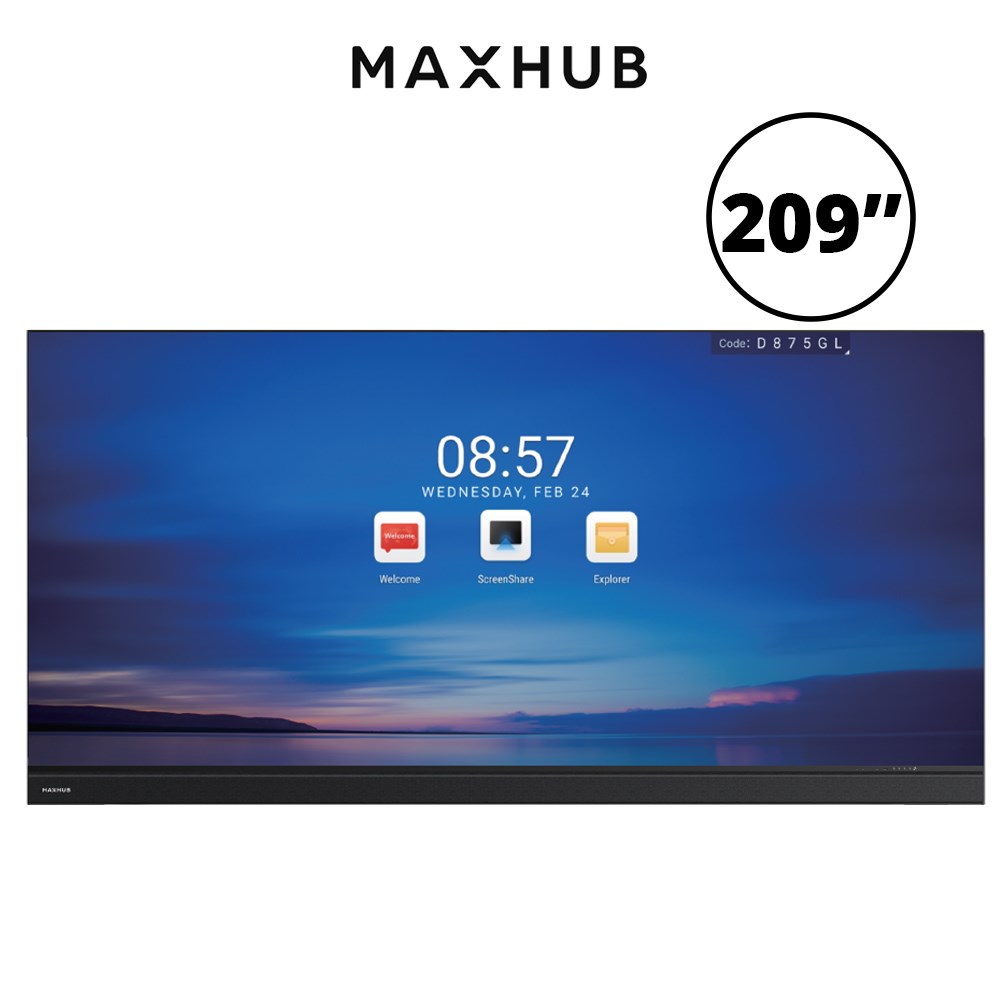

Maxhub Raptor 209" LED 21:9 Aspect 1.9mm Pixel Pitch

LED All-in-one Display Terminal

• Ultra-light and ultra-thin,the weight of a single LED cabinet is only 4.8kg, the thickness is 31mm, no complicated steel structure is needed,which is convenient for construction and installation;
• Support sound playback, built-in 2*30W audio, support 2.0 channels
• Mobile phone interactive function, support mobile phone to realize touchpad and remote control function, support mobile phone to open application quickly, support mobile phone to adjust display parameters;
• It supports conference mode, presentation mode, energy saving mode, user mode and multiple modes, and the scene mode can be quickly adjusted according to the application scenario;
• The full HDMI interface uses HDMI 2.0 interface and supports 4K input;
• Support WiFi function, can be connected to achieve Internet access; support 2.4Gand5Gdual network duplex;
• Supports Bluetooth function, and can connect to Bluetooth devices via Bluetooth;
• Built-in Android 9.0 system;
• Built-in 232 and 485 interfaces can realize centralized control function;
• Full front service, supports hot plug, simplifies maintenance；
• Leading 3-in-1 integrated board design, which reduces component wired connection and improves stability;
• Independent R & D design of software and hardware, high compatibility of functional modules, maximize performance of products;
• Built-in mature technology, support wireless screen sharing, small screen control large screen, letter sending system, timer, built-in "welcome interface" editing software, etc.;
• Simple and easy-to-use menu, remote control operation; realize brightness, color temperature, contrast, volume and other adjustments, signal source switching, standby mode selection and other functions.
• Ultra-low standby power consumption design, the standby power consumption of the whole machine is less than 0.5w.
• Meet the EU RoHS directive requirement.

Overall Parameter

• Size: 209 inch
• Aspect Ratio: 21:9
• Pixel Pitch (mm): P1.9
• Resolution: 2560x1080
• Overall Size (L*H): 4894x2175mm
• Display Area (L*H): 4880x2058mm
• Screen Thickness: 31mm
• Net Weight: 260kg (wall-mounting bar and stand not included)
• Recommended Viewing Distance: ≥3.9m
• Maintenance Mode: Front Access
• Installation Mode: Wall Mounting, Hanging

Optical Parameter

• Brightness: 550cd/m2
• Refresh Rate: 1920/3840Hz
• Gray Scale: 13-16bit
• Contrast: 6500:1
• Colour Temperature: 2300-9300K (adjustable)
• Viewing Angle: Horizontal 170°, Vertical 170°
• LED Lifespan: ≥100,000hrs

Electrical Parameter

• Operation Voltage: 100-240VAC 50/60Hz
• Standby Power: ≤0.5W
• Average Power Consumption of Overall Unit: 1.01KW
• Maximum Power Consumption of Overall Unit: 2.98KW

System Parameter

• Operating System: Android 9.0
• CPU: Dual Cortex-A72 large core + four Cortex-A53 small core, frequency 2.0GHz
• RAM: 4GB
• Storage: 32GB
• Media Format: Support mainstream video format such as MPEG1, MPEG2, MPEG4, WMV, MKV, TS, and flv; Support audio formats such as MP3; Support JPG, JPEG, BMP, PNG, GIF and other image format.

Environmental Parameter

• Operation Temperature -10℃-40℃
• Operation Humidity 10%-80%RH No condensation

I/O Ports

• HDMI 2.0 Input: 3 (2 internal, 1 external)
• HDMI 2.0 Output: 1 (internal)
• USB 2.0: 1 (external)
• USB 3.0: 1 (external)
• Type C: 1 (external)
• 3.5 Audio Output: 2 (1 internal, 1 external)
• Audio Optical Output: 1 (internal)
• RS232 Port: 1 (internal)
• RS485 Port: 1 (internal)
• Bluetooth: 1 (wireless)
• LAN: 1 (internal)

Note:
1. The content of this specification may be adjusted and revised in real time without prior notice to provide as accurate specification parameters as possible
2. This product is an indoor product. It is strictly prohibited to use it in direct sunlight
3. In order to ensure long-term and more uniform display effect, do not play fixed images for a long time
