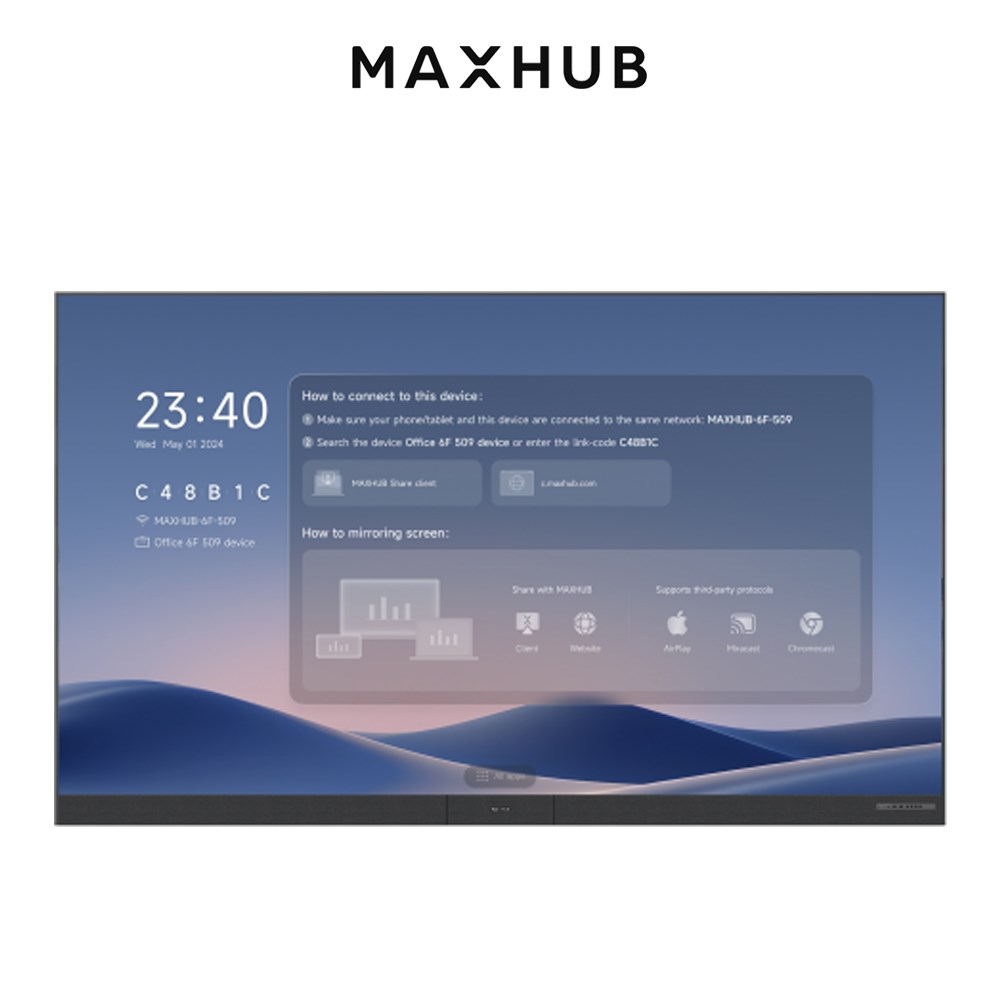

Maxhub Raptor 220" LED 1.2mm Pixel Pitch UHD

MAXHUB Raptor Series V3 DvLED All-In-One Display 01 Introducing the next generation Raptor Series V3 - the perfect solution for all your display needs. With its integrated slim design, this product seamlessly fits into any environment. It features an Android 13.0 system, multiple built-in Android applications, and a high-performance processor. Enjoy wireless screen sharing, switchable launcher templates, keypad lock function, 4.2-sound channel, and an optional expandable built-in PC. It supports MAXHUB Pivot for centralized management and is compatible with various video conferencing software and MAXHUB MTR certified products. Elevate your display experience with our versatile DvLED All-in-One display.

Dual System
Built-in Android 13 system & Optional Windows PC

Convenient device control
Control via MAXHUB Touch Console or through application on mobile devices

Wireless Screen Sharing
Via MAXHUB Share/dongles, Miracast, Chromecast or AirPlay

BYOM
Use your own device with the hardware already in the meeting room

Immersive Audio System
4.2-channel 4*30W speakers

Abundunt I/O ports
Lots of A/V I/O connectivity options for external devices

Supports MAXHUB Pivot
Remote Managemant with MAXHUB Product Family

One stop solution for large Space
Bundle with other MAXHUB Products to enhance the meeting experience.

Physical Spec.

• LED type: SMD
• Size: 220"
• Aspect Ratio: 16:9
• Pixel Pitch (mm): 1.2
• Resolution: 3840 × 2160
• Overall Size (W*H)(mm): 4910 × 2869
• Display Area (W*H)(mm): 4880 × 2744
• Screen Thickness: 28 mm
• Net Weight (Wall-mounting bar and stand not included): 296 kg
• Gross Weight (Including Wall-mounting bar): TBA
• Recommended Viewing Distance:  5 m
• Maintenance Mode: Front Access
• Installation Options: Wall-mounting
• Screen And Module Dimension (Wooden Box) (W*H*D): 1 pc: 1560 × 1280 × 890 mm 1 pc: 1560 × 1240 × 1070 mm
• Lower Frame And Wall-mounting Bar Packing Dimension (Wooden box) (W*H*D):  1 pc: 2064 × 556 × 497 mm

Optical Spec.

• Brightness: 100~600 nits (Adjustable)
• Refresh Rate: 3840Hz
• Gray Scale: 13~16bit
• Contrast: 6500:1
• Colour Temperature: 2300~9300K (Adjustable)
• Viewing Angle: 160°(H)/140°(V)
• LED Lifespan:  100,000hrs

Electrical Parameter

• Operation Voltage: 100~240VAC 50/60Hz
• Standby Power:  0.5W
• Average Power Consumption of Overall Unit: 1.24KW
• Maximum Power Consumption of Overall Unit: 3.65KW

Audio

• Sound Channels: 4.2
• Speaker Output: 4*30W

System Parameter

• Operating System: Android 13.0
• CPU: Four Cortex-A76+ four Cortex-A55, frequency 2.4GHz
• RAM: 8GB
• Storage: 64GB
• Media Format: Support mainstream video format such as MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC, AV1; Support audio formats such as MP3; Support JPG, JPEG, BMP, PNG, GIF and other image format.

Environmental Parameter

• Operation Temperature: -10℃~40℃
• Operation Humidity: 10%~80%RH No condensation

Built-in Conectivity (excluding Opitonal PC)

• HDMI IN (HDMI2.0 *1，HDMI1.4 *3): 4 (2 internal, 2 external)
• HDMI OUT (HDMI 2.0): 1 (external)
• RJ45 for External Camera (With POE+): 1 (internal)* - Up to 30W, for Connection between MAXHUB PTZ Camera and Raptor
• USB 2.0: 1 (internal)-Host
• USB 3.0:  2 (external)-Host
• Type C: 1 (external)
• 3.5 Audio Output: 2 (1 internal, 1 external) - Output Integrated Input & system audio
• 3.5 Audio Input: 1 (external)
• Control port (RJ45): 1 (internal) - Support RS232 Protocal
• USB Out: 1 (external) - Access to USB devices connected to panel
• LAN: 2 (internal)
• Light Sensor: 1: intelligent space sensing, allowing for automatic brightness adjustment
• Bluetooth: 5.3
• Wi-Fi: WiFi 6, AP and STA modes, and WiFi 6 dual-band 2.4G/5G are available
