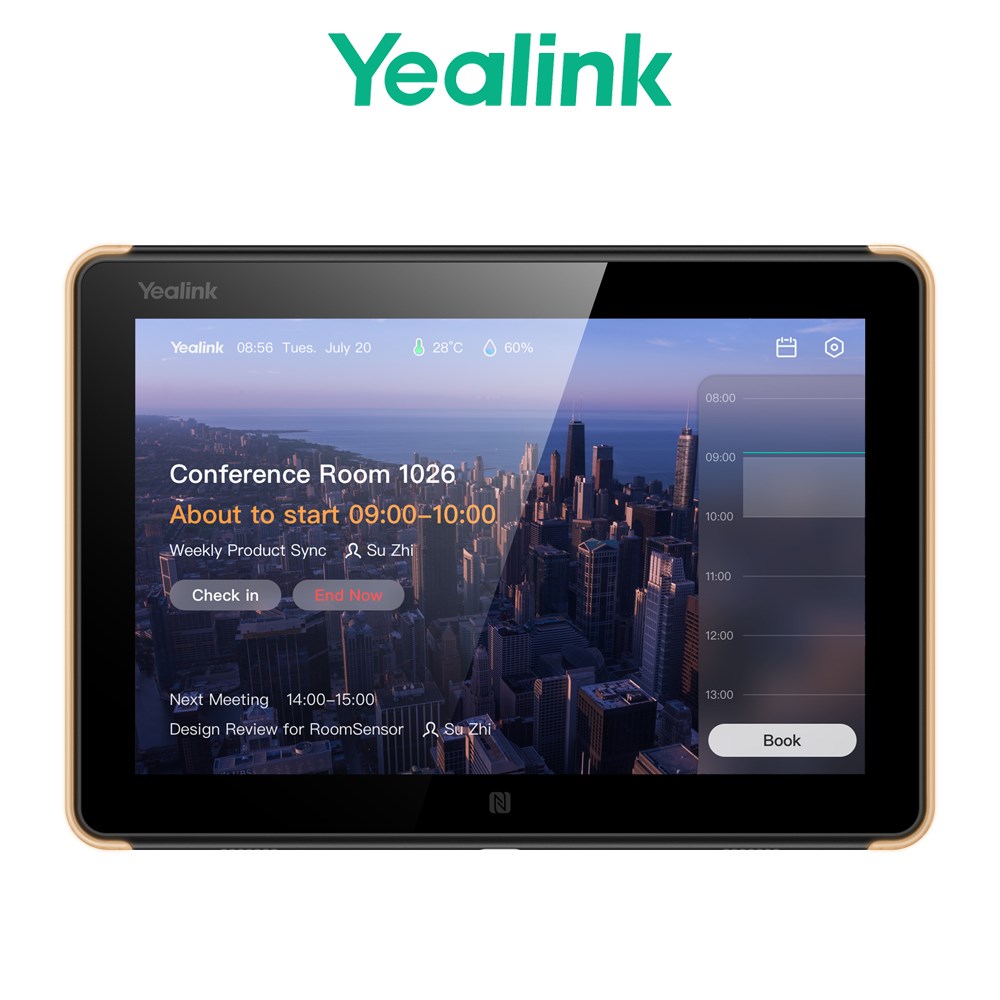

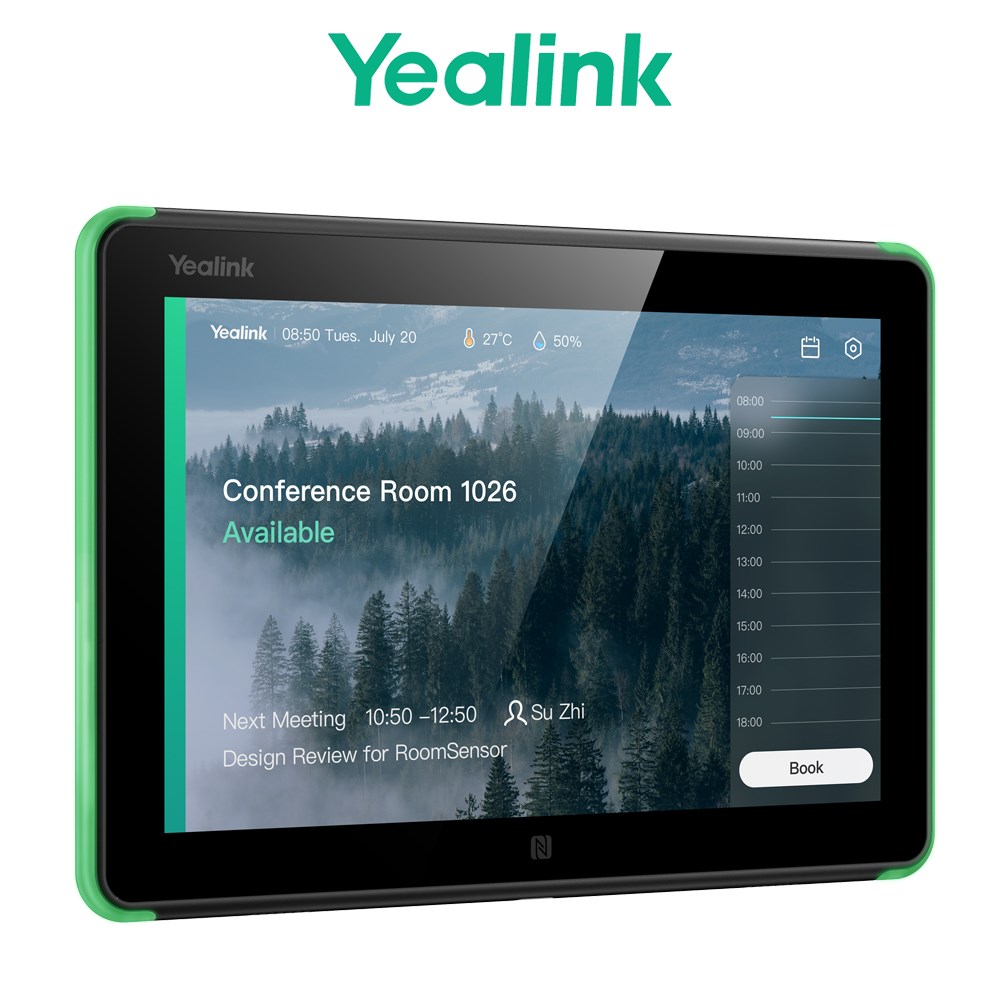

Yealink RoomPanel
INTELLIGENT SOLUTION, SMART WORKSPACE
Yealink RoomPanel is a professional multi-function conference meeting room scheduling digital signage device with 8-inch touch screen, Android 9.0 OS, full-RGB LED, dual microphone and speakerphones array. The all-in-one panel not only displays the room status, but also allows for reservations of all meeting rooms within the organization.
Dedicated Interface, Modern Stylish Design
Slim and compact, along with elegant and metal appearance, the panel is ideal and congruent for modern workspaces. It also brings superior visual and interactive experience on the 8-inch touchscreen with anti-fingerprint craft as well as the light and proximity sensor.

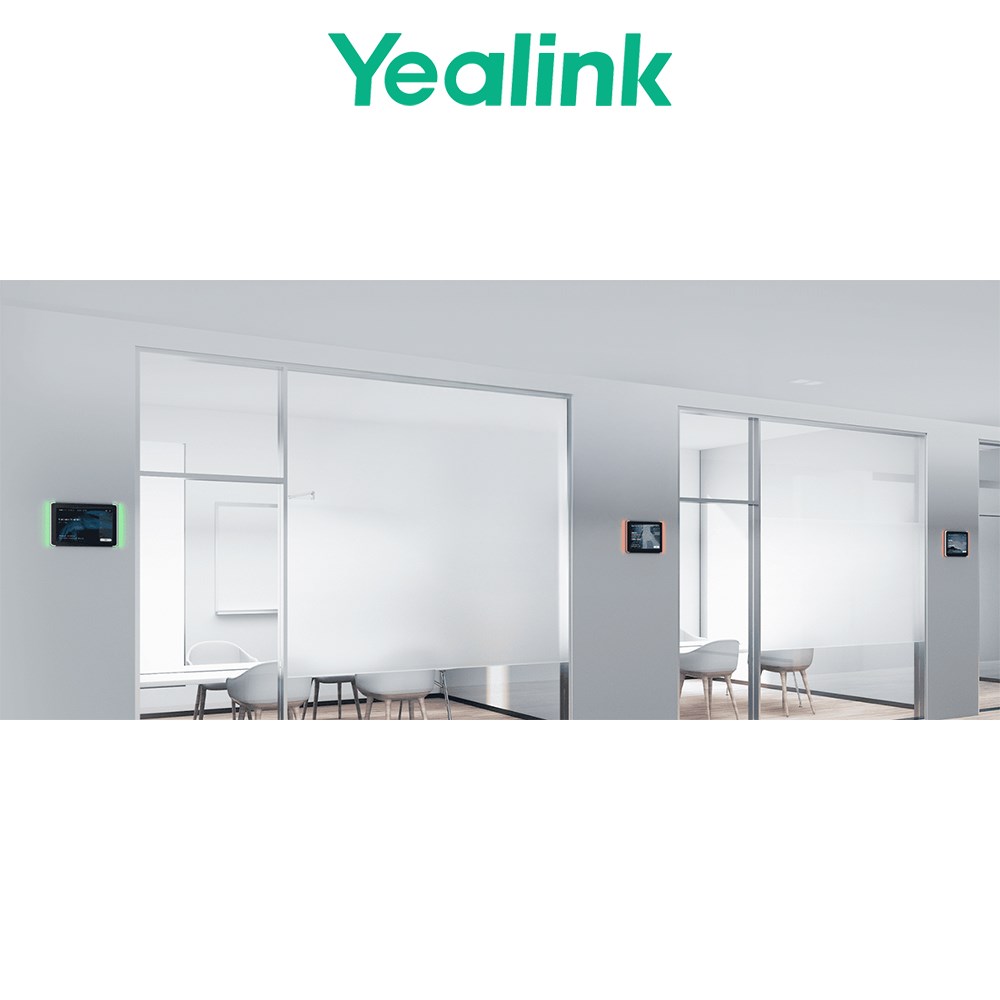

Vibrant LED Bars, Room Status At-a-glance
Checking the availability of a meeting room becomes ever easier with the colored LED bars.
The bilateral cambered, full-RGB LED bars, allowing for customized color settings, are of high visibility from any angle of view.
Perform with Enterprise-grade Capabilities
- Support dual-band 802.11ac Wi-Fi module for wireless deployment with enhanced network stability and efficiency.
- Embedded dual Bluetooth 5.0 chipsets for extended features such as Bluetooth gateway – pairing with RoomSensor to enable auto reserve/release*.
- Support NFC/RFID for advanced ID authorization and attendee check-in*.
- Built-in microphone array and dual speakerphones for future expansions like virtual assistants, administrator call, etc.
Broad Platform Compatibilities

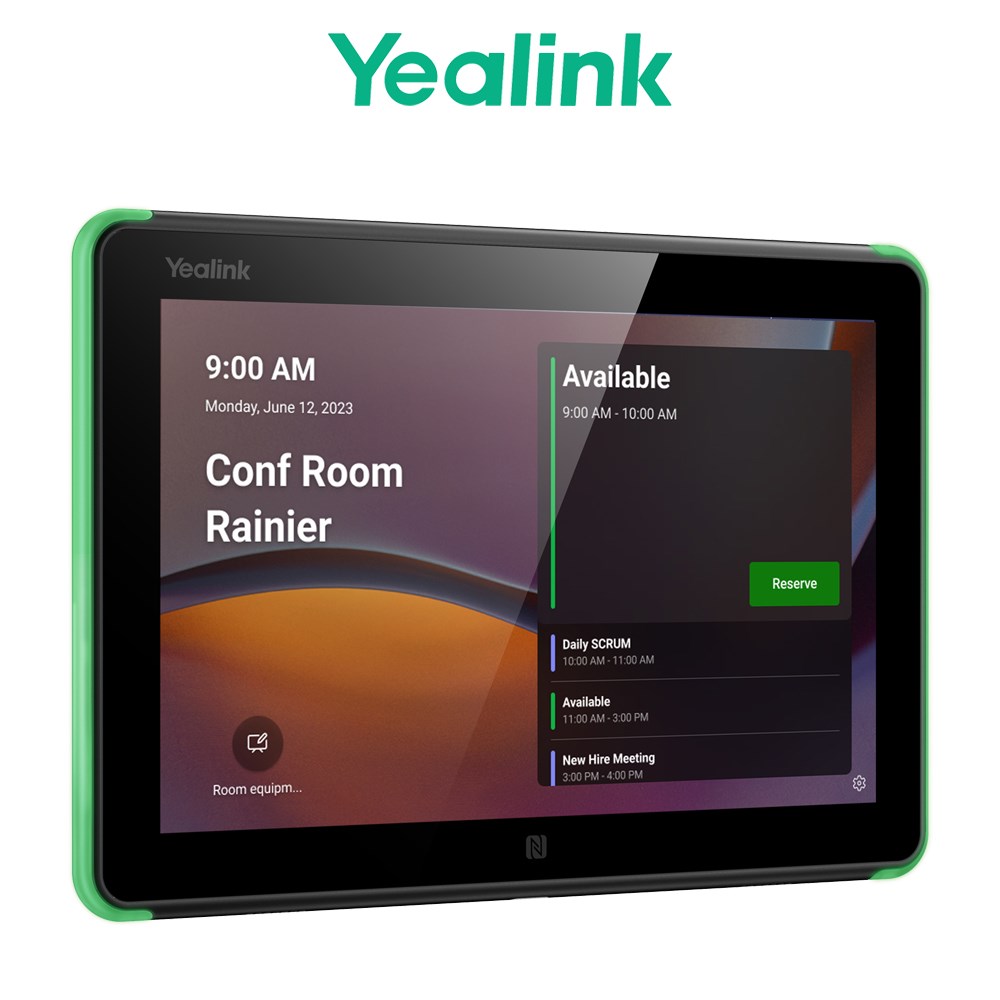

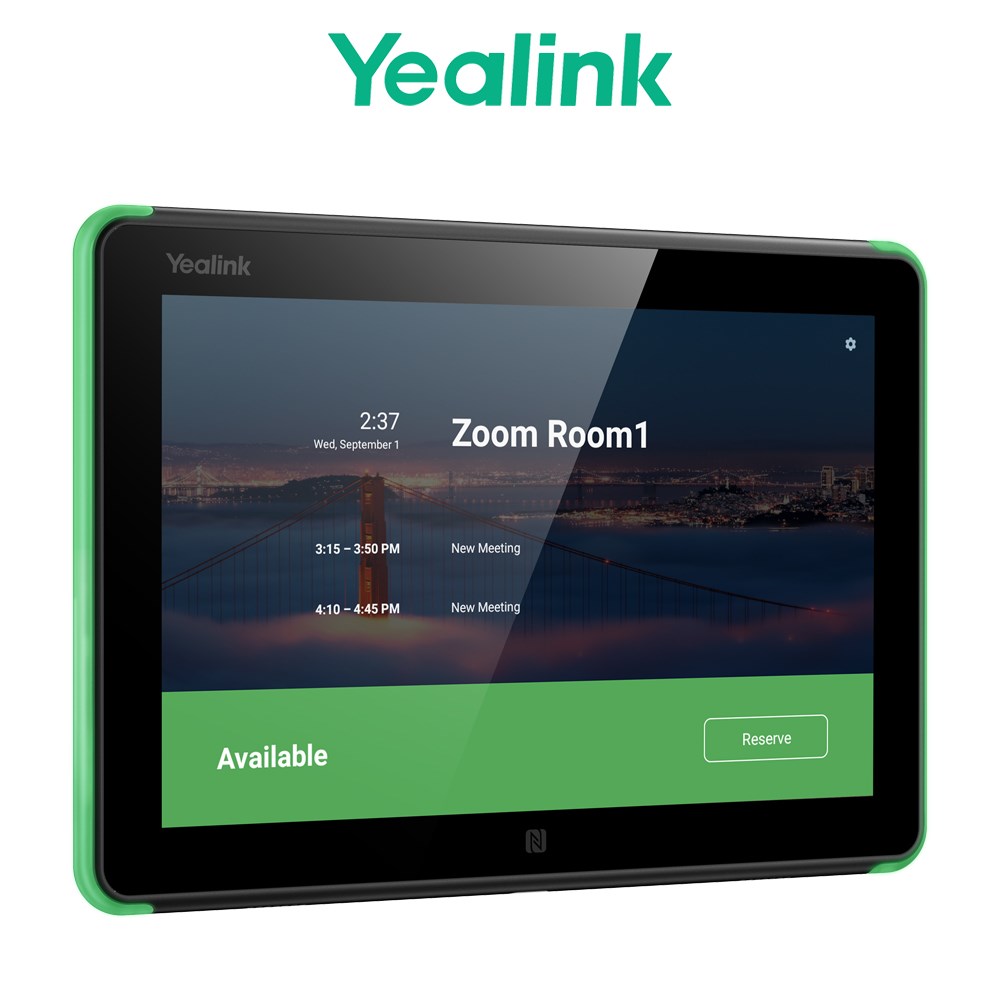

Compatible with Yealink Workspace Management Platform, Microsoft Teams, Zoom and other third-party meeting platforms, the RoomPanel offers experiences of your choice for various meeting scenarios and environments, supporting your existing calendar system.
Simple Deployment, PoE Support
Supporting PoE and DC power supply, the Panel is labor- and time-saving to install with provided mounting brackets on concrete wall/glass/wood and other surfaces, with parallel or tilt angle.
Efficient Remote Management
Working with Yealink Workspace Management Platform and Yealink Management Cloud Services, all the meeting room devices and schedules can be monitored, managed, and analyzed with ease and efficiency.
ZYEROOMPANEL
- 8-Inch 10-Point Interactive Panel
- Anti-Fingerprint Screen:
- High Visibility LED Bars out Room Status
- Ambient Light & Proximity Sensor Embedded
- Any Walls and Tilt Optional
- Orientation Optional
Key Features
Display
8" LCD Panel
Resolution: 1280x800
Audio
2 x Array Microphones
2 x Watt Speakers
12 V Power Adapter
Mounting Options
Surface mount for 2-gang US electrical box
20° tilt mount kit for wall or glass
Flush mount kit for wall or glass
Bluetooth 5.0
802.11ac Wi-Fi
Introduction
Yealink RoomPanel is an 8-inch all-in-one meeting room schedule panel that runs Android 10.0 and comes with full RGB programmable LED background illumination for immediately visible communication of room status. It includes 10-point touch capability, 802.11ac Wi-Fi, Bluetooth 5.0, a built-in NFC/RFID reader, enhanced microphone arrays and speakers to meet all modern workspace demands.
Operating System
Android 9.0
Display
- Size: 8″ LCD Panel (16:10)
- Resolution: 1280x800
- Contrast: 1000:1
- Viewing Angle(H/V): ±80°/±80°
- Touch Screen: 10-points Capacitive, Multi-touch
- Anti-fingerprint Coating: Yes
- Proximity Sensor: Yes
- Ambient Light Sensor: Yes
Connectivity
- Ethernet: 1 x Fast ethernet port (10/100Mbps)
- Wi-Fi: 802.11a/b/g/n/ac
- Bluetooth: 5.0
- RFID/NFC: 13.56MHz
- USB Port: 1 x USB-C port
- Button: 1 x Reset pin hole
Audio
- Microphone: 2 x Array Microphones
- Speaker: 2 x 1 Watt Speakers
Power Supply
- Power over Ethernet (IEEE 802.3af)
- 12V Power Adapter
Mounting Options
- Surface mount for 2-gang US electrical box
- 20° tilt mount kit for wall or glass
- Flush mount kit for wall or glass
Dimensions
- Display size (mm): 209 x 146
- Weight: 0.53kg
