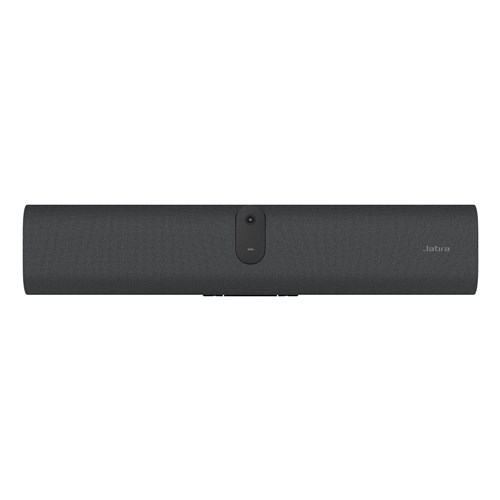

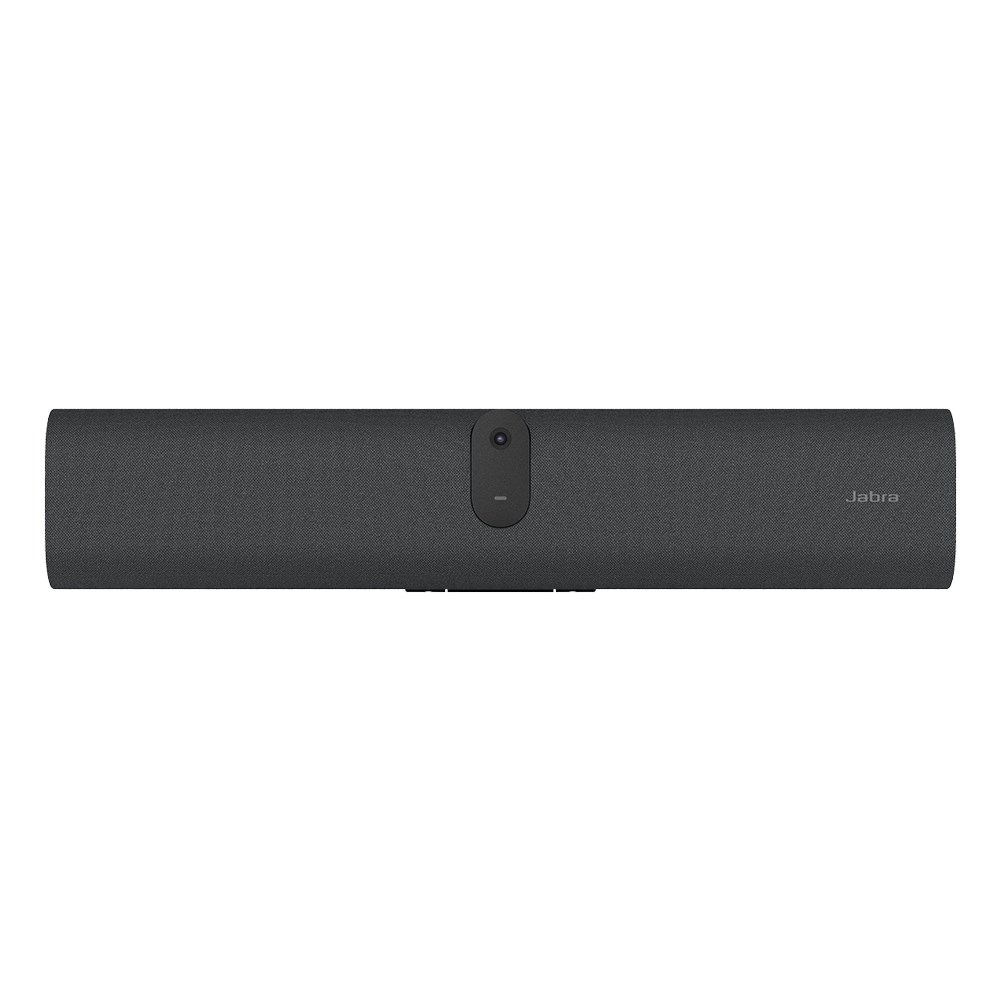

Jabra PanaCast U30 All In One Video Bar

• An onboarding wallpaper with simple how-to-use instructions to avoid guesswork
• One single USB-C cable to connect to your device
• Wide angle video and premium Jabra audio
• Fast, flexible installation options for easy scalability

Introducing the PanaCast U30
Deliver a better BYOD experience with a compact video conferencing bar featuring onboarding wallpaper, single USB-C connection, and premium Jabra audio and video.

Better BYOD experience

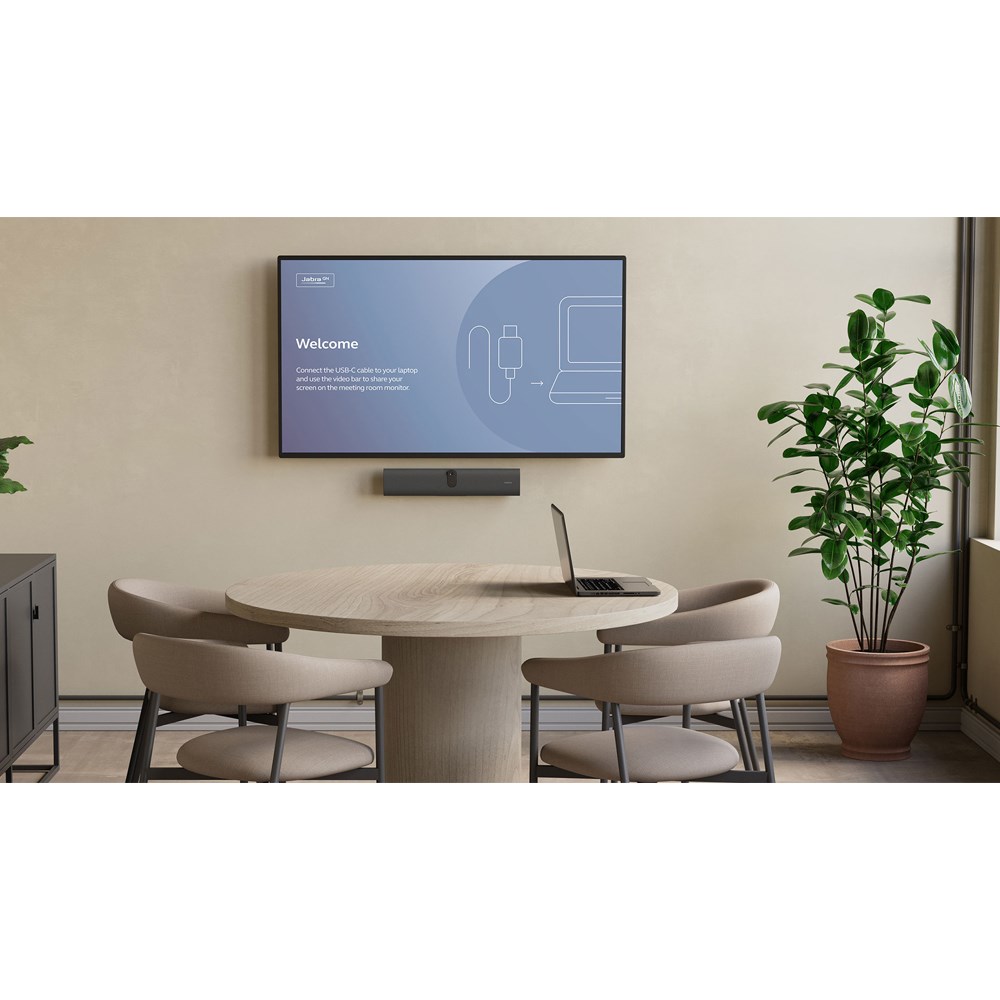

No more black screens. Onboarding wallpaper guides users on how to get started. One USB-C cable connects your device to the bar – reducing confusion and wasted meeting time.

Plug-and-play simplicity
Once installed, users simply connect and launch meetings on the platform of their choice. No controller. No unnecessary complexity.

Wide-angle premium video
A single wide-angle camera ensures everyone in the room is clearly visible, even in compact spaces.

Outstanding audio
Six microphones and a powerful speaker deliver full-duplex, room-filling sound for natural conversations.

Easy to deploy
Wall mount included. VESA and table stand options available. Intuitive cable routing and integrated mount for easy, tidy installation.

Easy to manage
Remote management and updates via Jabra Plus. Local updates also available.

Works with your meeting platform
Start the meeting from your device as usual, with the convenience of using a familiar interface. Works with Microsoft Teams and Zoom.

Tailored services for a seamless workday
Make hybrid working a success with Jabra’s complete range of services

General Info

• Operating system: Android 13
• Packaging dimensions (WxHxD): 589 x 110 x 210 mm
• Main unit dimensions (WxHxD): 529 x 108 x 65 mm
• Main unit weight (base unit): 1.51 kg
• Package weight: 2.99 kg
• Warranty: 2 years
• Onboard AI: Yes
• Cable management: Yes
• Operating voltage: 100-240V
• System requirements: Windows (latest two versions), macOS (latest two versions)
• LED features and functions: Firmware update status, Mute/unmute, Power indicator, Streaming

Video

• Video input: 1 x HDMI
• Video output: 1 x HDMI
• Content sharing: HDMI input, USB-C (DP-alt mode) ³
• Number of cameras: 1
• Camera resolution: 4K resolution
• Zoom: Up to 3x lossless digital zoom at 720p, Up to 6x digital zoom at 720p
• Field of view: Horizontal: 120°, Vertical: 61°, Diagonal: 132°
• Intelligent Zoom: Yes
• Intelligent Meeting Space: Yes
• Multi-stream Dynamic Composition: Yes ⁴
• Dynamic Composition: Yes
• Virtual Director: Yes

Audio

• Speaker frequency range: 80Hz - 20000Hz
• Number of speakers: 1
• Automatic Speaker Detection: Yes
• Noise Reduction Echo Cancellation: Yes
• Non-Speech Noise Suppression: Yes
• Number of microphones: 6
• Microphone sensitivity: -37dBFS
• Microphone frequency range: 100Hz - 16000Hz
• Aux-Out for assistive listening devices: 3.5mm jack

Security

• Access management: Jabra Plus for admins; Jabra Plus; Jabra Web Console; Local account; Jabra Plus On-Prem
• Security management: Remote log in via Jabra Plus, Jabra Web Console and VaaS Admin Portal
• Authenticated access to Admin settings, Jabra Web Console, Jabra Plus: Yes
• Account password strength check and enforcement: Yes
• Device locked down for security: Yes
• Lockdown with secureboot, OS verified boot, Vendor lock: Yes
• Log retrieval via Jabra Web Console: Yes

Connectivity

• Interfaces: Wi-Fi (802.11a/b/g/n/ac), USB-A, Ethernet (RJ45), HDMI, 3.5mm jack port, USB-C 3.2 gen 1
• Bluetooth® version: 5.2
• Supported USB versions: USB 2.0, USB 3.0
• UVC versions: 1.5
• Recommended passive USB 3 cable length: 1.8m

Network

• Internet Protocol (IP): IPv4, IPv6
• Ethernet: RJ45
• Auto-MDIX: Yes
• Proxy support: HTTP; HTTPS
• Support DHCP: Yes
• Support Static IP Address: Yes
• Simple Certificate Enrollment Protocol: Yes

Software & Apps

• Compatible software and/or apps: Jabra Plus; Jabra Direct Online; Jabra SDK; Jabra Web Console for remote device management via HTTPS
• Integrated People Count: Yes
• Software Development Kit (SDK): Yes

Ease of Use

• Digital pan/tilt/zoom: Yes
• Manual Pan-Tilt-Zoom (PTZ): Yes
• Camera privacy cover: Yes
• Single Cable BYOD: Yes ³
• Digital Signage: BYOD Cable Guides
• Proximity sensor: Yes

Extended Info

• Operating temperature: 5°C to 35°C
• Storage temperature: -20°C to 60°C

Box contents:

• PanaCast U30
• USB-C to USB-C 3.2 Gen 1 Cable (1.8m)
• 1 × Regional Power Cable
• Privacy Cover
• Power Supply
• Wall Mount
