Dell Pro Docking Station WD25 - 100W Power Delivery

Fuel your productivity
Gain the versatility to create your ideal workspace with a dock featuring 6 USB ports, support for 4 displays and driving up to 100W of power delivery to the latest Dell AI PCs for optimal productivity.

More manageable
Keep your dock up to date and work without interruption.

Improved manageability
Manage your dock from the Dell Device Management Console by utilising Dell Display and Peripheral Manager installed on your PC.

Simplify firmware updates
Reduce IT complexity by deploying a single firmware file across workspaces.

Minimise end-user disruption with silent firmware updates that are executed upon dock disconnection.

Work with confidence
Enhance your docking experience with universally compatible features including MAC Address Pass-Through and Power Button Sync, for a better docking experience across brands.

Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable[2] that can be routed left or right.

Designed for sustainability
The Dell Pro Dock is built with post-consumer recycled materials and packaged with recycled or renewable packaging, and offers less power consumption on standby mode.

Network & Communication

• Ethernet Technology: RJ45 Ethernet port, 2.5GbE

Miscellaneous

• Kensington Security Slot: Yes

Power Description

• Maximum Power Supply Wattage: 130 W
• Power Source Type: Power Adapter

Physical Characteristics

• Weight (Approximate): 550 g
• Height: 205 mm
• Width: 90 mm
• Depth: 35.25 mm

Software

• Operating System Supported: Windows 11, Windows 10, Ubuntu, Red Hat Enterprise Linux, macOS, ChromeOS

General Information

• Product Type: Docking Station
• Manufacturer Part Number: 210BRMB
• Manufacturer: Dell Technologies
• Product Model: WD25
• Product Name: Pro Dock - WD25
• Product Line: Pro Dock
• Brand Name: Dell

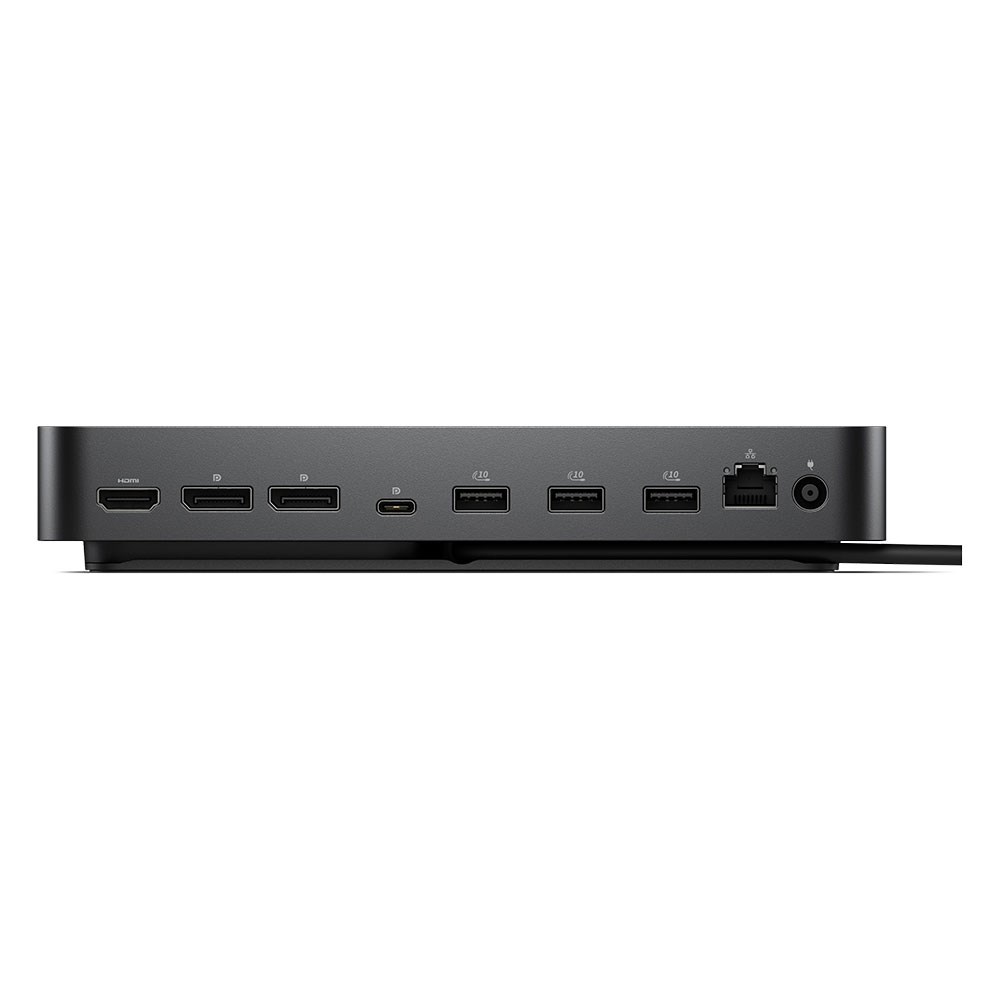

Interfaces/Ports

Video interfaces

• 2 x DP1.4
• 1 x HDMI 2.1
• 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

• 4 x USB-A 3.2 Gen 2 (10 Gbps)
• 1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Power Delivery

• 100W (Dell systems)
• 96W (non-Dell systems)

USB Ports (Power)

• 4 x USB-A 3.2 Gen 2 (4.5W each)
• 1 x USB-C 3.2 Gen 2 (15W)
• 1 x USB-C Multi-function DisplayPort (7.5W)
• All deliver power with or without PC

Technical Information

• Connectivity Technology: Wired
• Number of Displays Supported:4
• Device Supported: Notebook

Host PC Management

• MAC address pass-through
• PXE Boot
• Dock Power Button Sync
• Wake-On-LAN
• WLAN to LAN switch
• Kernel Direct Memory Access (DMA) protection

Dock Management Features

• Host PC based firmware update
• Firmware update on disconnect
• Port Disablement

Video Resolution

DP1.4 with Display Stream Compression

• 4 x WQHD (3440 x 1440) @ 60Hz
• 3 x WQHD (3440 x 1440) @ 60Hz
• 2 x 5K (5120 x 2160) @ 60Hz
• 1 x 6K (6144 x 3456) @ 60Hz

DP1.4 without Display Stream Compression
Up to:

• 4 x HD (1280x720) @ 60Hz
• 3 x FHD (1920x1080) @ 60Hz
• 2 x QHD (2560x1440) @ 60Hz
• 1 x 4K (3840 x 2160) @ 60Hz

• Pro Dock - WD25
• Power Adapter
• Power Cord
• Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
