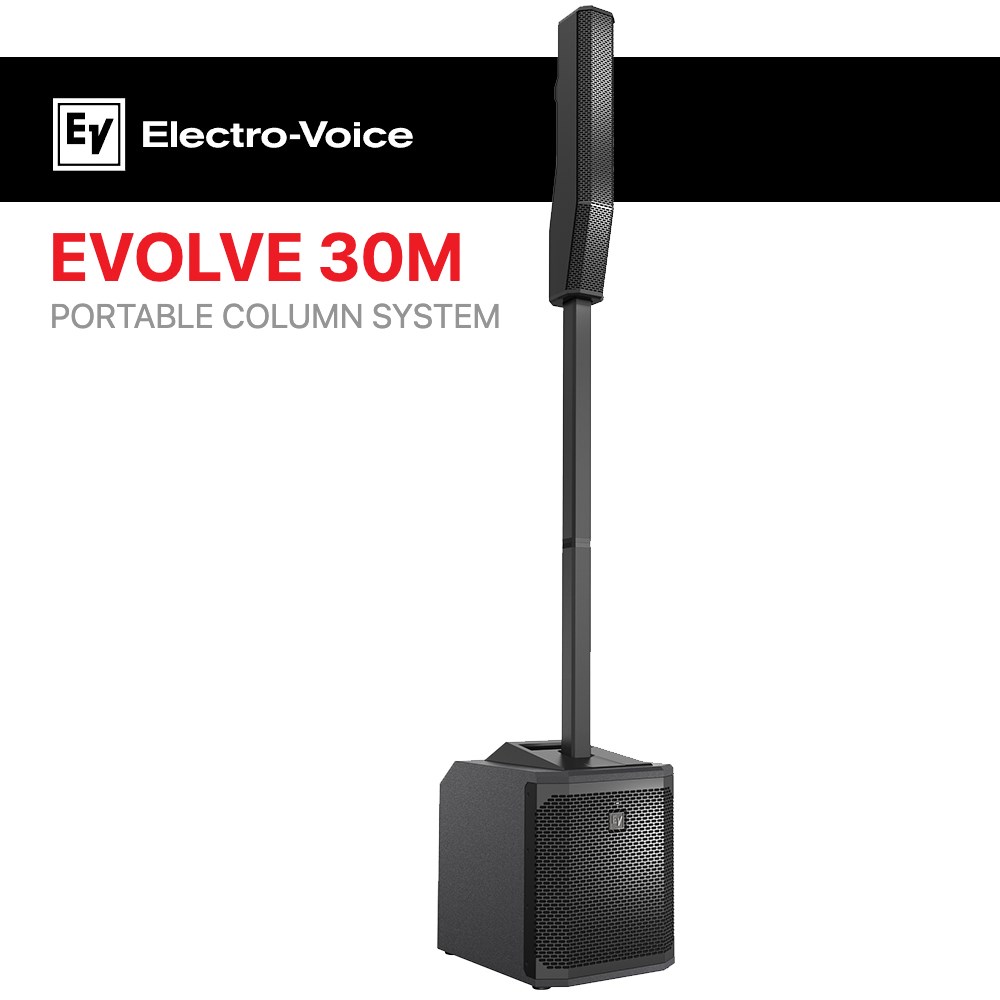

Electro-Voice Evolve 30M Portable Column System

Product Code: EVLEVOLVE30M

Share this product
Unit Description
Each
Usually Ships 5-7 Days
Login for Account Pricing

$3165.00 inc GST
Increase value Decrease value
Quantity in cart:
Qty Each Save %
  • Description
  • Specifications
  • Downloads
  • Videos
  • Contact Us
  • Mix your show like a pro
  • Optimize every detail of your sound
  • Room-filling coverage
  • Super-quick setup
  • Single-trip portability
  • Available in black or white

Superior Electro-Voice sound quality coupled with the most complete feature set in its class – the perfect combination of performance and flexible functionality, in a very compact package.

The EVOLVE 30M is designed to deliver a significant step up in all-around performance for a column system in its size/price category. It includes an eight-channel digital mixer, studio-quality onboard effects, and remote control of all audio, effects and mix functions via the next-generation Electro-Voice QuickSmart Mobile application (available via the Apple Store and on Google Play).


ZJNEVOLVE30M
  • Frequency response (-3 dB)¹: 51 Hz to 20 KHz
  • Frequency range (-10 dB)¹: 45 Hz to 20 KHz
  • Maximum SPL²: 123 dB
  • Coverage (H x V): 120° x 40°
  • Amplifier rating: 1000 W
  • LF channel rating: 500 W
  • HF channel rating: 500 W
  • Crossover frequency: 200 Hz

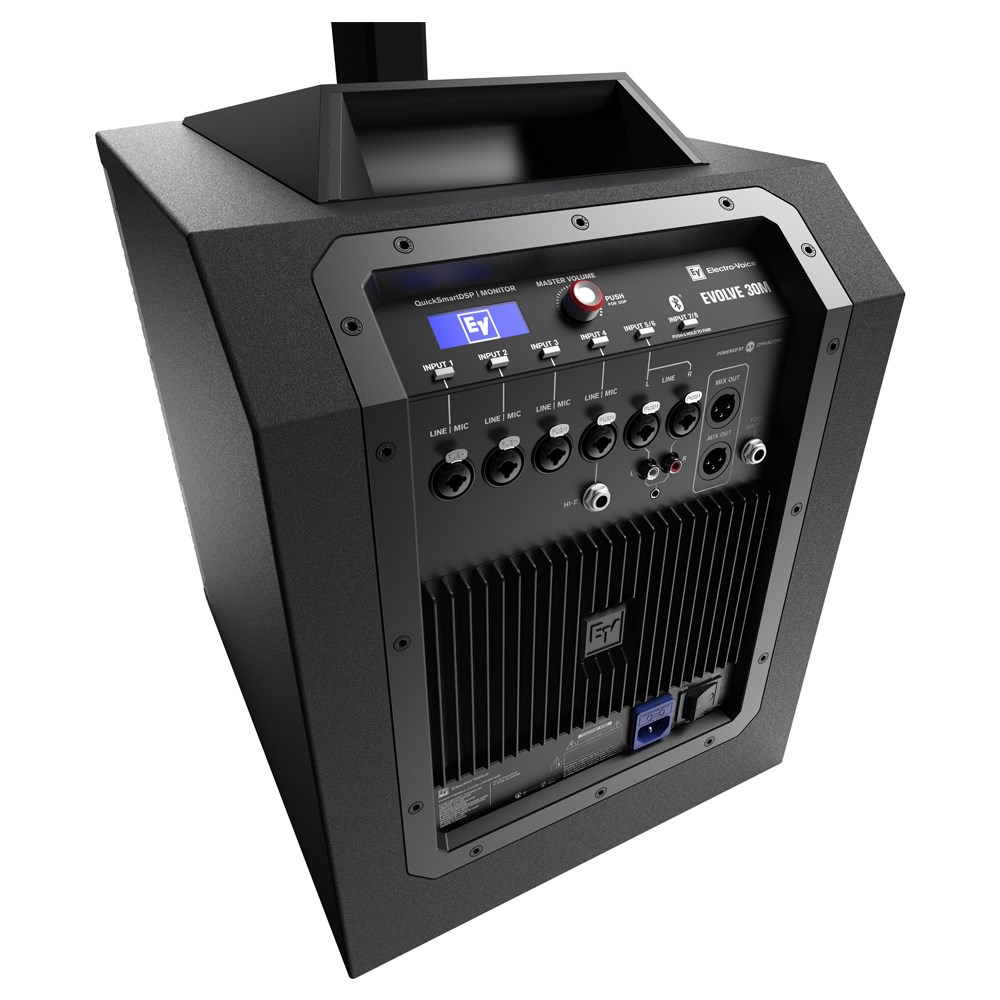

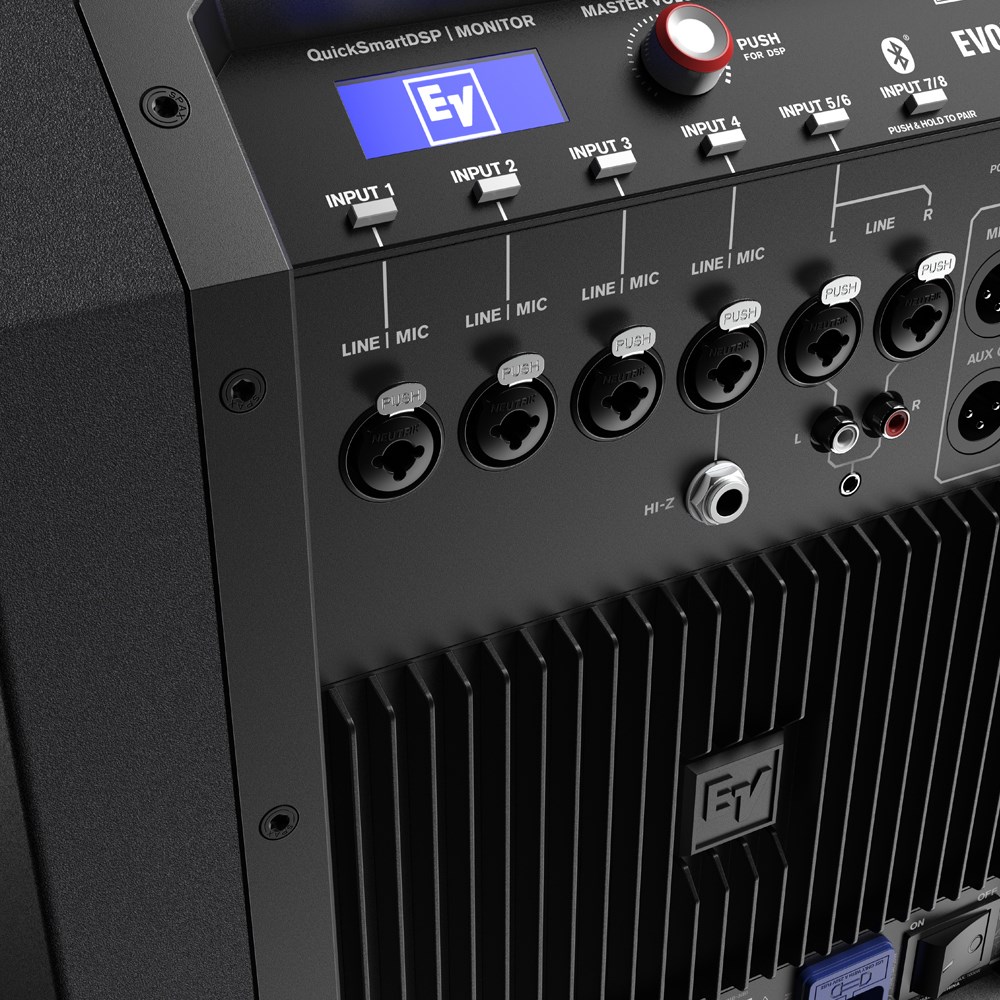

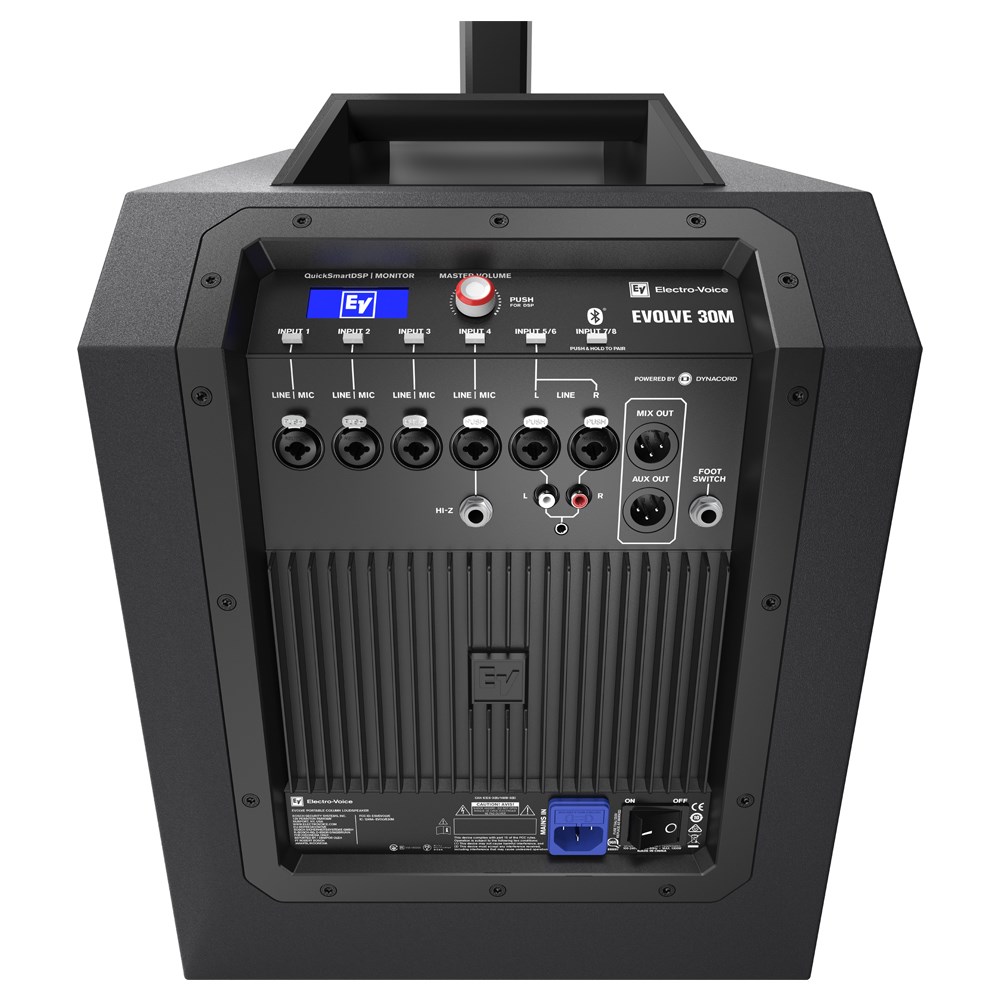

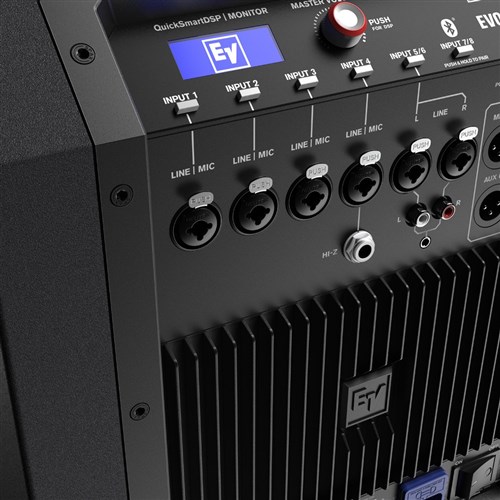

  • Connectors:
    • 4x XLR/TRS Combo Jack Line / Mic Input
    • 1x 1/4" TRS HI-Z input
    • 2x XLR/TRS Combo Jack for Stereo Line Input
    • 1x Stereo RCA Input
    • 1x 3.5 mm Stereo Input
    • 1x Wireless Stereo Bluetooth® Audio Input
    • 1x 1/4" Foot Switch Input
    • 1x XLR MIX OUT Output
    • 1x XLR AUX OUT Output

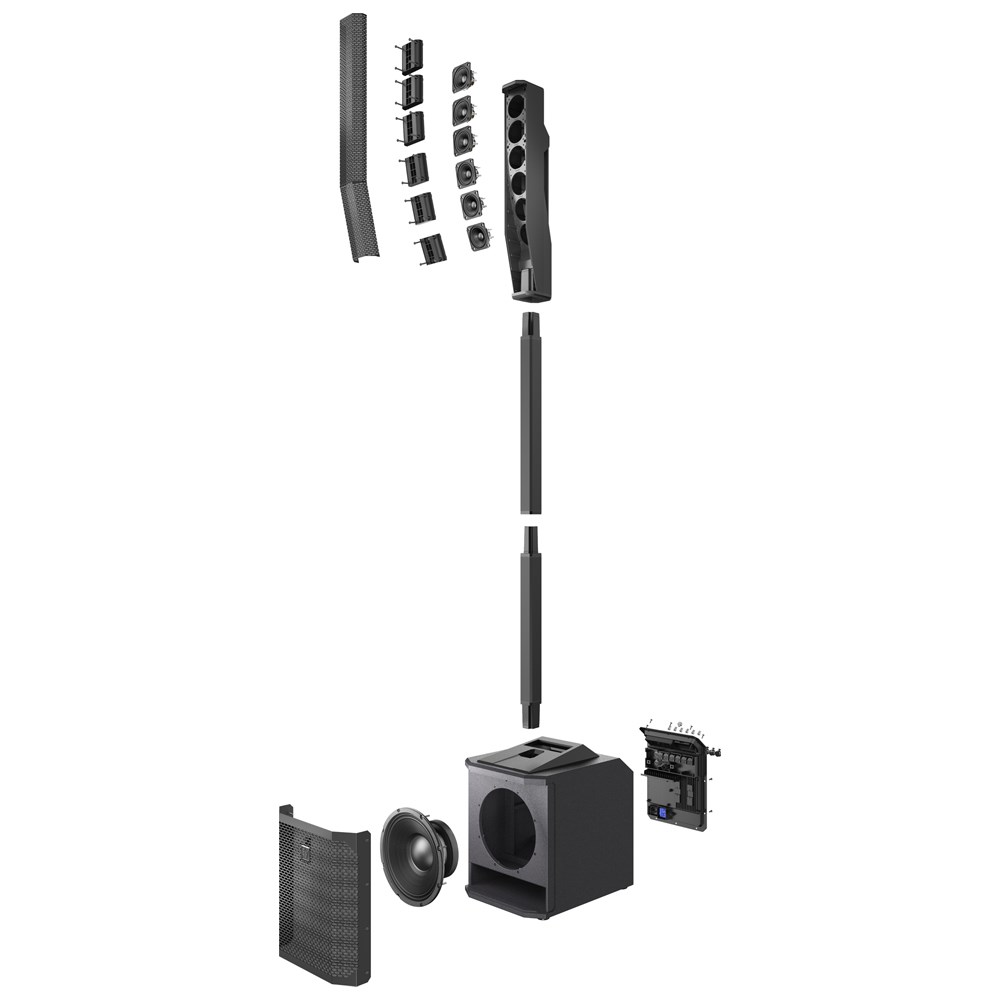

  • Enclosure:
    • Sub: 15 mm plywood
    • Column: Composite
    • Pole: Aluminum
    • Grille: Steel with black or white powder coat
  • Colour: Black or white
  • Dimensions (HxWxD): mm
    • Sub: 448 x 332 x 432
    • Column: 620 x 95 x 157
    • Pole (2 pcs): 600 x 48 x 55
  • Net weight:
    • Sub: 15.8 kg
    • Column: 2.7 kg
    • Pole (2 pcs): 1.4 kg
    • Bag for column and pole: 0.85 kg
  • Shipping weight: 24.2 kg
  • Power consumption³: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

¹ Half-space measurement using live DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.

Captcha Image
Signature
Product Specifications
Product Type Portable Column
Brand Electro-Voice
