Grandview Motorised IP Control Smart Screen,are fully equipped with integration options - IP control, IR remote, 12V trigger from your projector, relay control or RS232 commands.

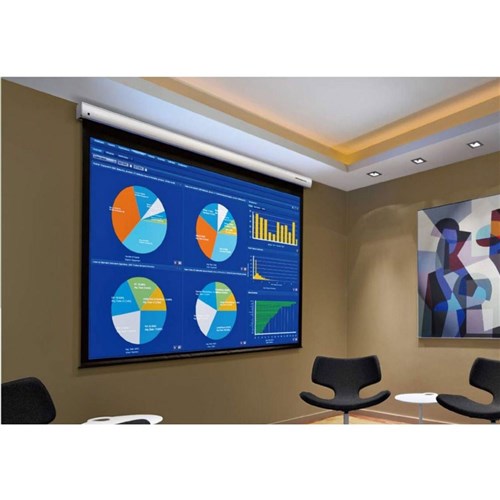

Grandview IP Smart Screen 140" (16:10) - Large Casing, Image size 3015 x 1885mm, casing 3315mm, 32.0kg
Features:
• As standard is supplied with IP control, IR Remote, 12V Trigger, Close Contact, and a manual override switch.
• Simple mechanical limit setting adjustments via the motor.
• Install is simplified with multi fit brackets that can be installed anywhere along the length of the casing allowing for mounting to wall stud positions.
• Brackets suit wall, ceiling or suspended installation.
• Projection surface is Plana R.
• Casing is extruded aluminium, finished in white.
Smart Features:
• IP Control
• 12V Trigger Using1.5mm output on screen and 3.5 on the projector end.
• External IR Cable with Jack plug 3.5mm with receiver eye.
• Close Contact Cable Provided in the box.
• RS232 control
• Manual Switch located on the bottom of the casing (Push button), close to the Power cable outlet.
ZAEGV-GRIP140C
