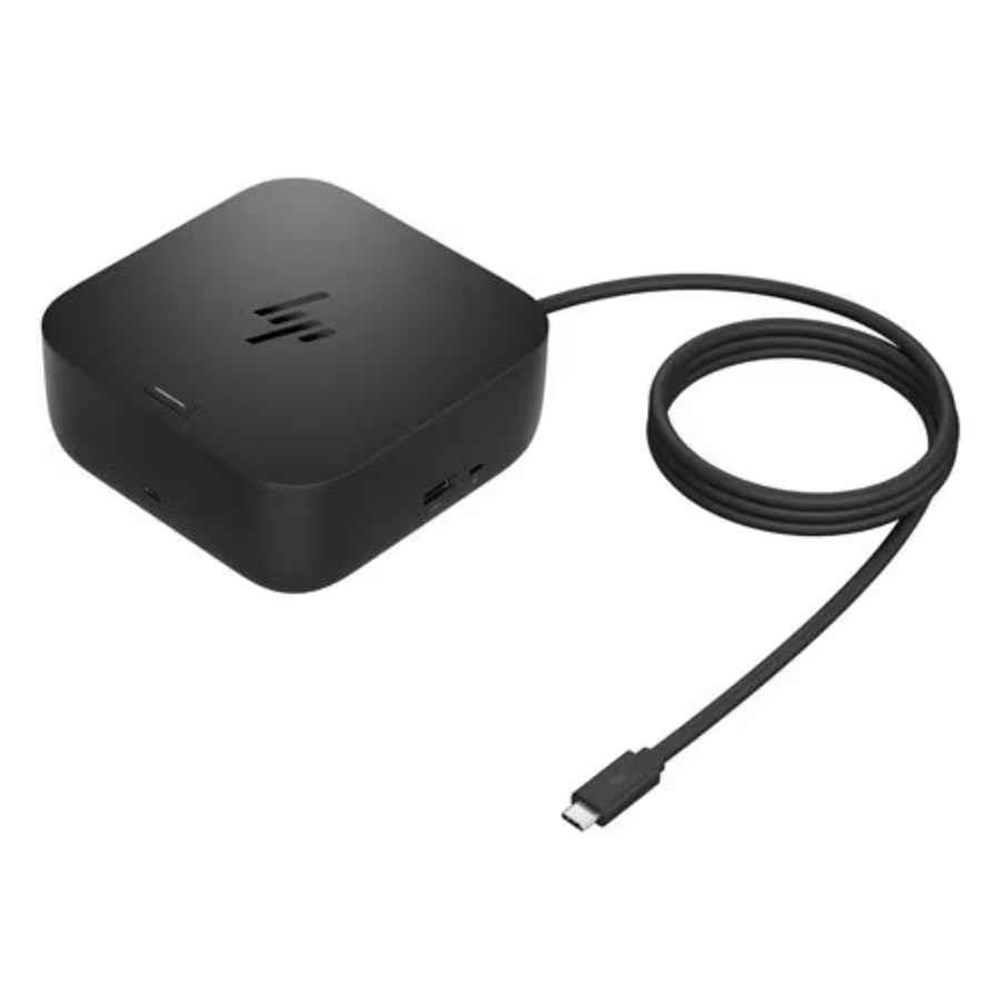

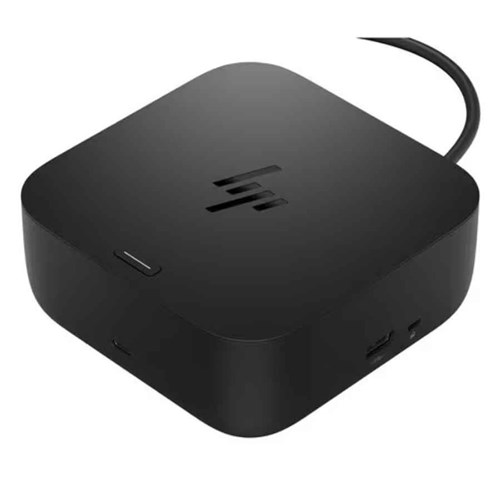

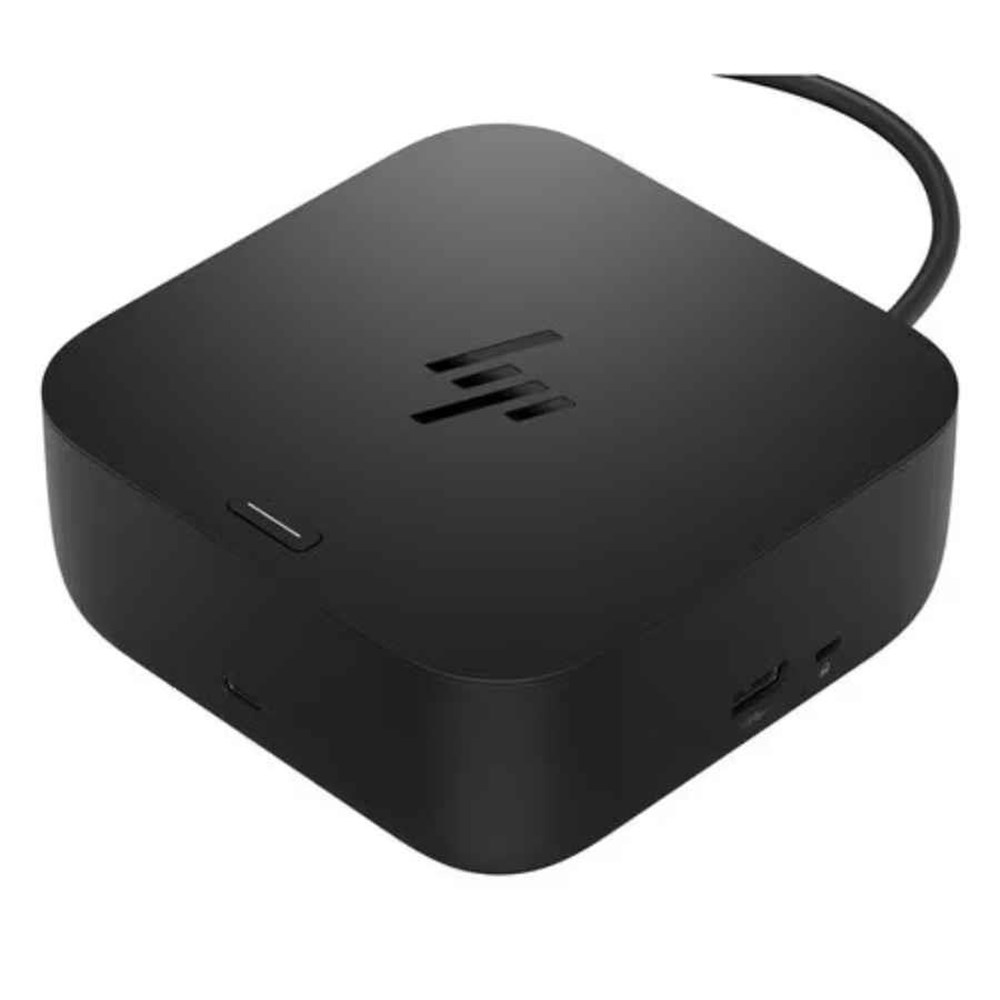

HP USB-C 100W G6 Dock Docking Station

Kickstart your day with less hassle and more hustle. The HP USB-C 100W G6 Dock boots your ecosystem as you arrive, connects instantly via a single USB-C^® cable, and streamlines your setup with ample ports and seamless, secure connectivity—all while staying up to date with remote manageability.

Features

• Connect your laptop and peripherals with one USB-C cable
• Delivers up to 100W of power to charge supported laptops
• Supports up to three external displays
• Includes HDMI 2.1 and dual DisplayPort 1.4 outputs (subject to host device capabilities)
• USB-C ports with high-speed data transfer and up to 15W power output
• Multiple USB-A ports for accessories such as keyboard, mouse, and storage
• 2.5GbE RJ-45 Ethernet port for fast, stable wired networking
• Supports Windows, macOS, Linux, ChromeOS, and ThinPro
• Mechanical power button with LED indicator
• Nano security lock slot for added physical security
• Includes 120W power adapter and 1m USB-C cableBuilt to last
• Power up before you sit down
• Hands-off manageability

Network & Communication

• Ethernet Technology    2.5 Gigabit Ethernet

Miscellaneous

• Post-consumer-waste%    35%

Power Description

• Maximum Power Supply Wattage    120 W
• Power Source Type    Power Adapter

Physical Characteristics

• Weight (Approximate)    680 g
• Form Factor    Desktop
• Height    51 mm
• Width    121 mm
• Depth    121 mm

General Information

• Product Type    Docking Station
• Manufacturer Part Number    9X3V1UT
• Manufacturer    HP Inc.
• Product Model    G6
• Product Name    USB-C 100W G6 Dock (9X3V1UT)
• Brand Name    HP

Technical Information

• Connectivity Technology    Wired
• Features    Compact, Power Delivery Pass-through
• Charging Capability    Yes
• Maximum Data Transfer Rate    1.25 GB/s
• Management Features    WLAN to LAN Switch
       MAC Address Pass-through
       PXE Boot
       Firmware update on disconnect
       Wake-on-LAN
• Security Slot Type    Nano Security Slot

Interfaces/Ports

• Host Interface    USB Type C
• HDMI    Yes
• HDMI Version    2.1
• Number of HDMI Ports    1
• Network (RJ-45)    Yes
• DisplayPort    Yes
• Total Number of USB Ports    5
• DisplayPort Out    Yes
• Number of DisplayPorts    2
• Number of RJ-45 Ports    1
• USB Type-C    Yes
• USB Type-C Detail    1 x USB Type-C^® 10Gbps signaling rate (data and 15W USB Power Delivery), 1 x USB Type-C^® 10Gbps signaling rate (data and 15W USB Power Delivery)
• DisplayPort Version    1.4
• Number of USB Type-C Ports    2
• Number of USB Type-A Ports    3
• USB Power Delivery    100W
• USB Type-A    Yes

• USB-C 100W G6 Dock (9X3V1UT)
• 120 W Power Adapter
• Product Notice
• Warranty Card
