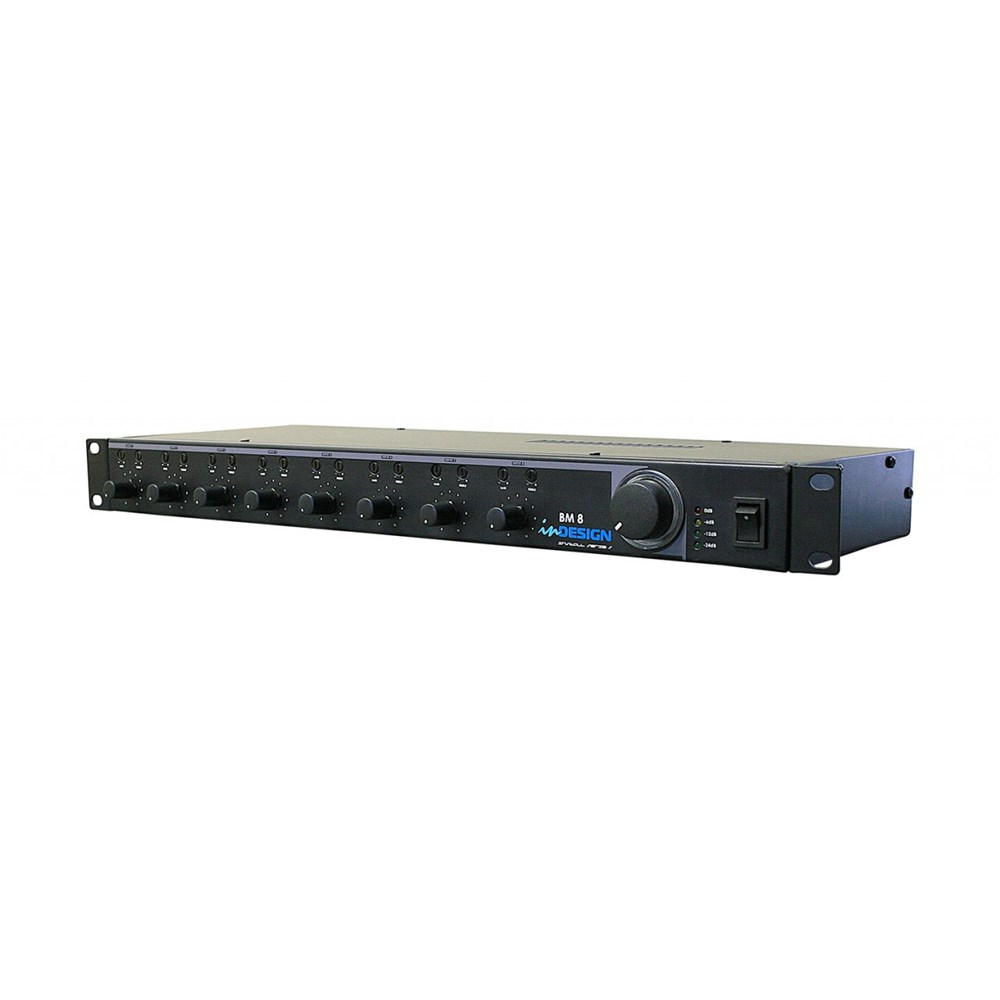

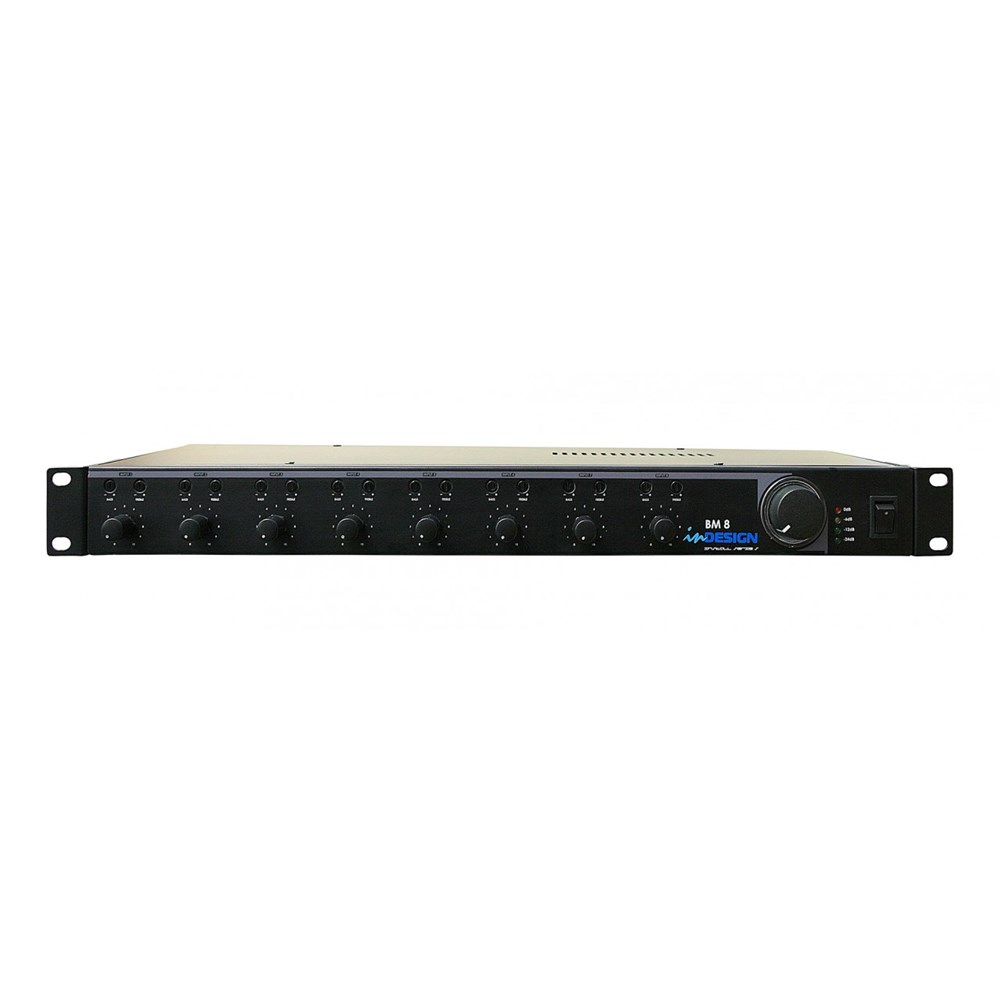

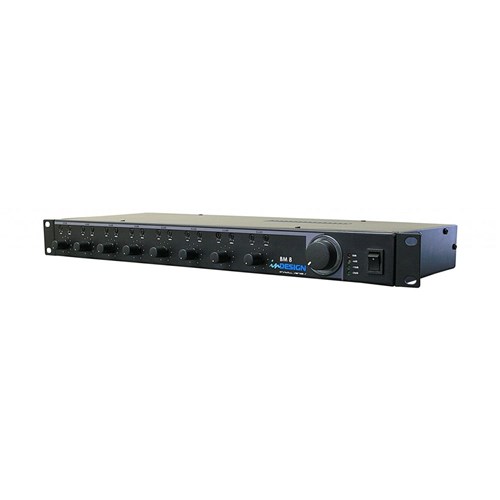

The inDESIGN BM8 is a high quality mixer for commercial and industrial audio applications.

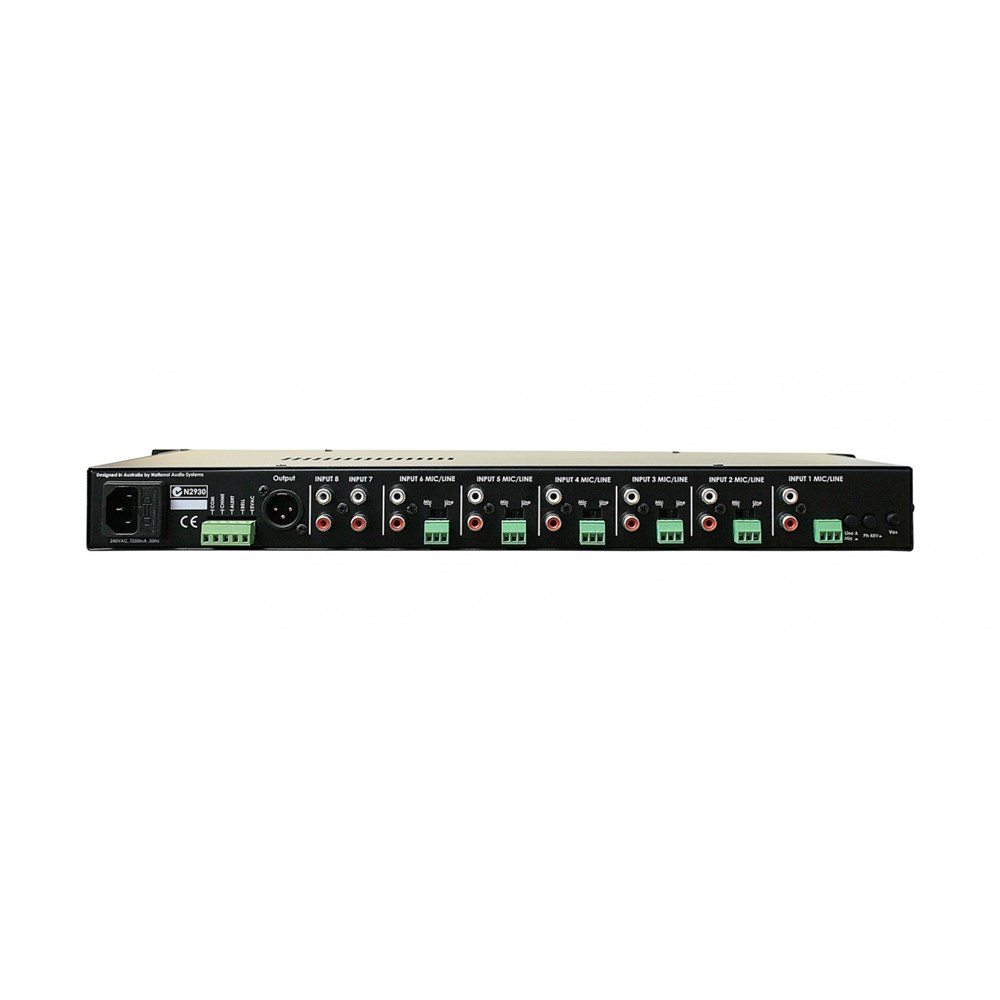

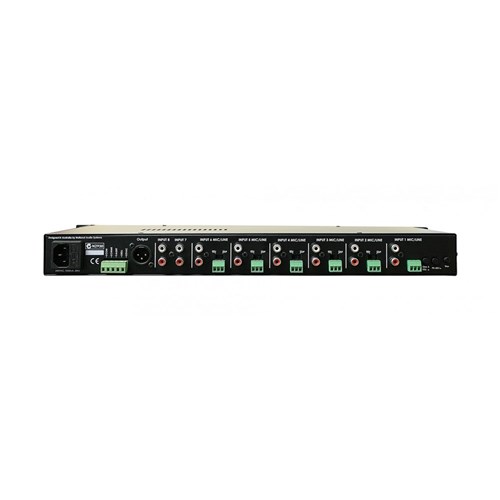

The BM8 features 8 Mic/line inputs plus 2 stereo inputs. Microphone input 1 features a mute so that a Microphone on this channel will mute all other inputs, useful for paging announcements. The BM 8 provides a mono output. There are 4 alarm triggers; CHIME; ALERT; BELL; and EVAC; connected via external mounted screw terminals.
The mixer is part of inDESIGN's Install Series, which also includes mixer amplifiers and power amplifiers. These units provide excellent features and value.
Features
- 8 x mic/line inputs on phoenix style connectors.
- Channel 1 with switchable +48VDC phantom power and vox mute.
- Built in chime/alert and evac tones to AUS standards.
- Individual channel bass & treble controls and master volume.
- 1RU.
ZNABM8
Mic Inputs
Connectors (Mic/Line): Euro Block / RCA.
Gain (Mic/Line): 20dB to 50dB / 0dB to 20dB.
Max Input Level (Mic/Line): -28dBu / +10dBu.
Frequency Response: 20Hz - 20kHz.
S/N: -86dBu.
THD+N: 0.3% (20Hz - 20kHz, +4dBu).
Phantom Power: 48V.
Tone Frequency/Control Range: 100Hz / 10kHz.
Balanced Outputs
Max. Output (Mic/Line): -16dBu / +24dBu.
S/N: 90dB.
THD+N: 0.01% (20Hz - 20kHz, +4dBu).
Crosstalk
-75dB @ 1kHz.
Mains Voltage
240 VAC, 50/60Hz, 10 Watts.
Unit
Construction: All Steel.
Size: 4.4cm x 48.3cm x 16cm.
Weight: 1.8kg.
* Note: 0 dBu = 0.775 Vrms
