This kit is designed ready for the user to install.

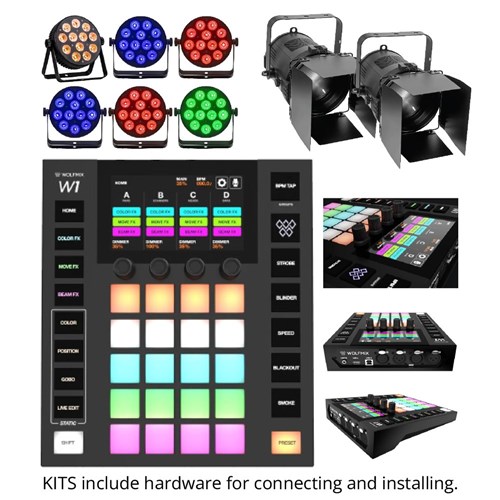

Kit includes 6 x LED Flat Par with 12 X 12W RGBWAU LEDs (PAR12X12L) , 2 x variable white fresnel lights and advanced control system. Clamps, patch power and data leads are included, main input lead required separately. Installation can be arranged at an extra cost.
ZEVINLIGHTPK3
ZEVINLIGHTPK3

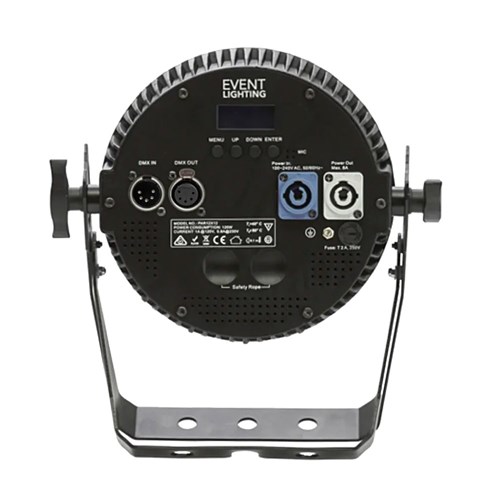

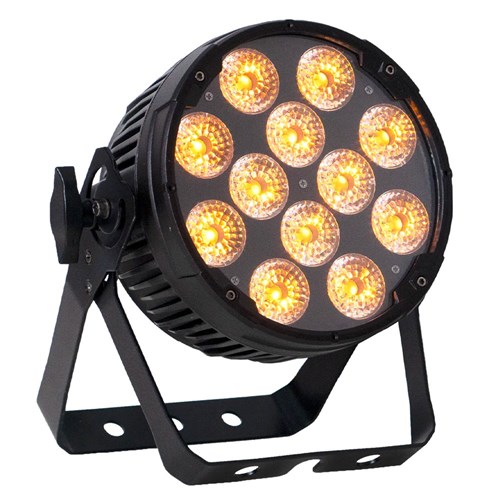

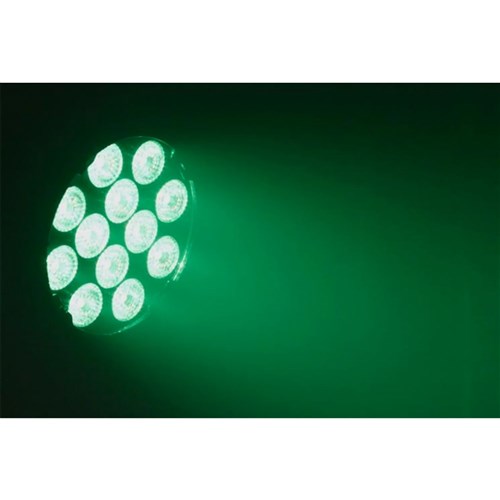

Specifications for the Lite Series LED Flat Par with 12 x 12W RGBWAU LEDs:
Photometric
- Light Source: 12x 12W RGBWAU 6-in-1 LEDs.
- Beam Angle: 40°.
- PWM: 2,000 Hz.
- LED Lifespan: 50,000hours.
Effects
- Dimming: 0~100%.
- Strobe: 1 - 20 Hz.
Power
- Input Voltage: 100~240V AC, 50/60Hz.
- Power Consumption: 60W.
- Connection: IEC in/out.
- IEC piggy back cable included.
Control
- Operation Modes: DMX, manual, auto, sound active, IR remote, master/slave.
- DMX channels: 6/11.
Housing
- Materials: Die-cast aluminium, matte black finish.
- Cooling: Fanless Cooling.
- Net weight: 1.85kg.
Specifications for the Variable Colour Fresnel with 2 x 100W Cool White / Warm White COB LEDs, 25-65° Manual Zoom,CCT/Dimmer Rotary Knobs, Aluminium Housing, Rotatable Barndoors Included, 3 Pin DMX In/Out and Powercon input:
Photometrics
- Light Source: 100Watt WW + 100W CW COB white LED
- Colour rendition: CRI 95, TLCI 97
- Beam angle: 25° – 65°
- Output:
-
- Warm white: 785lux @5m 25°
- Cool white: 1080lux @5m 25°
- Color temperature: 2,700K – 6,000K optional
- LED Lifespan: 50,000 hours
Effects
- Electronic dimming: 0 – 100%
- Strobe: Variable speed and action, random strobe
- Zoom: Manual Zoom 25°~65°
Power
- Power Supply: 100~240 V AC, 50/60 Hz, 100 W
- Power Connection: PowerCON in / out
Control
- Operational Modes: DMX, RDM, stand-alone
- Display: 4-button LED control panel
- Control Protocol: DMX512
- DMX Channels: 1 / 2 / 3 /5
- Control Interface: 3-pin XLR
- RDM compliance: ANSI/ESTA E1.20
- RDM function available for addressing and settings
Housing
- Housing Materials: Aluminium, matte black finish
- Cooling: Forced air (temperature-regulated, low noise)
- Net Weight: 3.6 kg
- Overall Size: 229 X 236 X 290mm
Specifications for the Wolfmix W1 MK2 Standalone performance DMX light control:
Display
- 4.3” Color TFT with tinted glass
- Capacitive touch
Encoders
- Full body alloy
- Incremental push with acceleration
Button pads
- 37 Silicone buttons with matt oil finishing
- LED color backlit
Processing
- 220Mhz CPU with ARM core
- 8MB RAM
- 16MB Flash
Audio
- Omnidirectional electret mic
- 3.5mm Jack Line-In
- Analog adaptive peak detector
DMX
- 2x 3pin DMX OUT XLR connectors
- 1x 5pin DMX OUT XLR connector
- 1x 5pin DMX IN/OUT XLR connector with WLINK
USB
- USB-A connector (MIDI / MSD)
- USB-B connector- 900ma required (USB3 rating)
- High-speed USB communication
Housing
- ABS Plastic
- Powder-coated steel base plate with 100mm VESA (M4 6mm max)
- Powder-coated steel reinforced back plate
Size & weight
- 195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in
- 1070g / 2.36lb
