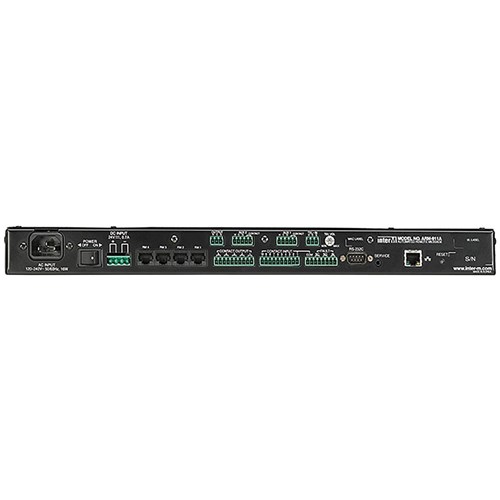

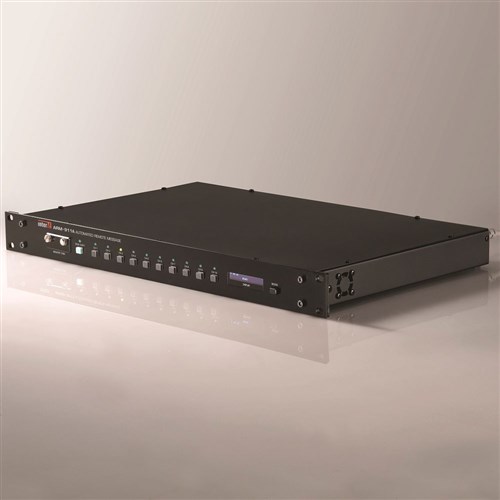

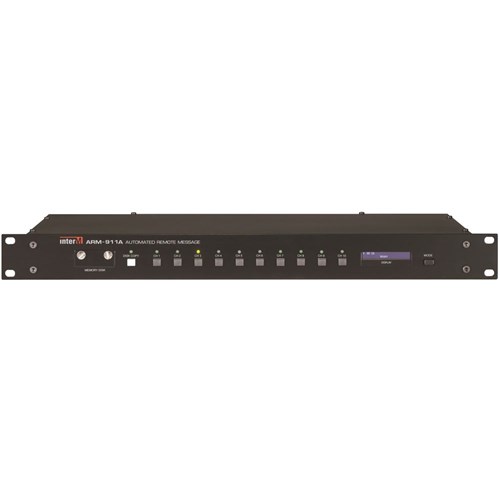

Inter-M Automated Remote Messaging & School Bell System

The ARM-911 Inter-M Automated Remote Messaging & School Bell System is a high performance highly versatile stand-alone system.

Perfect to easily initiate evacuation or lockdown procedures, each input is fitted with volume controls, high pass filter, equalizers and user programmable input priority settings. 2 auxiliary inputs allow connection to a cordless microphone, background music source or receiving audio from other emergency messaging devices such as fire alarm panels. Ten contact closure or alarm inputs make it possible to obtain external trigger and broadcast pre-programmed message from any remote devices. A built-in programmable timer allows for scheduled playback of any of the 10 recorded messages and other web-browser control panel up-loadable files.

Key Features:

• High fidelity scalable audio for excellent speech intelligibility. (MP3, WAV & WMA).
• Optically coupled 10 Contact Closure and RS232 for control and status.
• 10 message front panel start selections and status.
• Over 20 Minutes of audio storage capacity.
• Balanced audio output.
• SD Memory Playback (2GB).
• Timer scheduled playback.
• Rack mount (1U).

ZNAARM-911

• MPEG 1, Layer 3 (MP3) audio for scalable fidelity from voice (7 kHz) to CD (20 kHz) quality
• Balanced audio output (variable output with -56dB/600 Ohm mic level, -10 line and +4 DB selector)
• SD Memory Playback
• Redundant Flash memory, no battery backup required
• Non-Volatile SD Card memory
• Multi-message (4) sequencing capability
• Timer scheduled payback (can be used for electronic School bell or automated message playing)
• Crystal clear 16 bit MP3 audio quality
• Over 10 to 20 Minutes of audio storage capacity
• Up to 15 kHz bandwidth
• 10 message front panel start selections and status
• Optically Coupled 10 Contact Closure and RS232 for control and status
• Fault monitoring and alarm via 5v, reverse dc voltage with a line matching resistor at the EOL.
• Web browser Configuration
• Source Priority setup via GUI
• Source level, HPF and EQ adjust via GUI
• Output Level Adjust via GUI
• 24 DC Back up
• Max reboot time 30s
• Industrial grade all metal construction, shock and vibration resistant
