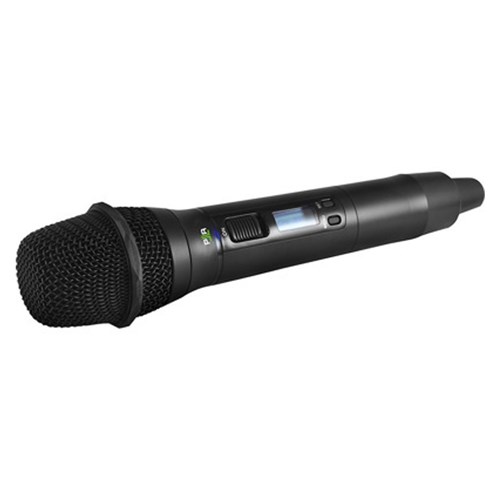

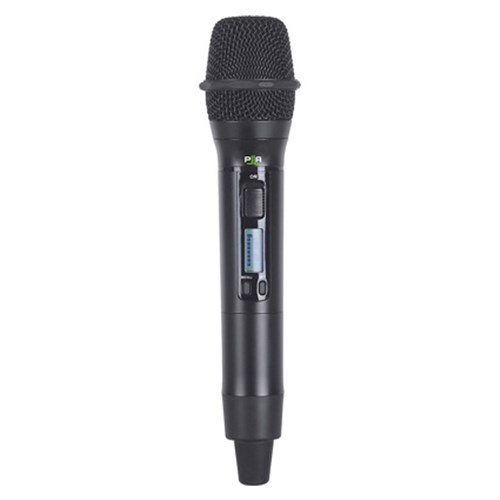

IrDA 100 Channel UHF Handheld Mic Transmitter with LCD 566MH

Handheld Wireless Transmitter, 566MHz

Features

• Multi-function LCD display for channel/frequency, battery level indicator, Alkaline/NiMH battery selection.
• Patented IrDA technology for 2-way data transfer between transmitter and receiver.
• Hidden antenna.
• Detachable microphone capsule design. Selection of either Dynamic or Condenser.
• Handling noise free with dynamic microphone capsule
• Rugged metallic housing design.
• Uses 2 x AA batteries to operate.
• Long operating hours – up to 16 hours.
• Matching battery charger: PA-HC2.

Specifications

• Frequency range: UHF 520-675MHz (3 available bands)
• Switching bandwidth: 25MHz
• Switchable frequency: 100
• 2-way synchronisation: Yes
• Spurious emission: > 60dB below carrier
• Dynamic range: > 110dB
• Display screen: LCD
• T.H.D.: < 0.5%
• Peak deviation: +/-40KHz
• Antenna: Built-in
• Battery type: AA x 2
• Operating life (Alkaline): 16 hrs
• Charging function: Yes
• Battery charger: HC2
• Microphone capsule: Dynamic (condenser type available)
• Dimensions (mm): 53 x 256
• Weight (g): 298

* NOTE: The above specifications are subject to change without prior notice.

** The output power may vary from country to country.
