Make video meetings simple to join with a network-connected touch controller.
DEPLOY ROOM SOLUTIONS WITH EASE
Transform collaboration spaces with Logitech Tap IP and leading video conferencing room solutions. Deliver one-touch join, easy content-sharing, and a seamless meeting experience across all rooms.
Just the Right Presence
With a spacious 10.1” display, low profile, and motion sensor for always-on readiness, Tap IP has a sleek and unobtrusive presence in the room.
Simple and Secure Cabling

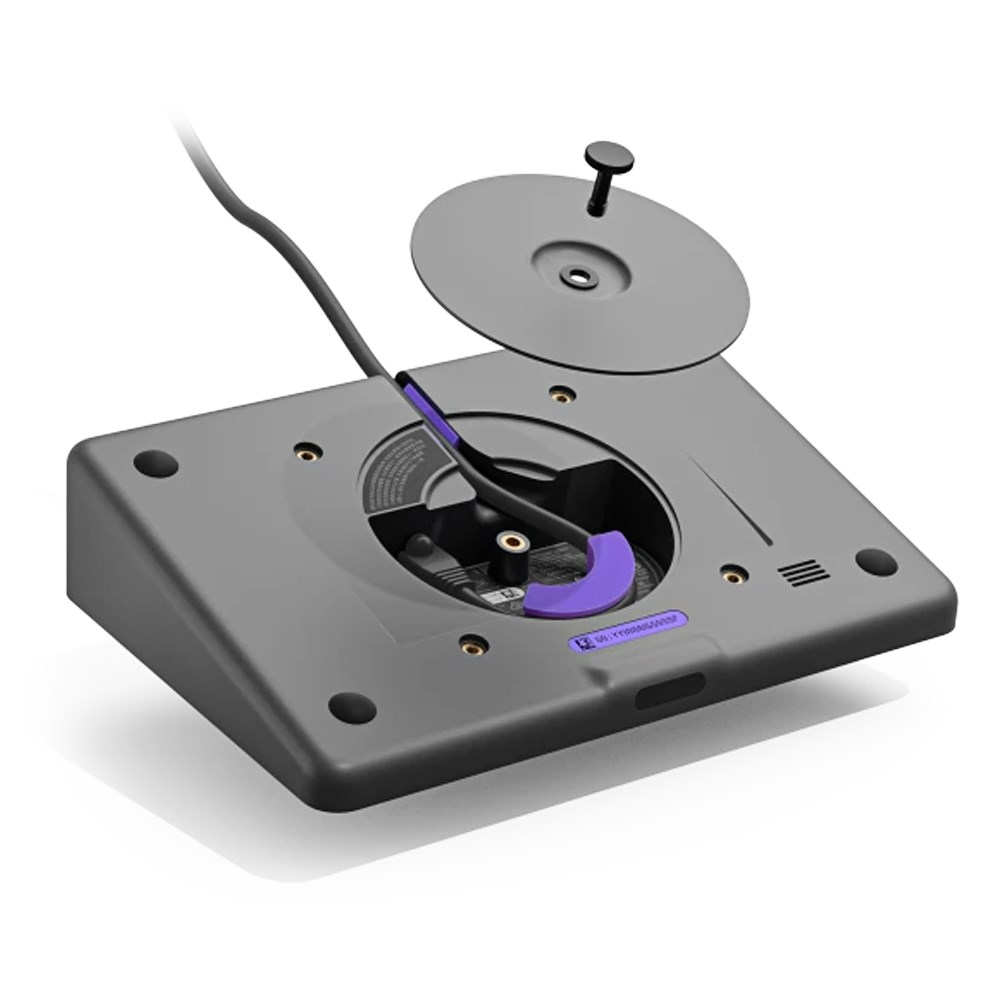

Streamline setup with a single cable that can be routed through the back or below the device. Keep connections tight with built-in strain relief and retention mechanisms.
Multiple Mounting Options
Install Tap IP almost anywhere in the room with Table and Riser Mounts that fit standard table grommets and rotate 180° for visibility and convenience. Or save table space in small rooms with the Wall Mount.
SINGLE CABLE SIMPLICITY
With a single Power over Ethernet cable, place Tap IP conveniently near room participants for a tidy and professional install.
PAIRS WELL WITH PARTNERS
Enable easy and effective meetings for onsite and remote workers. Tap IP and the Logitech suite of room solutions integrate with leading video conferencing services for a seamless meeting experience.
SIMPLE TO MANAGE WITH LOGITECH SYNC
With Logitech Sync, you can monitor and manage Tap IP along with your other meeting room devices from one single platform.
Room Solutions Compatibility
- Google Meet on Android
- Microsoft Teams Rooms on Android
- Zoom Rooms for Appliances
- Zoom Rooms for Mac
- Zoom Rooms for PC
Screen size
- 10.1” diagonal touch display
- 1280x800 pixels
Screen type
Capacitive Touch with Oleophobic Coating
Power
Power over Ethernet
Connectivity
Ethernet or Wi-Fi
Content-Sharing
Via Room System
Colours
Graphite, White
Motion sensor
Yes
Built-in cable retention and strain relief
Yes
Headphone jack
No
Compatible Accessories
Riser, Table, Wall Mounts
ZKO952000085
Dimensions
- Height: 56.1 mm
- Width: 246.2 mm
- Depth: 171.3 mm
- Weight: 1 kg
Screen
- Size: 10.1” diagonal
- IPS (In-Plane Switching)
- LCD Panel with LED Backlighting
- Resolution: 1280 x 800 resolution
- Touch: Capacitive, 10 points multi-touch
- Brightness: 400 nits
- Contrast: 1000:1
- Anti Fingerprint: Oleophobic coating
- Viewing angle: 85 degrees (U/D/L/R)
- Position angle: 14 degrees
General Specifications
- Integrated ultrasonic speaker
- Integrated PIR Motion Sensor
- Integrated accelerometer
- Integrated ambient light sensor

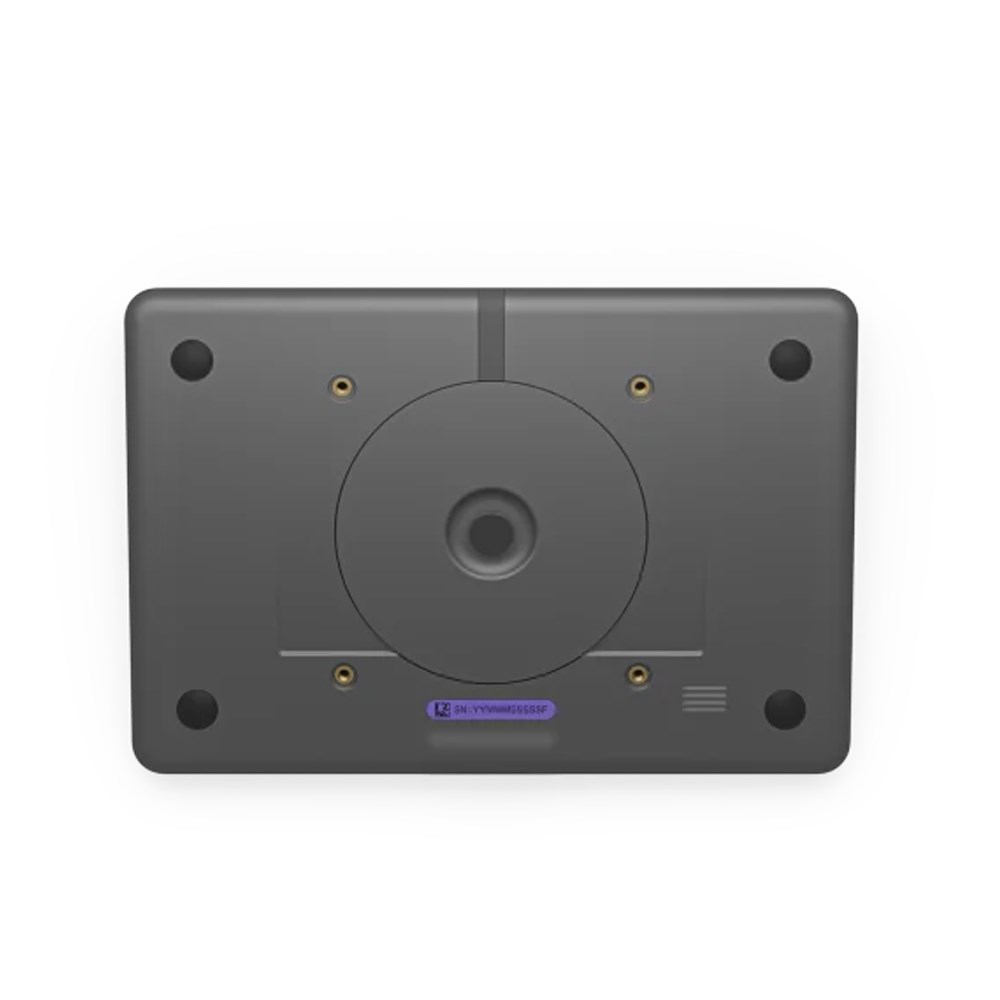

- 100 mm x 100 mm VESA FDMI
- Internal cable retention and strain relief system
Power and Cables
Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device. 2Requires PoE enabled network or PoE Injector and ethernet cable (Not included)
PORTS AND INTERFACES
- Ethernet: 10/100 Mbps
- WiFi: 802.11a/b/g/n/ac
- Bluetooth 5.0
Environmental
- Operating Temperature: 0 to 40°C
- Stored Temperature: -40 to 70°C
- Humidity: 10 to 95%
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Key Protection: Arm TrustZone, RPMP
- Device Security: Kensington Lock
Sustainability
Graphite plastics: 56% post-consumer recycled material
Warranty Information
2 - Year Warranty
