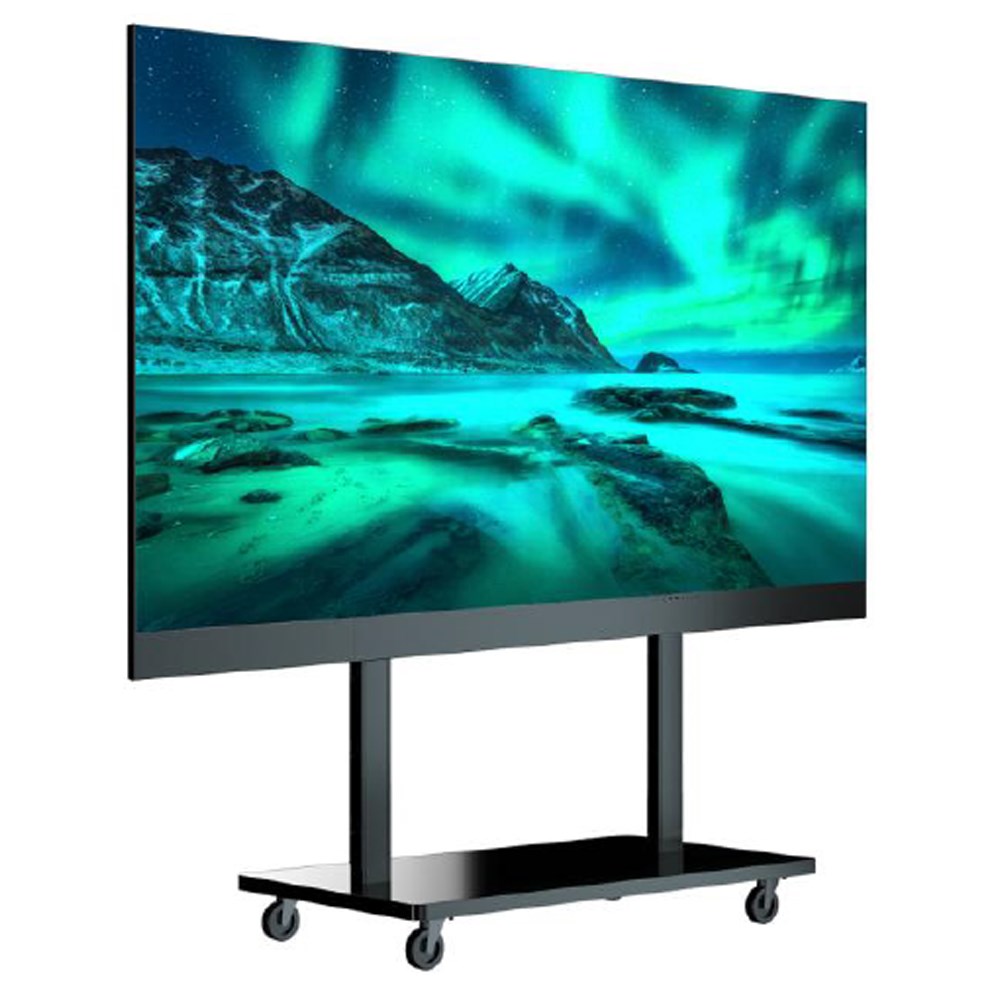

The Maxhub 110" Foldable LED is a fully integrated, foldable, installation-free commercial LED display. With a built-in control system, HDMI input, and wireless screen mirroring, it delivers instant and versatile visual performance. The unit is designed for effortless mobility—fitting into elevators and office spaces without disassembly—making it ideal for dynamic environments such as classrooms, meeting rooms, exhibition halls, training facilities, hotels, banks, airports, command centers, and retail spaces.
Key Features:
- Foldable, Installation-Free Design – Quick setup, effortless transport, and immediate use.
- Durable Construction – Protective packaging with waterproof sealing ensures longevity.
- Seamless Mobility – Direct elevator access and office entry with no disassembly required.
- Flexible Positioning – Electrically or manually adjustable height to suit various viewing angles.
- Front-Maintainable Modules – Easy installation and servicing for maximum efficiency.
- Versatile Connectivity – HDMI, USB, and wireless screen mirroring for PC, mobile, and tablets.
- Remote Operation – Full control via remote, plus 8-level brightness adjustment.
- Space-Saving Mobility – Equipped with wheels for easy movement and storage.
- Wide Viewing Angle – Optimized for visibility across different environments.

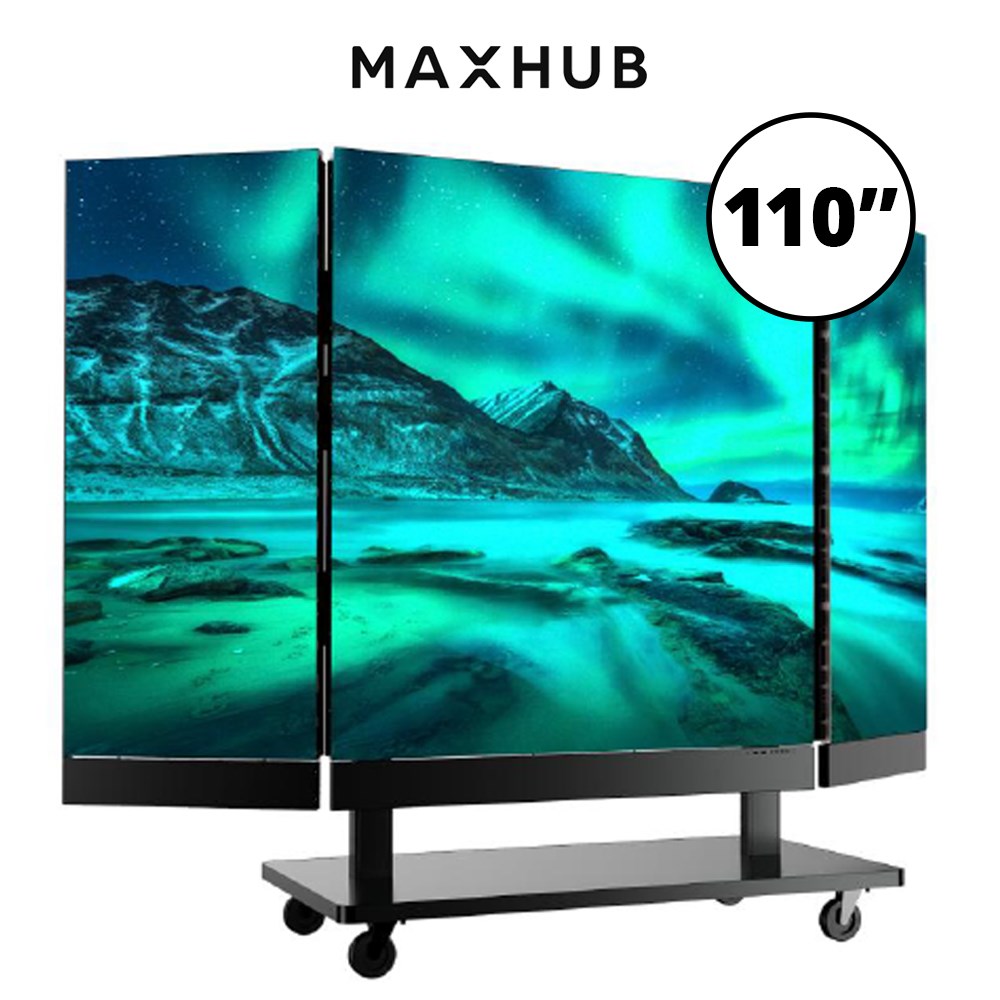

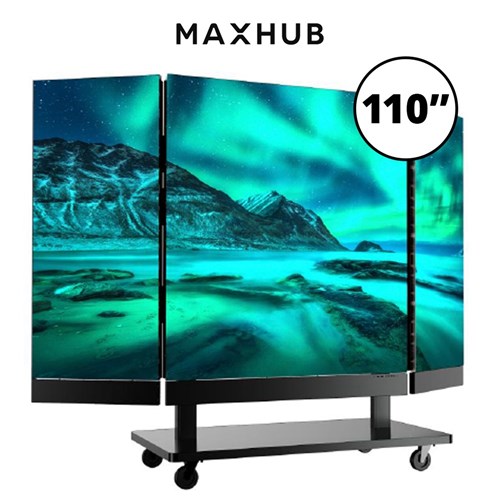

The Maxhub 110" Foldable Installation-Free display is primarily composed of LED display screen modules, a set of base mounting components, and a control box. The 110-inch variant consists of 16 display screen modules.
ZMXGM2712
Product Features:
- TOP 2210 LED and GOB for better protection.
- Foldable transportation, electric lift, easy installation, Easy transportation from elevator to office, plug-and-play operation.
- All-in-One with slim body and light weight modular design to save your space and make your boardroom brilliant.
- Initiate three-in-one integrated design of power supply, bridge board and receiving card to reduce electromagnetic interference.
- Ultra-large viewing angle plus 8 brightness levels, easy to adjust brightness according to the environments.
- Remote control with interfaces adapting USB, HDMI and etc.
- Integrated with external device, wireless screen transmission via PC, mobile phone and tablet, instant interaction at any moment.
Display Parameter
- Size: 110 inch
- Pixel Pitch: 1.2mm
- Ratio: 16:9
- Resolution: 1920×1080
- Module Size (width*height): 152.5×343mm
- Cabinet Size (width*height*thickness): 610×343×31mm
- Cabinet Qty: 4x4
- Overall Dimension (width*height): 2446×1430mm
- Display area (width*height): 2440×1372mm
- Unfolded Terminal Size (width*height*thickness): 2453×2318×760mm
- Folded Terminal Size (width*height*thickness): 1360×1817×760mm
- Terminal Height: 1817~2317mm Adjustable
- Weight: 210kg
- Suggested Viewing Distance: ≥2m
- Maintenance: Front & Rear Maintenance
- Installation Method: Foot mounting
System Parameter
- Operating System Android: 9.0
- CPU: 2 x Cortex-A72 + 4 x Cortex-A53, 2.0GHz
- RAM: 4GB
- Storage: 32GB
- Media Format: Support MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, FLV and other mainstream video formats; Support MP3 and other audio formats; Support JPG, JPEG, BMP, PNG, and GIF image formats
Optical Parameter
- Brightness: 550nit
- Refresh Rate: 3840Hz
- Gray Scale: 14bit
- Contrast : 6500:1
- CCT: 6500-9300K
- Viewing Angle: Horizontal 170°, Vertical 170°
- LED Lifespan: ≥100,000h
Electrical Parameter
- Input Voltage: 100-240VAC 50/60Hz
- Average Consumption: 0.44KW
- Maximum Consumption: 1.31KW
Environmental Parameter
- Ambient Temperature: -10℃-40℃
- Humidity: 10%~80%RH No condensation
Note:
1. The content of this specification may be adjusted and revised in real time without prior notice to provide as accurate specification parameters as possible
2. This product is an indoor product. It is strictly prohibited to use it in direct sunlight
3. In order to ensure long-term and more uniform display effect, do not play fixed images for a long time
