Infinium Auracast Controller & Transmitter

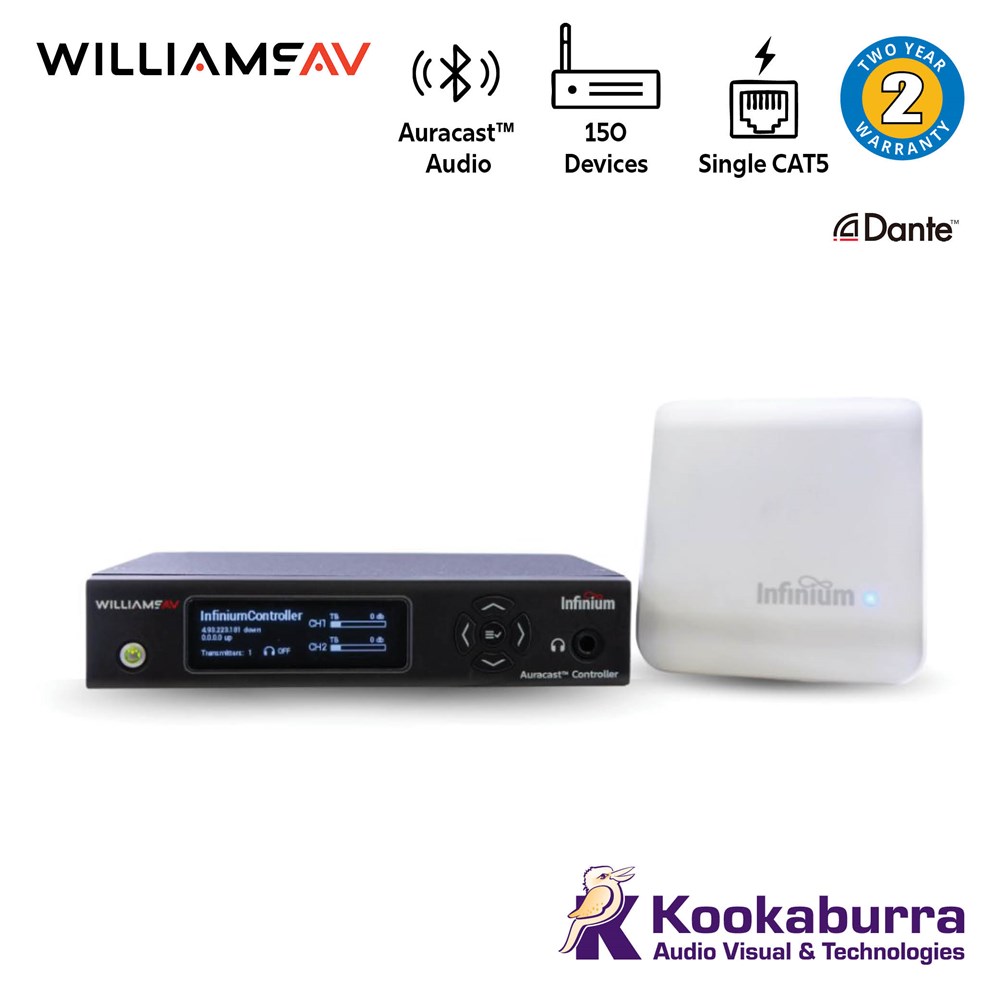

Infinium™ CT1 Controller & Transmitter – Auracast™ Broadcast Audio System

Engineered for professional AV environments, the Infinium™ CT1 is a high-performance Bluetooth® Auracast™ broadcast solution that delivers ultra-low latency, high-fidelity audio to unlimited devices – including hearing aids, cochlear implants, headphones, and Infinium™ receivers.

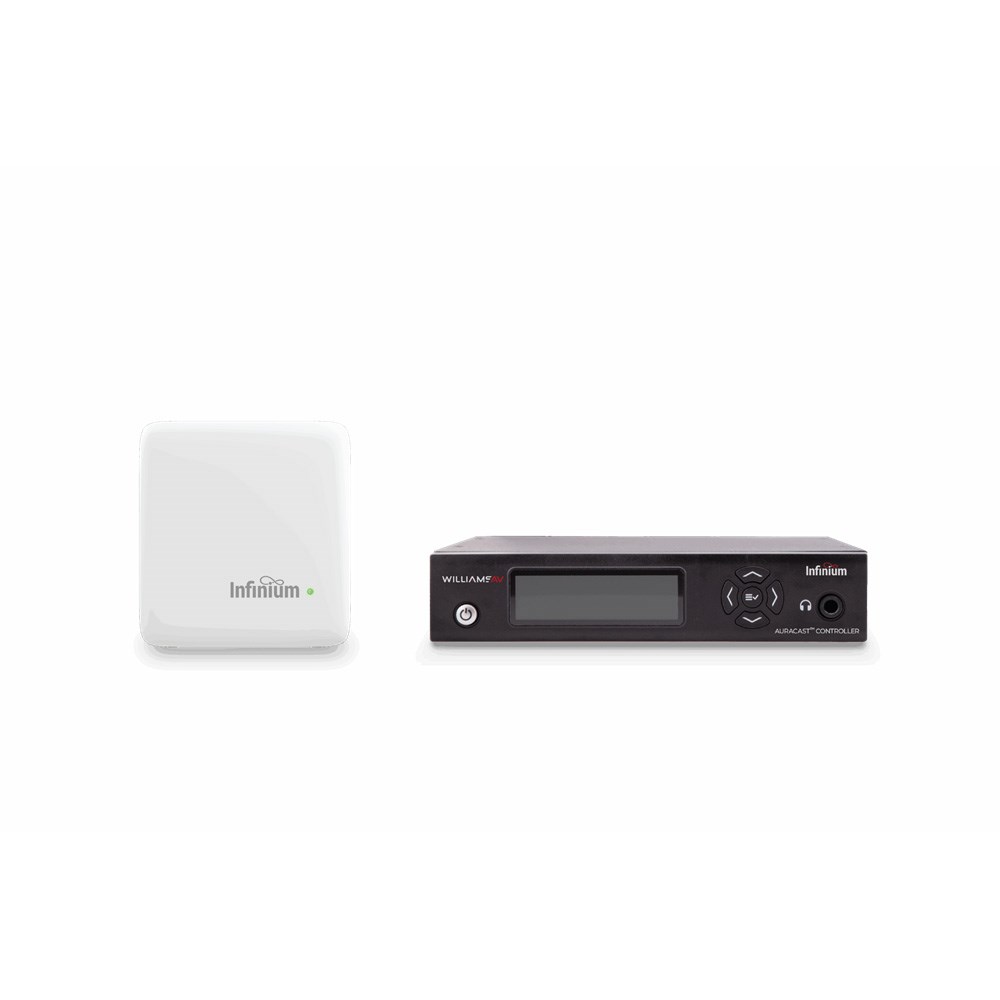

Ideal for lecture theatres, transport terminals, performance spaces, and other large venue applications, the CT1 offers a modular design with a discreet transmitter and a rack-mountable controller, making it easy to deploy in even the most complex AV setups.

Key Features

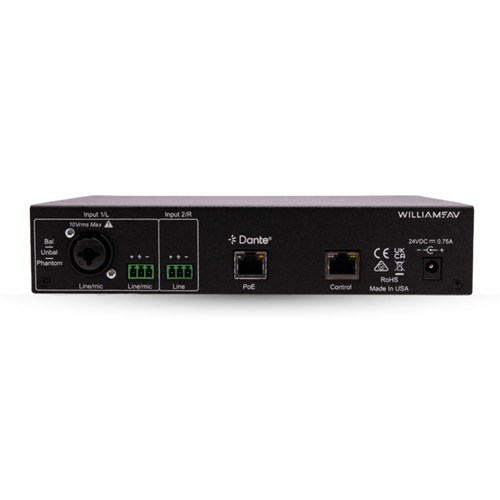

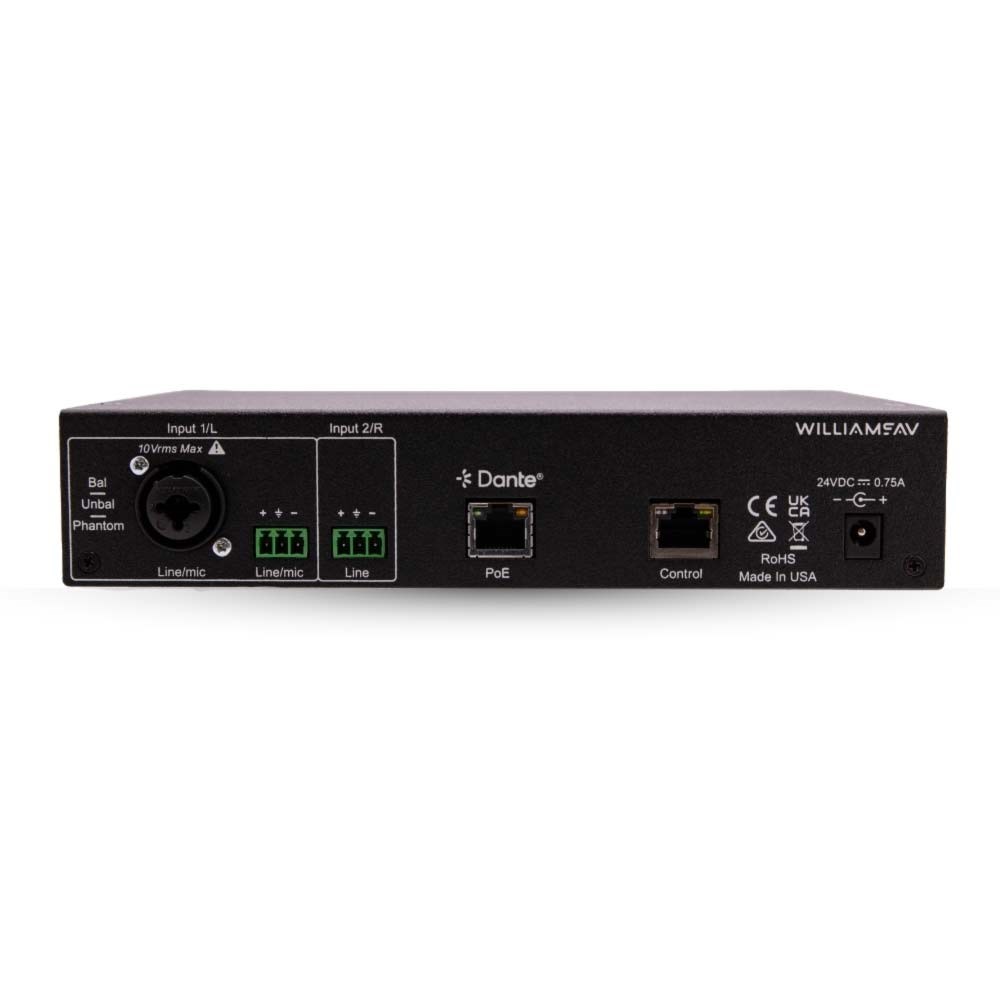

• Professional AV Integration – Rack-ready controller with both analogue and Dante® inputs. Configure and manage via the front panel or remotely via web browser.

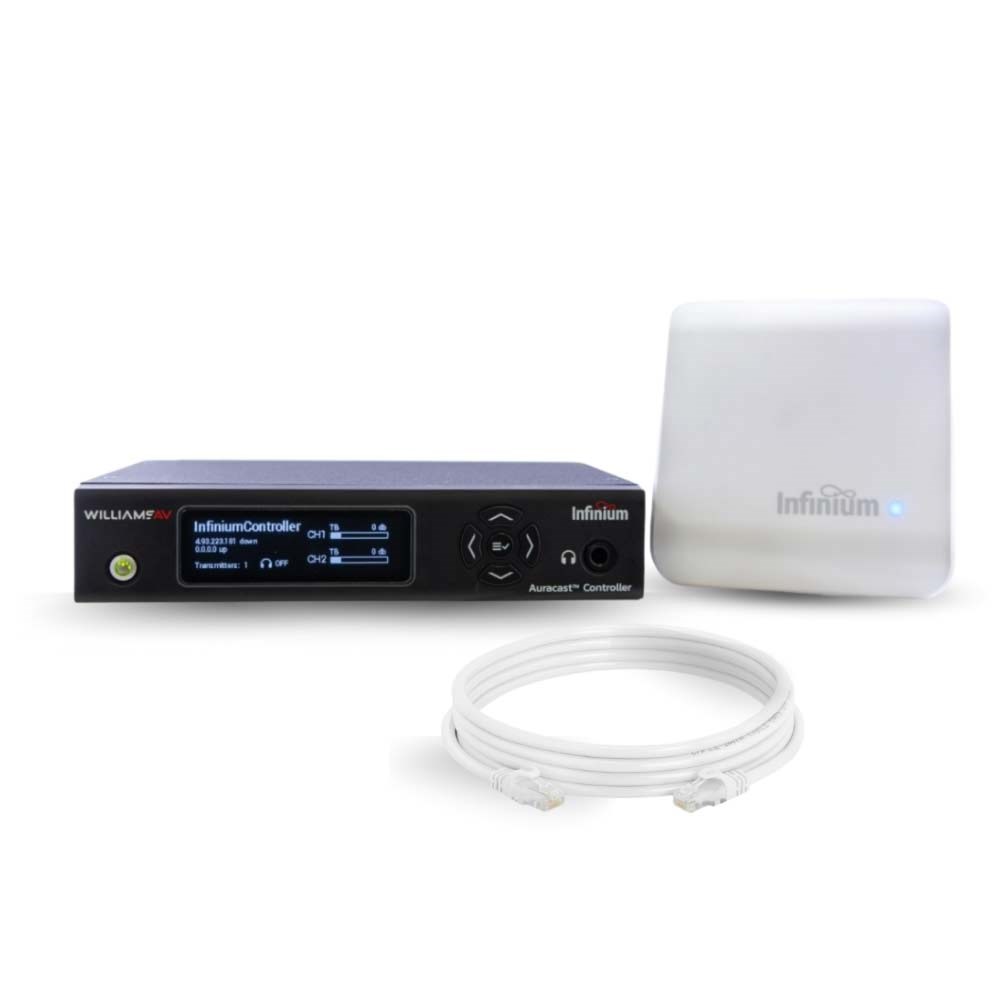

• Simplified Transmitter Setup – Power and audio over a single CAT cable for fast, tidy installation. Provides omnidirectional coverage up to 100 metres.
• Auracast™ Compatible – Broadcasts directly to Auracast-enabled devices or dedicated Infinium™ receivers, making it accessible for everyone.
• Remote Audio Monitoring – Listen outside the transmission zone for confidence monitoring and system checks.
• Flexible System Architecture – Modular design allows easy placement of components to suit various site requirements.

Designed For

• Universities & Lecture Theatres
• Airports & Public Transport Hubs
• Cinemas & Live Event Venues
• Health & Fitness Facilities

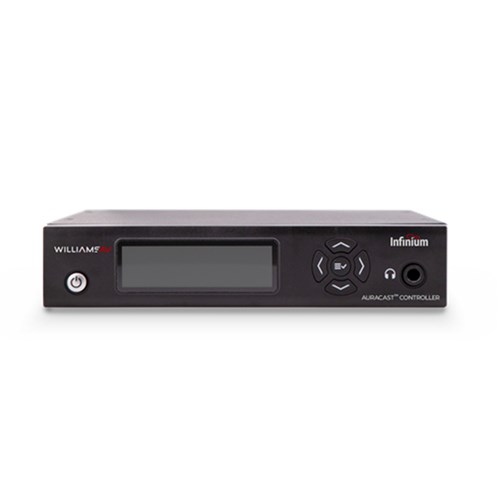

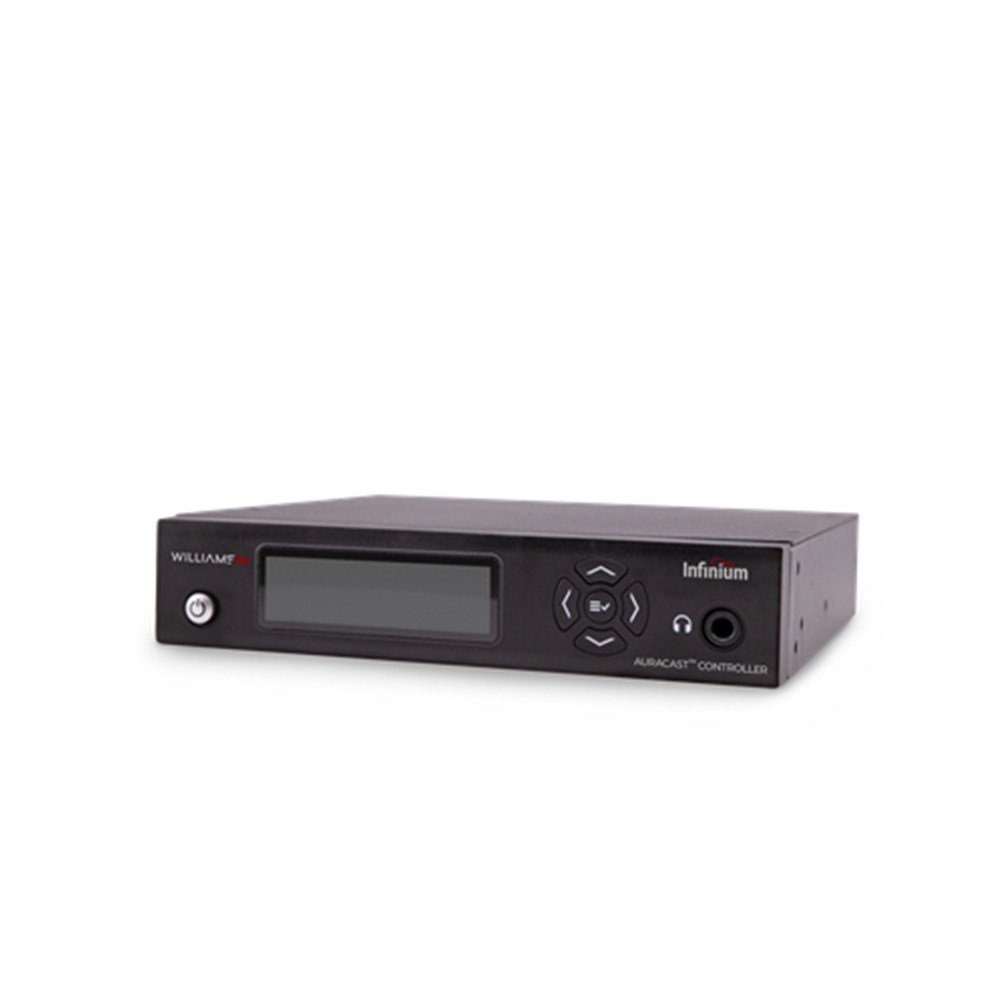

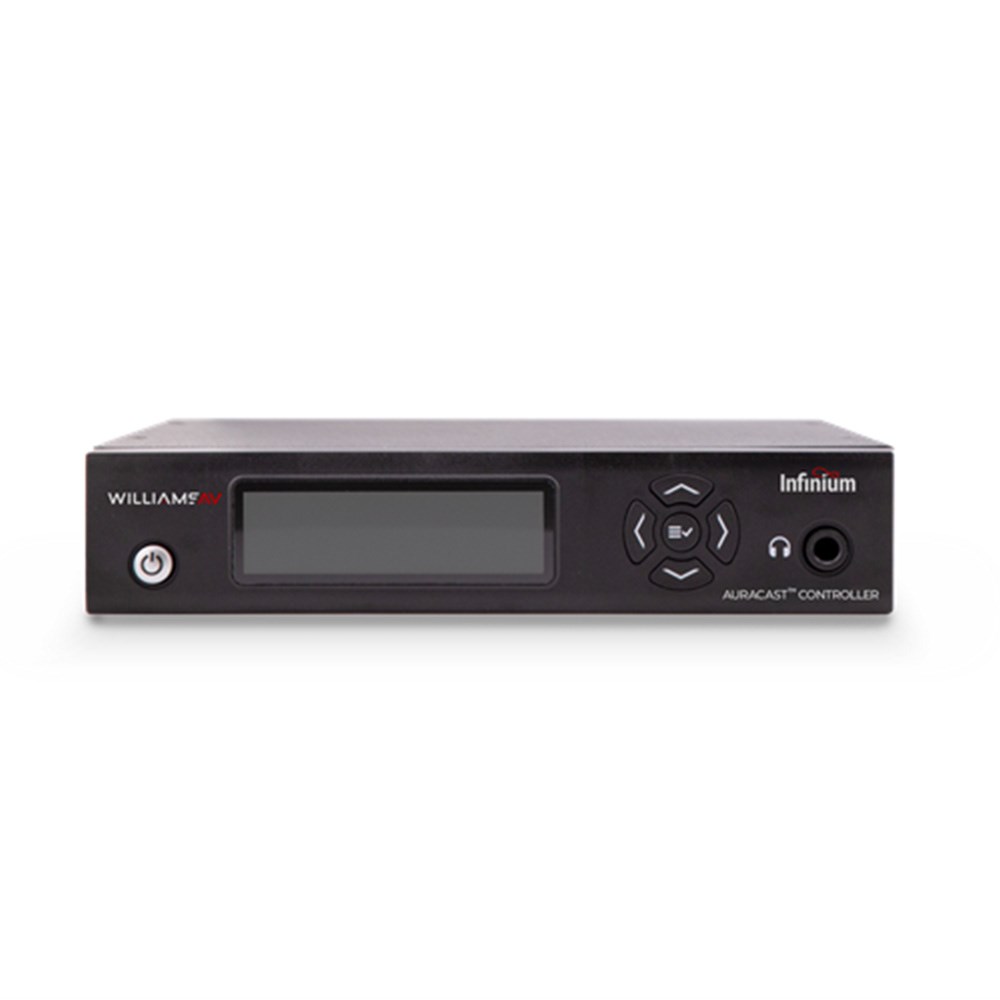

Controller

• Dimensions: 21.5 cm x 14.6 cm x 4.4 cm
• Weight: 1.04 kg
• Colour: Black
• Installation Configurations: Rack Mount: Standard 19” Rack, one EIA rack space high, 1/2 space wide
• 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
• Shelf: Can sit on shelf, table, podium, etc.
• Temperature Range – Operating: 0° C to 50° C
• Temperature Range – Storage: -20° C to 70° C
• Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
• Power Button: Push On/Push Off latching power button.
• Ethernet Control Port: (1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T

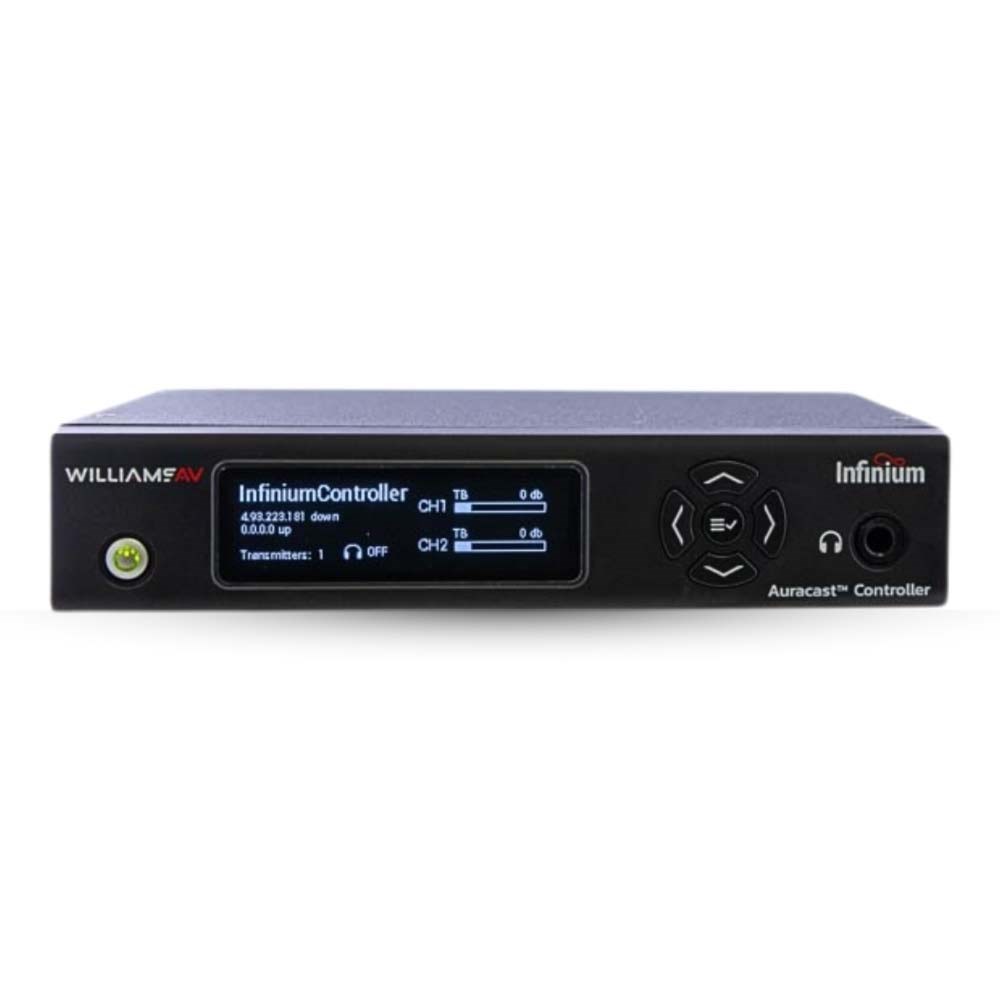

• Front Panel Display: 3.12” High Resolution OLED Direct Entry UI with button entry programming and status indicator selections.
• Dante: (1x) RJ-45 jack.
• Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
• PoE Power Out: PoE
• Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE,  UKCA, RCM, CB Scheme
• Warranty: 2-year parts and labor

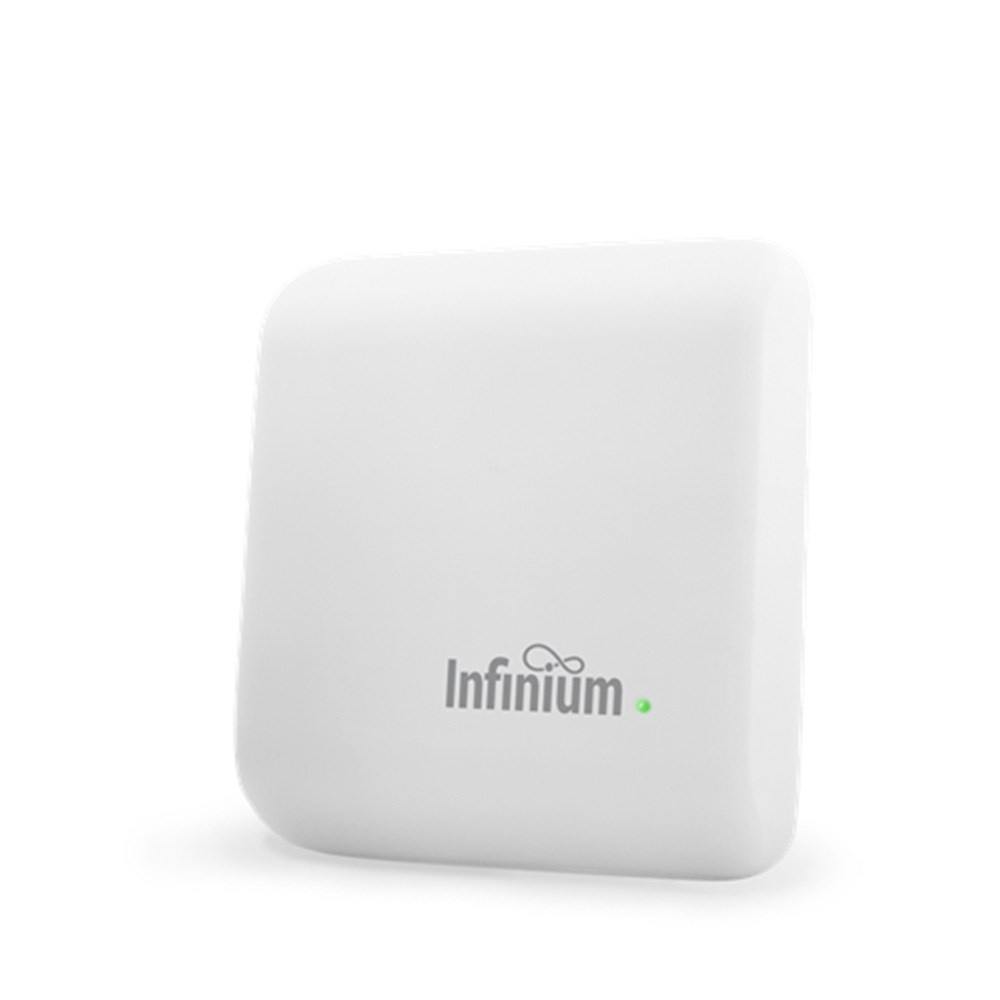

Transmitter

• Dimensions: 11.9 cm x 12.7 cm x 3 cm
• Weight: 0.18 kg
• Colour: White
• Installation Configurations: Ceiling Mount, Wall Mount, Shelf
• Temperature Range – Operating: 0° C to 50° C
• Temperature Range – Storage: -20° C to 70° C
• Power: PoE (Input)
• Connection: RJ45 (1x) with audio, control and PoE
• Power ON Indicator: Programmable LED
• Transmitter Power Output: Programmable
• Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE,  UKCA, RCM, CB Scheme, Gitecki (Japan)
• Warranty: 2-year parts and labor

• Ethernet Cable: 10′ – CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant
