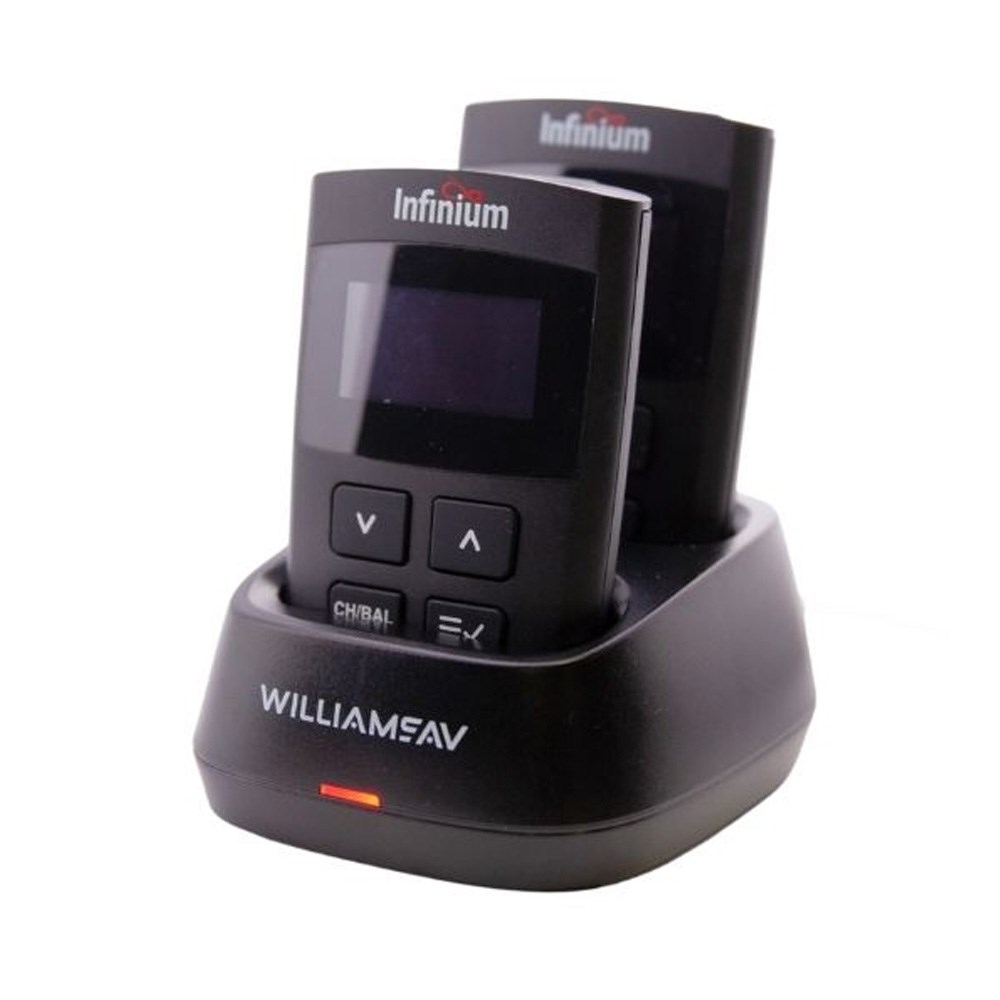

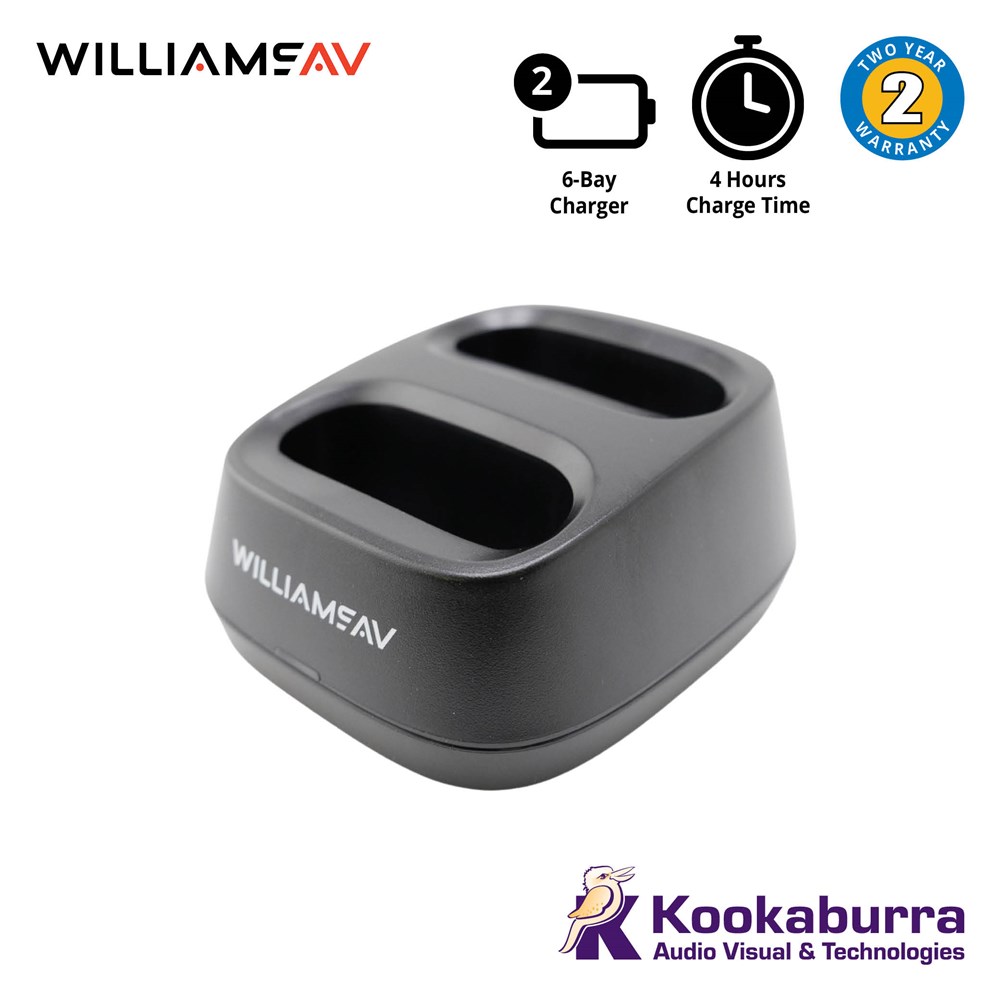

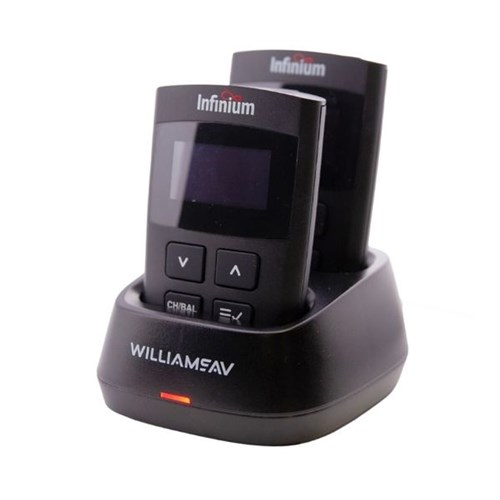

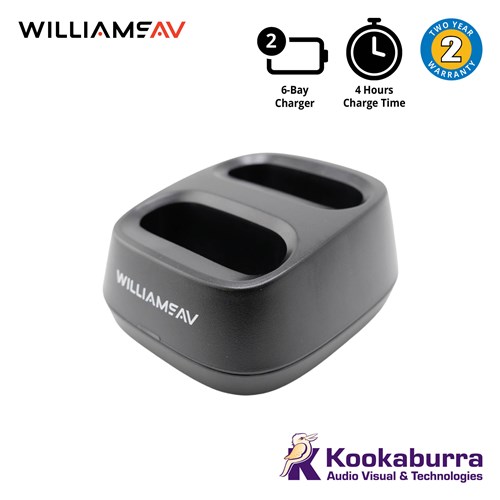

Infinium 2-Bay R1 Charger CHG003

A 2-bay drop-in charger designed for convenient charging of Infinium® Auracast™ receivers.

Note: Infinium receivers sold separately.

Battery Safety Caution.
Do not attempt to open, disassemble, or service the battery pack. Do not crush, puncture, short contacts or dispose of in fire or water. Do not incinerate or expose to temperatures above 140ºF (60ºC). Do not charge in temperatures above 114ºF (40ºC) or below 41ºF (5ºC). If the receiver or battery swells, discontinue use immediately. Replace only with a battery pack designated for this product. Recycle or dispose of properly.

Important Charging Instructions

• Charge receivers using only the Williams AV approved chargers (CHG 003 or CHG 004). Failure to do so may void the warranty.
• Disconnect the receivers from the charger once they are fully charged.
• Do not leave the receiver unused for extended periods. If the receiver is not in regular use, store at around 50% charge level.

• Dimensions: 106 mm L x 90.2 mm W x 48mm H
• Item Weight: 127 g
• Shipping Weigh: 380 g
• Enclosure: Black, PC/ABS plastic
• Charger Power: Input: 5 VDC, 1.0 A | Output: 5VDC, 0.5A per bay

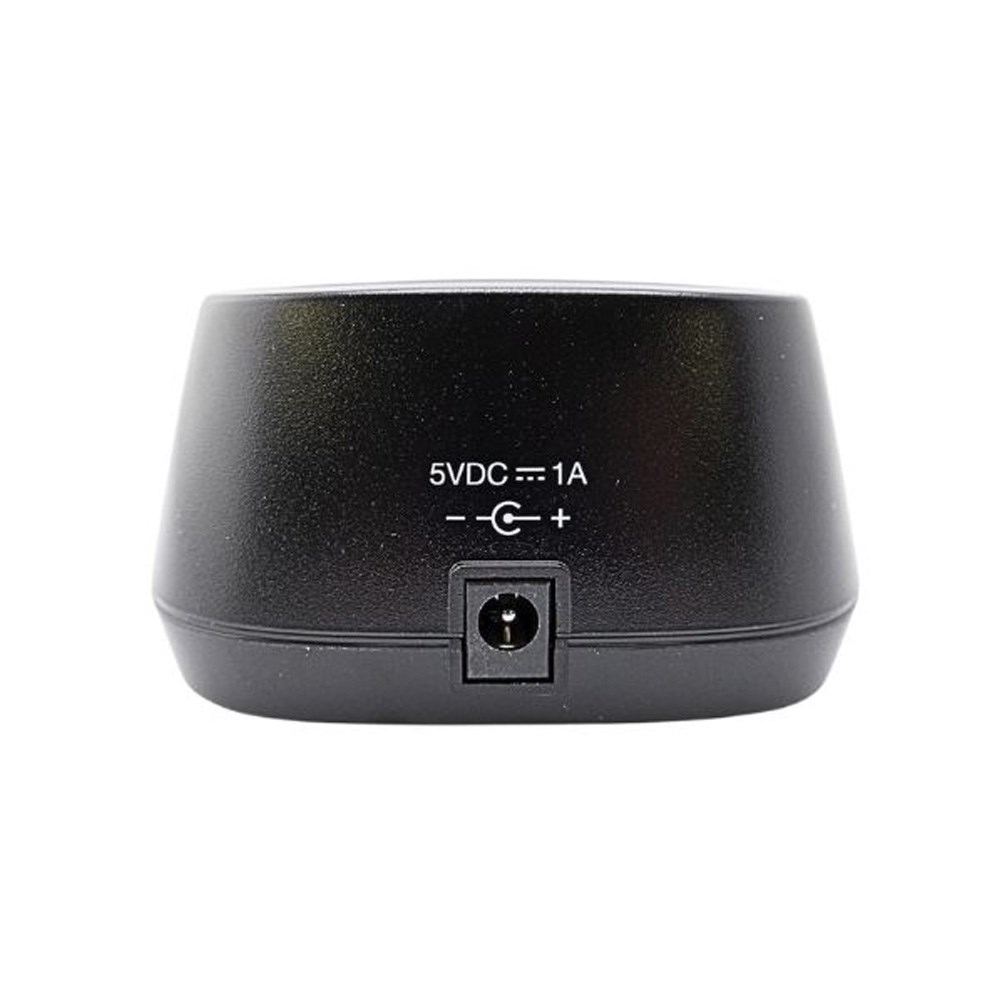

• Charger Input Connector: DC barrel jack, 2.1 mm pin diameter, center positive

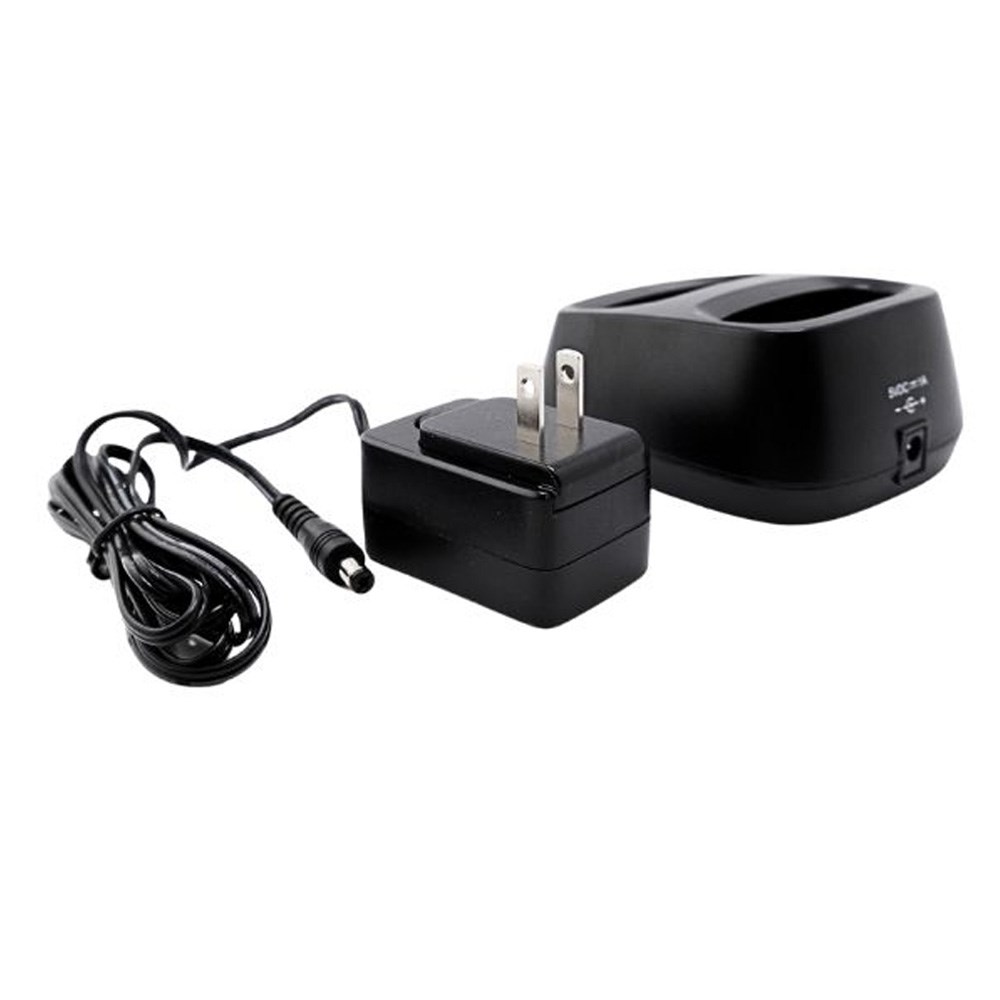

• Power Supply: TFP 075, Output: 5 VDC, 2.0A
• Power Supply Input: 100-240 VAC, 50-60Hz, 0.4 A
• Charging Time: 4 hours nominal
• Unit Capacity: 2 units
• Compatible Units: Infinium BA R1 Receivers
• Indicators: Red LED (1) – Charger is plugged into power.
• Approvals: CE, UKCA, RCM, RoHS
• Warranty: 2-year (cables and power supply warranty for 90 days)
