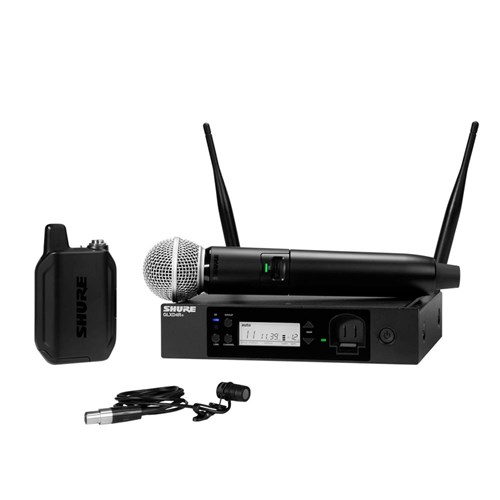

Shure Wireless Dig Combo System GLXD1+ 85/SM58 Mic

Product Code: GLXD124RPLUS85

Share this product
Unit Description
Each
Usually Ships 5-7 Days
Login for School Account Pricing

$2099.00 inc GST
Increase value Decrease value
Quantity in cart:
Qty Each Save %
  • Description
  • Specifications
  • Contents
  • Videos
  • Contact Us

The new GLX-D+ Dual Band Wireless Combo System. Ready-To-Go. Every time. Automatically.

The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use.

Featuring the industry standard SM58® microphone handheld, the premium WL185 lavalier microphone, and the half-rack GLXD4R+, the new GLX-D+ Dual Band Wireless Combo System is tailored to deliver maximum flexibility for installed applications.

The new GLXD4+ Dual Band Rack Receiver delivers exceptional digital audio clarity. In combination with the new GLXD+ Dual Band Frequency Manager provides seamless operation with advanced RF performance for up to 16 simultaneous channels.

Go wireless without complication!

The SM58 Dymanic Vocal Microphone:

  • Frequency response tailored for vocals, with brightened midrange and bass rolloff
  • Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
  • Pneumatic shock-mount system cuts down handling noise
  • Effective, built-in spherical wind and pop filter
  • Supplied with break-resistant stand adapter which rotates 180 degrees
  • Legendary Shure quality, ruggedness and reliability
  • Cardioid (unidirectional) dynamic
  • Frequency response: 50 to 15,000 Hz

What is the SM58 best suited to?
It’s an ideal choice for a professional vocal artist in any live performance setting. It is tuned to accentuate the warmth and clarity of lead and backing vocals. Even in extreme conditions, the SM58 is tailored to target the main sound source while minimizing background noise. It is also very popular with djs and presenters in clubs and in small and large live venues.

Can it withstand the rigours of touring?
Durable construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

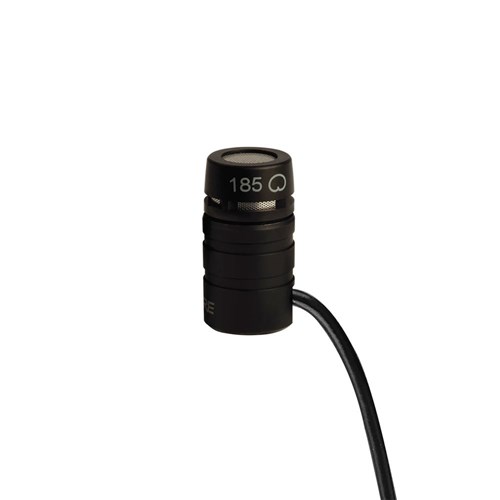

The WL185 Lavalier Microphone:

  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges that provide an optimal choice for each application
  • Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
  • Supplied snap-fit foam windscreen that controls breath noise and stays on securely
  • Supplied dual tie clip holds two microphones for dual miking applications

What is the WL185 best suited to?
The WL185 cardioid miniature lavalier condenser microphone is designed for use in speech applications such as broadcast presenting, speeches, lectures and for use in houses of worship.

What is an interchangeable cartridge?
All the microflex series of microphones use interchangeable cartridges (sold seperately) which means you can swap between cardioid, supercardioid and omnidirectional condenser cartridges simply by screwing them on to the top of the lavalier mic.


ZJNGLXD124RPLU85

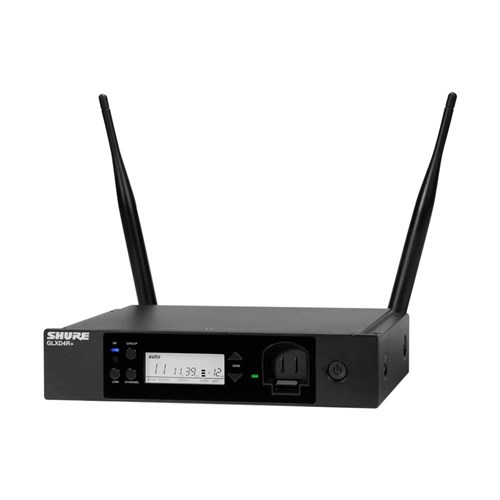

GLXD4+ Dual Band Rack Receiver Specifications

TUNING BANDWIDTH

  • Z2: 2400 - 2483.5 MHz
  • Z3: 2400 - 2483.5 MHz and 5725 - 5850 MHz
  • Z4: 2400 - 2483.5 MHz and 5725 - 5875 MHz
  • Z5: 2400 - 2483.5 MHz and 5725 - 5825 MHzDependent on frequency band

TRANSMIT MODE

  • Shure proprietary digital

RF OUTPUT POWER

  • 10 mW E.I.R.P. maximum

AMBIENT TEMPERATURE RANGE

  • Charging: 0°C to 40°C
  • Operating: 0°C to 45°C

POLARITY

  • Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low­impedance output) and the tip of the high impedance 1/4-inch output.

AUDIO FREQUENCY RESPONSE

  • 20 Hz – 20 kHz

DYNAMIC RANGE

  • 120 dB, A-weighted

RF SENSITIVITY

  • -88 dBm, typical

TOTAL HARMONIC DISTORTION

  • 0.07%, typical

BATTERY LIFE

  • Up to 11.5 hours

CHANNEL COUNT

  • Without Frequency Manager: Up to 4 typical, 8 optimal, 2.4 GHz only: Up to 4 typical, 5 optimal
  • With Frequency Manager    Up to 11 typical, 16 optimal, 2.4 GHz only: Up to 9 typical, 11 optimal

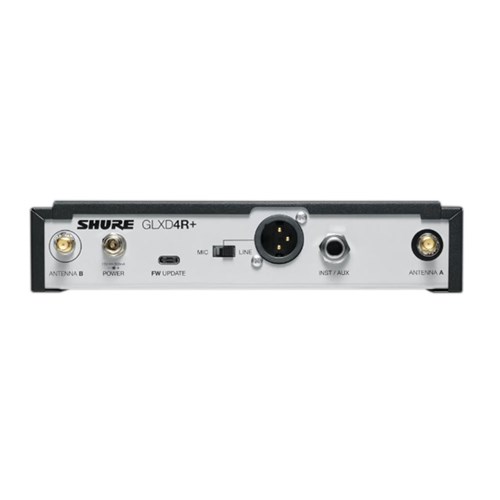

GLXD4R+
POWER REQUIREMENTS

  • 14.5 V – 17 V, 600 mA (efficiency level VI power supply)

ANTENNA TYPE

  • Dual-band ½ Wave Sleeve Dipole

DIMENSIONS

  • Without antenna: 196.8H x 162.97W x 41.8D (mm)
  • Weight: 866g

HOUSING

  • Steel

SPURIOUS REJECTION

  • > 35 dB, typical

GAIN ADJUSTMENT RANGE

  • -18 to 42 dB, 1 dB increments

PHANTOM POWER PROTECTION

  • Yes

AUDIO OUTPUT:

Configuration

  • XLR Output: Balanced
  • 6.35 mm (1/4") output: Impedance balanced

Impedance

  • XLR Output: 100 Ω
  • 6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)

Full Scale Output

  • 6.35 mm (1/4"): +12 dBV
  • XLR: LINE setting = +18 dBV, MIC setting = -12 dBV

Mic/Line Switch

  • 30 dB pad

Pin Assignments

  • XLR Output: 1=ground, 2=hot, 3=cold
  • 6.35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground

RECEIVER ANTENNA INPUT:

Impedance

50 Ω

Maximum Input Level

-20 dBm

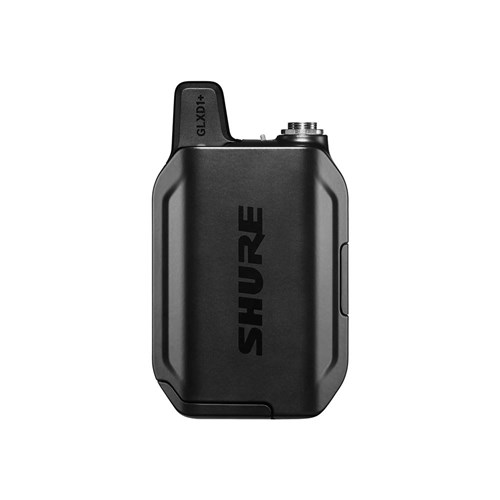

GLXD1+
POWER REQUIREMENTS

  • Shure Rechargeable Li-Ion Battery: SB904
  • USB Power Supply (US/Canada): SBC10-USB15WSUSTWJ

ANTENNA TYPE

  • Dual-band Internal Monopole

DIMENSIONS

  • 115H x 66.94W x 28.51D (mm)

WEIGHT

  • Without battery: 153.1g

HOUSING

  • Aluminum alloy, ABS plastic

INPUT IMPEDANCE

900 kΩ

TX INPUT:

Connector

  • 4-pin male mini connector (TA4M)

Maximum Input Level

  • +8.4 dBV (7.5 Vp-p)

Configuration

  • Unbalanced

Pin Assignments

  • 1: Ground (cable shield)
  • 2: + 5 V bias
  • 3: Audio
  • 4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)

GLXD2+
POWER REQUIREMENTS

  • Shure Rechargeable Li-Ion Battery: SB904

DIMENSIONS

  • 246 mm

WEIGHT

  • SM58: 275g (without battery)
  • BETA 58: 225g (without battery)
  • BETA 87A: 265g (without battery)

HOUSING

  • Aluminum alloy, ABS plastic

MAXIMUM INPUT LEVEL

  • SM58: 146 dB SPL
  • BETA 58: 147 dB SPL
  • BETA 87A: 147 dB SPL

SB904
BATTERY TYPE

  • Rechargeable Li-Ion

NOMINAL CAPACITY

  • 2420 mAh (8.71 Wh)

NOMINAL VOLTAGE

  • 3.6 V

DIMENSIONS

  • 72.8H x 20.96W x 20.80D (mm)

WEIGHT

  • 53.7g

HOUSING

  • PC/ABS

AMBIENT TEMPERATURE RANGE

  • Charging: 0°C to 40°C
  • Operating: -18 °C to 45 °C

SBC10-904
DC Input Voltage

  • 5 V

AMBIENT TEMPERATURE RANGE

  • Operating: 0°C (32°F) to 40°C (104°F)

SBC10-USB15W Power Supply
INPUT VOLTAGE RANGE

  • 100 to 240 V AC

MAXIMUM INPUT POWER

  • 600 mA @ 100 V AC (full load)

OUTPUT VOLTAGE

  • 5 v DC @ 3 A

MAXIMUM OUTPUT POWER

  • 15 W

SBC10-USB Power Supply
INPUT VOLTAGE RANGE

  • 100 to 240 V AC

MAXIMUM INPUT POWER

  • 200 mA @ 100 V AC (full load)

OUTPUT VOLTAGE

  • 5 v DC @ 1 A

MAXIMUM OUTPUT POWER

  • 5 W
  • 1x GLXD4+ Dual Band Rack Receiver
  • 1x SM58® Microphone Handheld
  • 1x WL185 Lavalier Microphone
  • 1x PS43 Power Supply
  • 1x SB904 Lithium-Ion Rechargeable Battery
  • 1x WA302 Instrument Cable (TA4F to 1/4")
  • 1x Zippered Vinyl Bag
  • 1x Swivel Adapter
  • 1x Rack-mount Hardware
