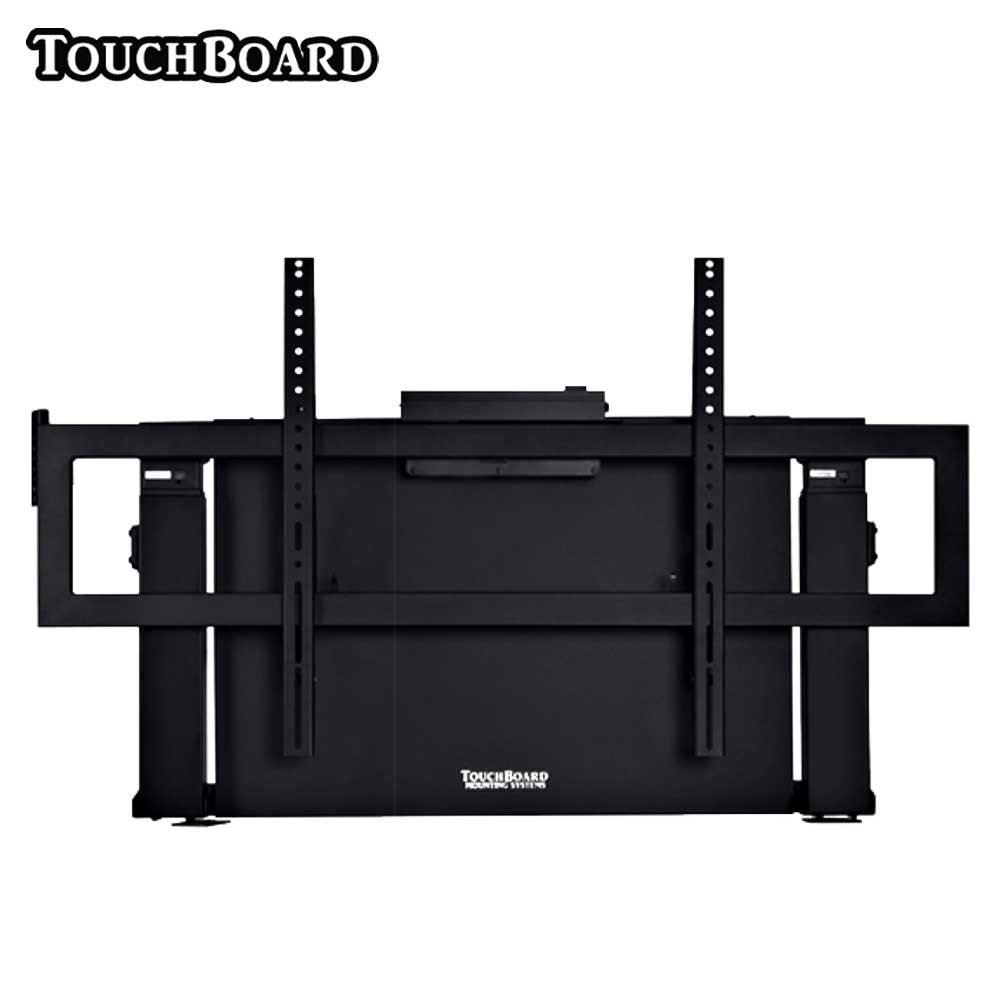

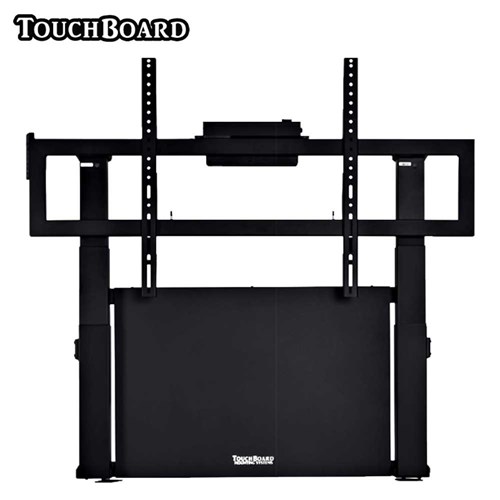

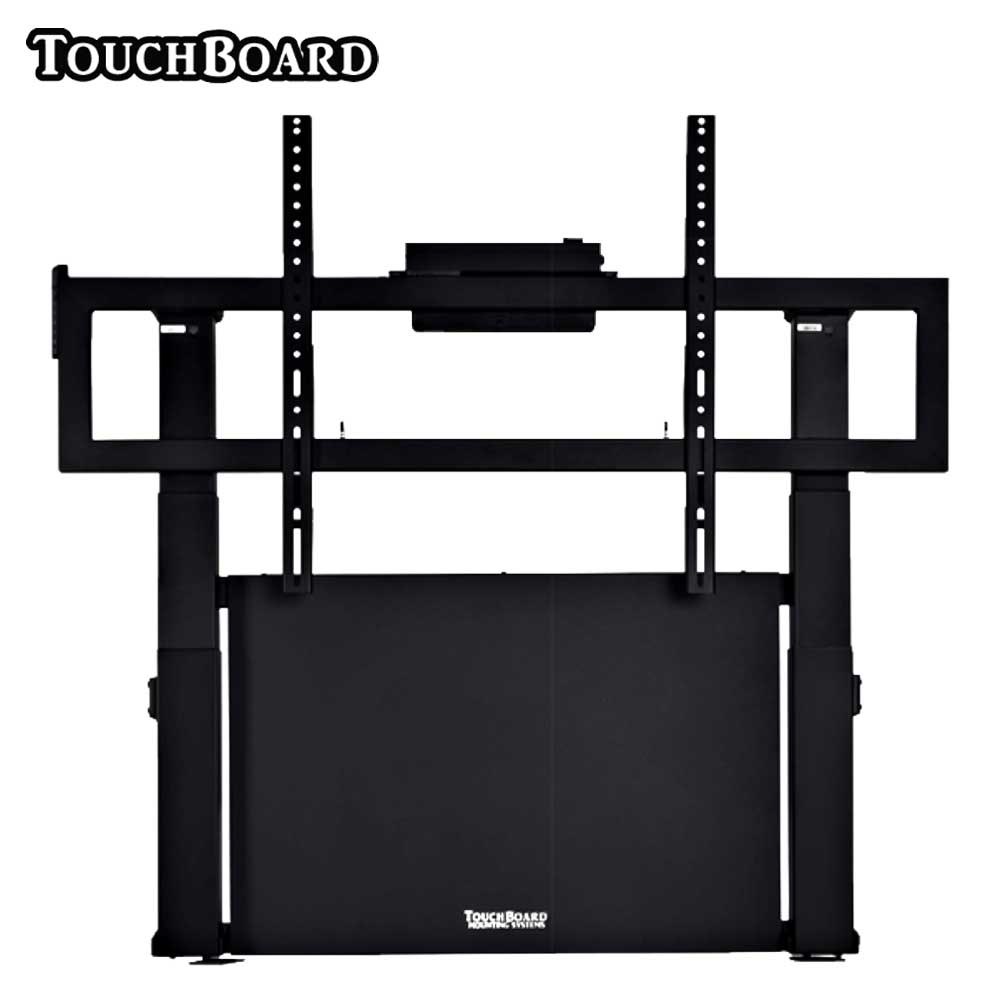

TouchBoard Wall Mounted Height Adjustable Twin Column Lift

Product Code: DEST1076

Share this product
Unit Description
Each
Usually Ships 5-7 Days
Login for Account Pricing
Increase value Decrease value
Quantity in cart:
  • Description
  • Specifications
  • Contact Us

The TouchBoard Wall Mounted Height Adjustable System with Twin Column Lifts is the newest edition to our current range of motorised mounting solutions. This system eliminates the load bearing extrusions to the floor utilised in our other wall mounted systems, providing a quite simple and clean installation whilst retaining motorised height adjustability.

With its strong steel construction, this system is designed to support modern LED touch panels up to 95kg when a motorised height adjustable option is required. No protruding legs to the foor provides an aesthetic modern installation within any corporate, boardroom or education environment.

Available in motorised height adjustable to provide added flexibility for mixed learning and shared learning spaces. Options include a side laptop tray, keyboard, PC and webcam mount as well as brackets to support VESA mounts up to 1470mm.

  • Designed to provide complete flexibility in any learning / presentation area
  • Provides including learning for mobility impaired users
  • Wall mounted with motorised height adjustability
  • Sturdy and robust with simple electronic actuator control
  • Aesthetic modern installation with no visible protruding legs
  • Side laptop tray, keyboard, PC and webcam mounts available
  • Integrate power distribution board with surge protection
  • Fast and easy installation, taking under 1 hour

DEST1076
DEST1076

Specifications

Frame Specifications

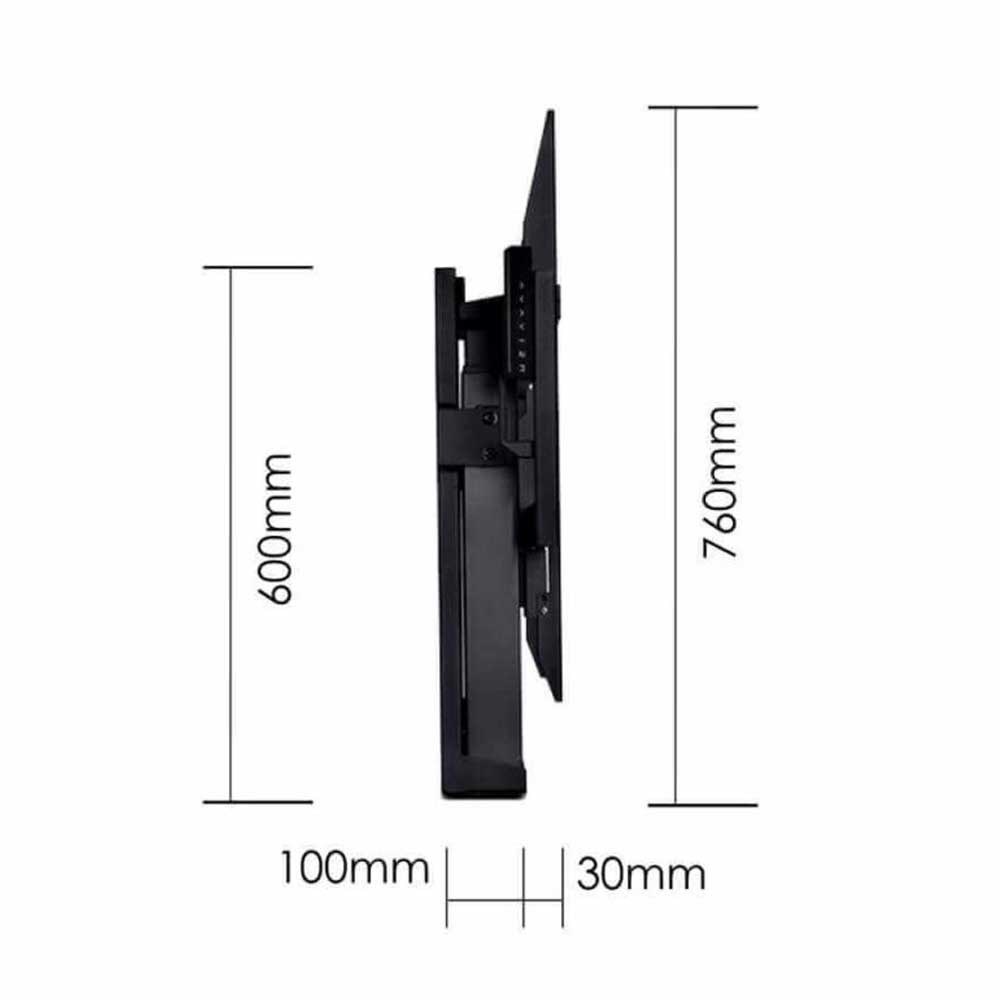

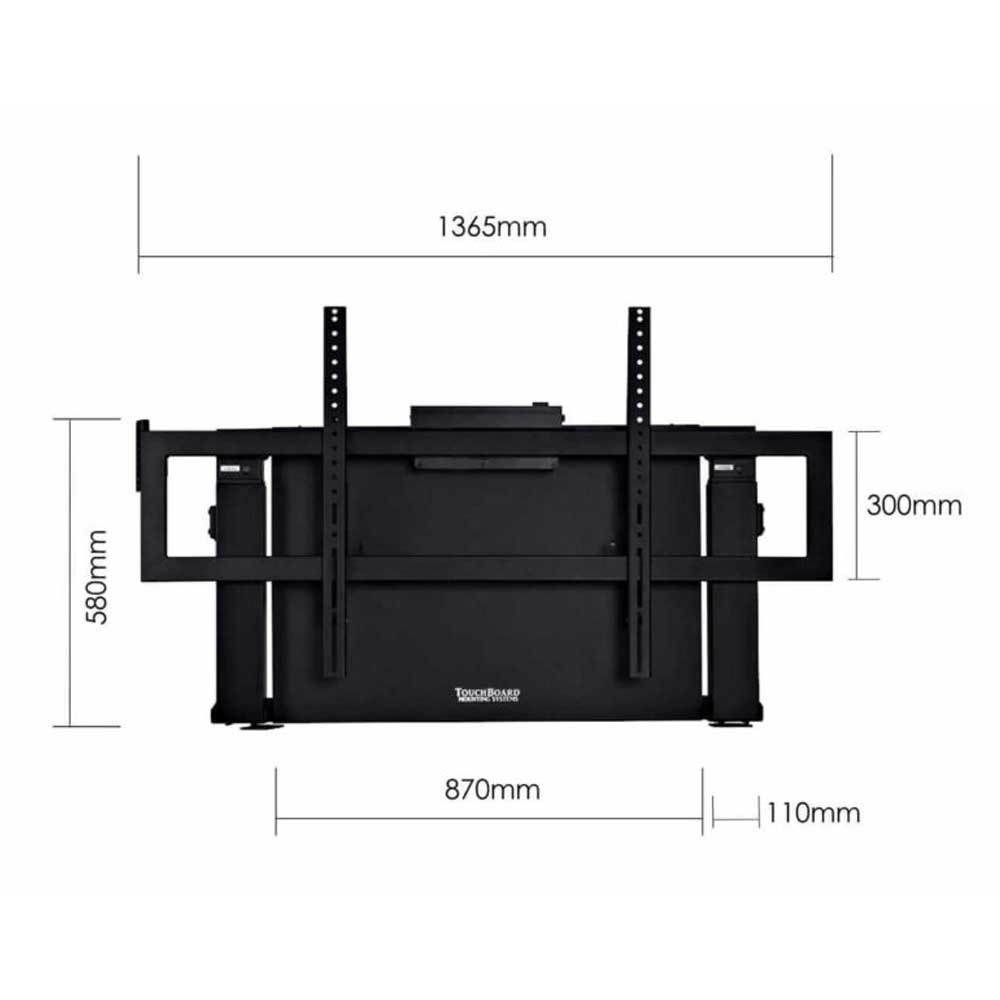

Dimensions

  • Width: Frame 870 mm, Bracket 1360 mm
  • Height: Low 580 mm, High 1180 mm
  • Depth of Frame: 130 mm

Material

  • Steel Extrusion Legs 2.5 mm
  • Steel Plate Support Brackets 3.0 mm

Finish

  • Surface treated powder coating texture finish to 2.0 mm thickness

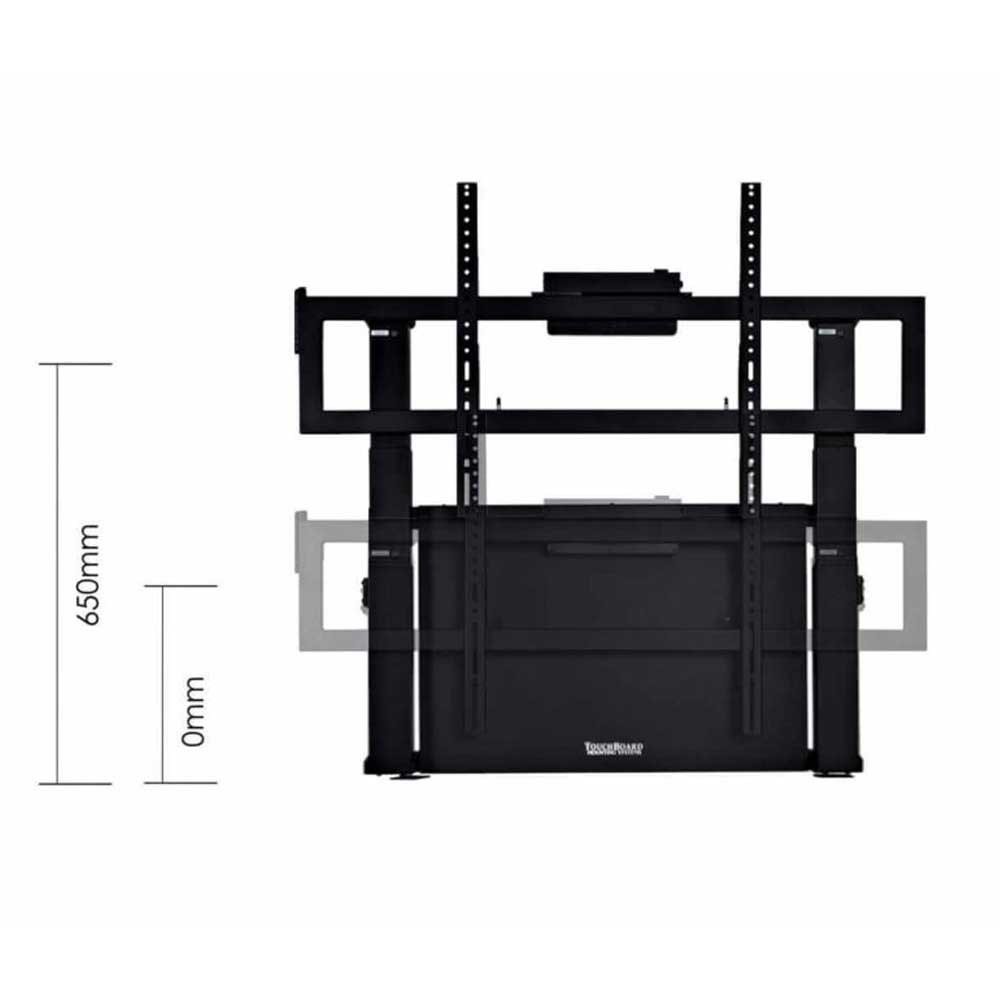

Height Range

  • Up / Down – 600 mm

Lifting Design

  • Twin Lifting Columns

Weight Supported

  • Up to 95 kg

VESA Supported

  • 400 mm × 400 mm up to 1200 mm × 600 mm
Electrical Specifications

Lifting Columns

  • Quantity: 2
  • Load Capacity: 800 N
  • Speed: 22 mm/s
  • Input: 24 DC
  • Stroke Length: 600 mm
  • Retracted Length: 600 mm
  • Overload Protection: Integrated into control box
  • Duty Cycle: 10% max, 2 min continuous use
  • Material: Steel 2.5 mm
  • Operating Temp: +5 deg – +40 deg
  • Certification: CE

Control Box

  • Output: 2 Output
  • Voltage: 230 – 240 VAC
  • Power: 360 Watts
  • Certification: CE

Switch

  • 4 Button – Up / Down
  • Connection: Cat5 to Controller
  • Certification: CE

Power Board

  • 4 Way PDU Aluminium Rack Mount, CE
Captcha Image
Signature
Product Specifications
Brand Touchboard
