Variable White Fresnel Effect with Plano-Convex Lens

Photometrics

• Light Source: 2 x 100W cool white 6,500K and warm white 2,700K COB LED
• CRI: 95+
• Beam Angle: 20°~53°
• Field Angle: 34°~70°
• Output: 3,550 lux @ 3m @ 20°, 1,025 lux @ 3m @ 53°
• Lens: 80mm Planconvex lens
• PWM: 1,200Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100%, 16-bit
• Strobe: 1~25Hz
• Zoom: Manual, 20°~53°
• Barn Door: Included
• Gel Clip: Included

Power

• Power Supply: 100~240V AC, 50/60Hz, 200W
• Power Connection: True1 in/out

Control

• Operational Modes: Manual, Master / Slave & DMX, WDMX, RDM
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channel Mode: 1 / 1U / 2 / 5 / 7 / User
• Control Interface: 5-pin XLR in/out

Housing

• Housing Materials: Die- cast Aluminum Housing
• Housing Finishing: Matte Black
• Cooling: Fanless Cooling with Temperature Protection
• Net Weight: 3.2kg

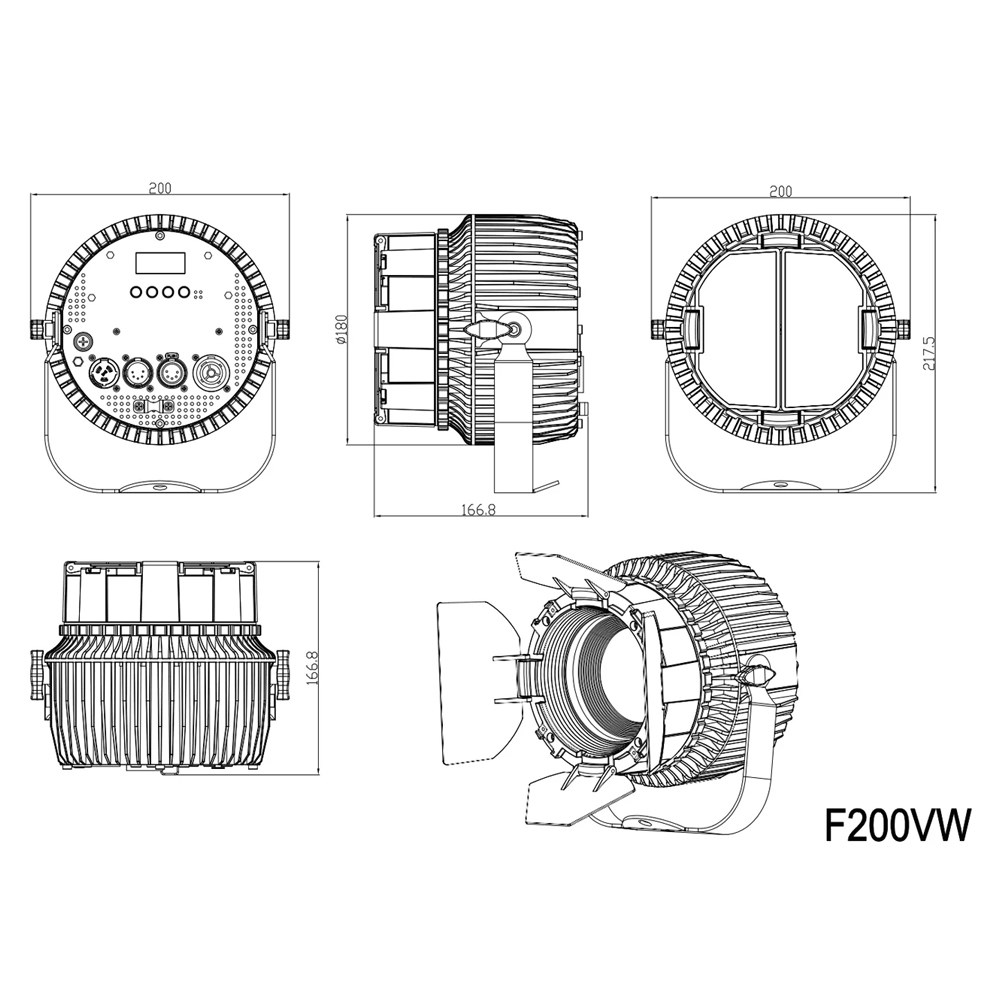

• Dimension: 217.5 x 167 x 200mm

Power

• Power Supply: 100~240V AC, 50/60 Hz
• Power Consumption: 120W
• Power Connection: Seetronic in / out

Photometrics

• Light Source: 1 x 100W*2 cool white 6500K and warm white 2700K COB LED CRI: 95+
• Beam Angle: 20° - 53°
• Field Angle: 34° - 70°
• Output: 3550 lux @3M at 20°, 1025 lux @3M at 53°
• Lens: 80mm Planconvex lens
• PWM: 1,200Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 16-bit 0 - 100%
• Strobe: 1 – 25 Hz
• Zoom: Manual Zoom 20° to 53°
• Barn Door: Included
• Gel Clip: Included

Control

• Operational Modes: Manual, Master / Slave & DMX ,WDMX, RDM
• Display: 4-button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 1U / 2 / 5 / 7 / User
• DMX Interface: 5-pin XLR (Optional 3-pin XLR)

Housing

• Housing Materials: Die- cast Aluminum Housing
• Housing Finishing: Matte Black
• Cooling: Fanless Cooling with Temperature Protection
• Net Weight: 3.2 kg
• Dimension: 217.5 X 167 X 200mm
