Williams AV Medium Area Infrared System 5

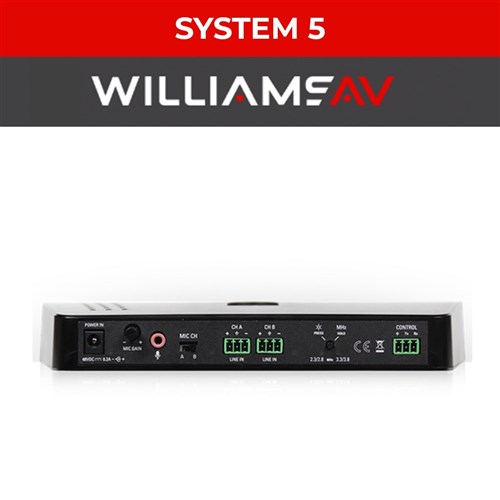

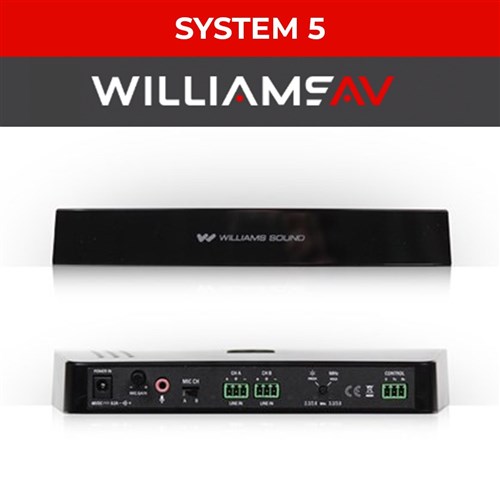

Building on years of infrared audio delivery expertise, Williams Sound is pleased to introduce the new SoundPlus® IR T2 commercial-grade, medium-area infrared transmitter. Its sleek, compact footprint is ideal for assistive listening and language interpretation in commercial spaces such as conference rooms, assisted living facilities, small cinema/theaters, classrooms and courtrooms. The new IR T2 infrared transmitter offers 50 percent greater coverage than the previous IR device (WIR TX75) and new control system readiness -- all at a more affordable price. With a significantly wider coverage pattern and more power, there is no need for the additional expense of secondary units.

• Dimensions: 9.0" W (229 mm) x 3.8" D (97 mm) x 1.4" H (36 mm)
• Weight: 0.84 lb. (0.38 kg)
• Color: Black
• Power Supply: TFP 057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
• DC Power Input: 2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive
• Power Indicator: Green LED
• Sleep/Power Save Mode: Shuts off carrier when no audio present for 12 minutes
• Modulation: FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis
• Transmit Frequencies: 2.3, 2.8, 3.3, 3.8 MHz
• Coverage Area: Up to 18,000 sq. ft (1,673 sq. m) in single-channel mode with the RX22-4 receiver
• Audio Inputs: Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
• Audio Indicators: One yellow LED per channel. Lights up and stay on steady with minimum audio level.
• Signal-to-Noise Ratio: 70 dB (line input)
• Frequency Response:
  • 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs)
  • 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
• Operating Requirements: 32°-122°F (0-50°C)
• Mounting Kit: Wall or Ceiling mount: BKT 024 Omnidirectional mount
• Compatible Receivers: WIR RX22-4, WIR RX18, IR R1
• Warranty: 5 years
• Approvals/Regulatory Compliance: CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE

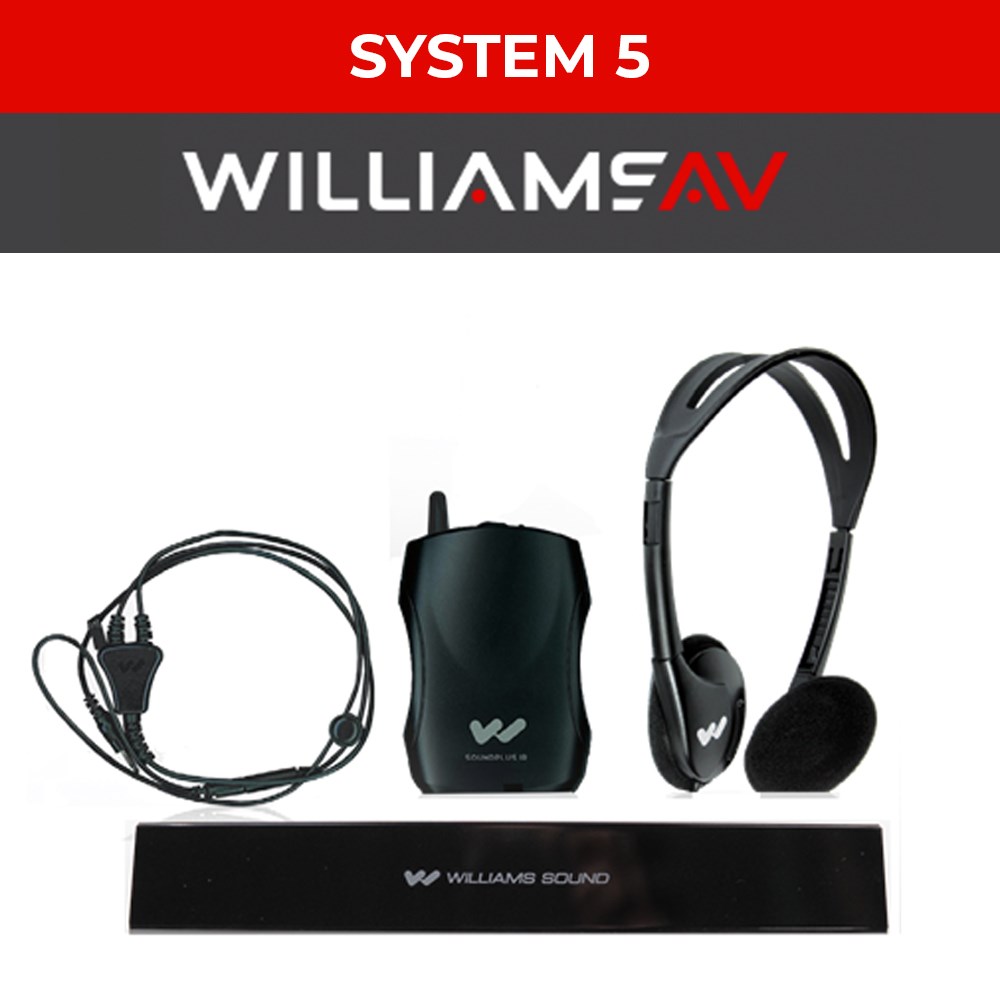

• 1 x IR T2 Medium-area Infrared Transmitter
• 3 x WIR RX22-4 Four-channel Infrared Receivers
• 3 x HED 021 Folding Headphones

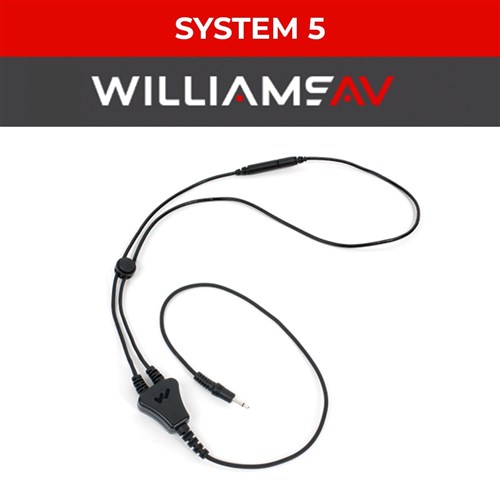

• 2 x NKL 001 Neckloops
• 3 x BAT 001-2 AA Alkaline Batteries

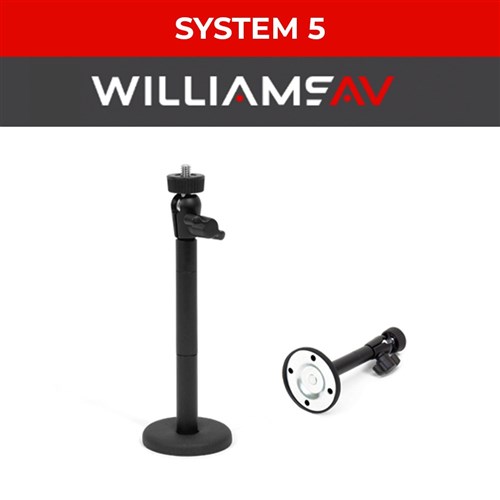

• 1 x BKT 024 Wall/Ceiling Mount
• 1 x IDP 008 ADA wall plaque
• 1 x TFP 057 Power Supply
