Yealink MTR Kit 11.6" Mtouch/ SmartVision 401/MCOREKITC51

Product Code: MVCS40C5000

Share this product
Unit Description
Each
Usually Ships 5-7 Days
Login for Account Pricing

$6447.10 inc GST
Increase value Decrease value
Quantity in cart:
Qty Each Save %
  • Description
  • Specifications
  • Contents
  • Contact Us

MVC S40 for Microsoft Teams Rooms

Yealink MVC S40 is specially designed for small-to-medium conference rooms. The standard set includes the high-performance MINI-PC MCore Pro, the MTouchPlus Touch Console, and a new generation of smart conference room audio and video equipment jointly developed by Yealink: the SmartVision 40 smart audio and video integration device.

This all-in-one unit features dual 48MP lenses, a 120° pickup range, and supports advanced Microsoft Teams AI features such as IntelliFocus, Multi-stream Intelliframe*, Video Fence, and more—delivering a fully immersive, intelligent meeting experience.

The third-generation MINI-PC MCore Pro combines aesthetics with functionality. It comes equipped with three HDMI ports and EDID support, providing a flexible and reliable deployment solution for modern conference rooms.

The MTouchPlus Touch Console follows a multi-function, all-in-one design philosophy. With its built-in Human Motion Sensor, the system can automatically wake upon detecting movement, enabling users to start meetings instantly and effortlessly.

*Currently ship SmartVision 40 with IntelliFocus, will ship SmartVision 40 with Multi-stream IntelliFrame from 2024 Q3.

Key Features and Benefits

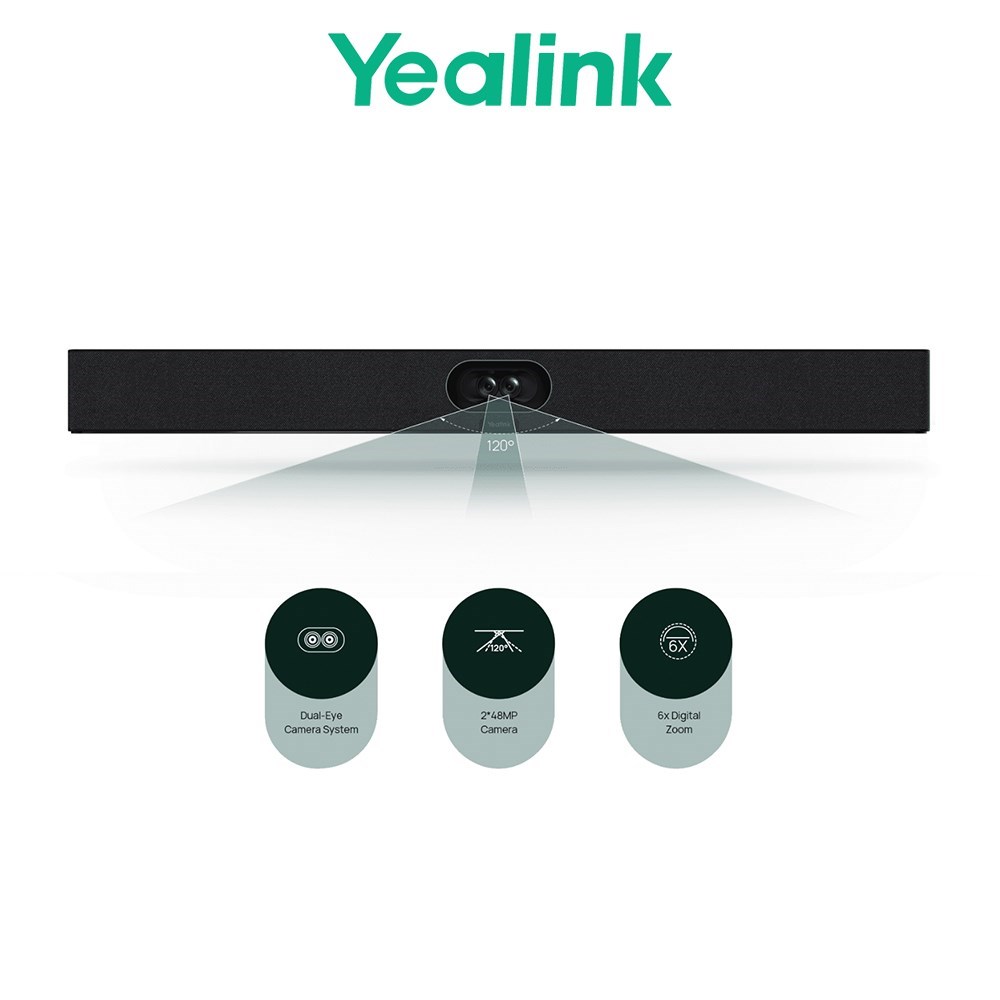

SmartVision 40: Ultra HD picture quality and artificial AI features
The dual lens fixed-focus stitching solution combines the images from two lenses to achieve a higher pixel density, resulting in clearer and sharper image quality. The intelligent AI features include IntelliFocus, Multi-stream IntelliFrame, Video Fence, etc. It can automatically detect speakers in the meeting room, frame them, and display them on the screen through multi-stream output, providing a more intuitive and interactive remote meeting experience. Also, the Video Fence feature can intelligently identify and block interfering factors in the meeting room, maintaining a clean and professional meeting display.

SmartVision 40: High-quality audio pickup experience
SmartVision 40 has a 6-meter voice pickup range, built-in stereo speakers, 3-meter full-duplex technology, and 8x MEMS microphone array. The intelligent noise reduction technology provides a good audio experience. In addition, it can support 2 additional expansion microphones that can cover a large conference room.

Convenient screen sharing
The MVC S40 supports wire and WPP30 wireless screen-sharing solutions. So, users only need to plug in WPP30 or pair it with third-party screen sharing, which can be one key to initiating content sharing.

Fast BYOD solution
The MVC S40 supports wired BYOD solutions. It truly realizes the conference room experience that you want.

Simple to deploy, easy to use
With the VCH port and USB port, the Yealink audio and video system is specially designed for video meeting rooms so that the deployment can be easily extended. At the same time, the cable management feature of Yealink MCore Pro ensures the wire connection’s stability and the most appropriate deployment can be achieved according to the layout of the meeting room. One CAT5e is enough to connect the TV area to the conference table area, and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifies the deployment but also effectively reduces deployment costs.

Manage your devices remotely
This solution supports Yealink Device Management Platform/Cloud Service, and you can flawlessly manage, monitor, configure, update, and diagnose all Yealink audio and video device peripherals on this platform remotely.


ZYEMVCS40C5000

MCore Pro, Gen-3 Mini-PC

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management

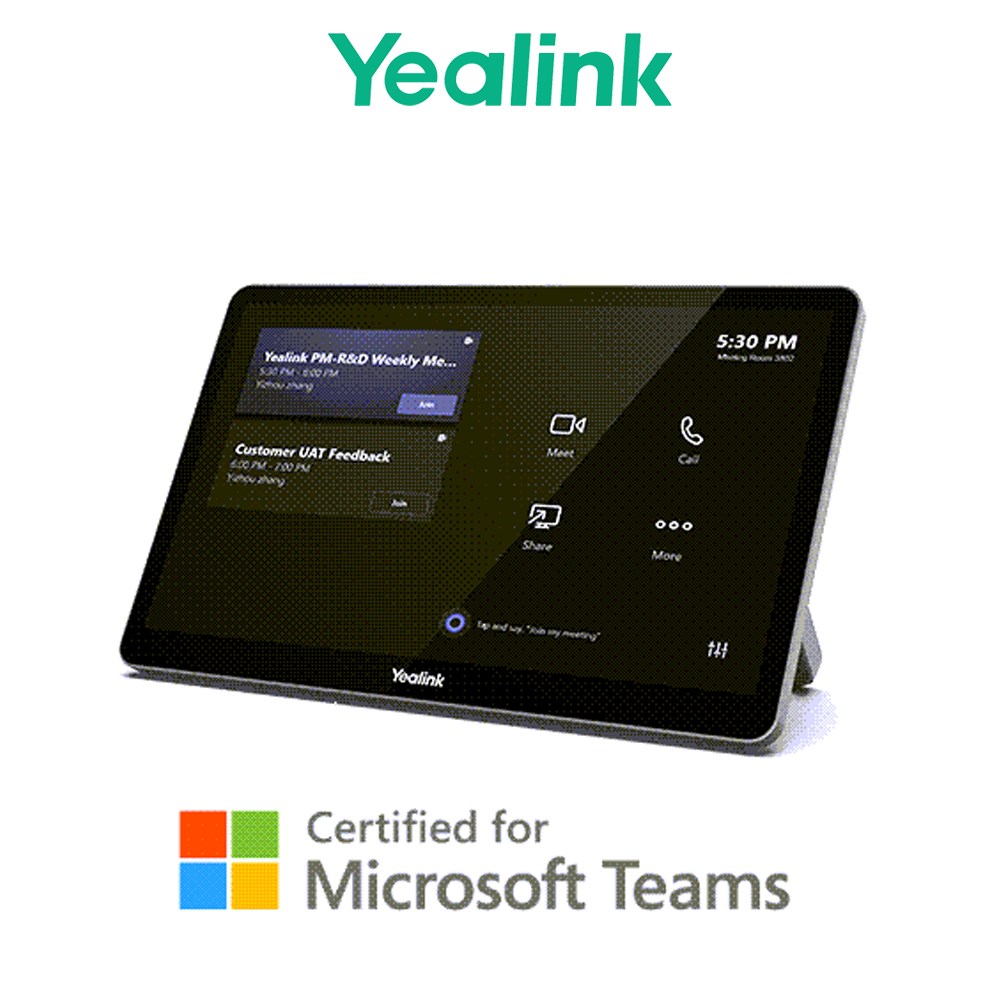

MTouchPlus Touch Console

  • 11.6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Angle between screen and desktop (30°~70°)
  • Support wired and wireless (with WPP30) content sharing
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment

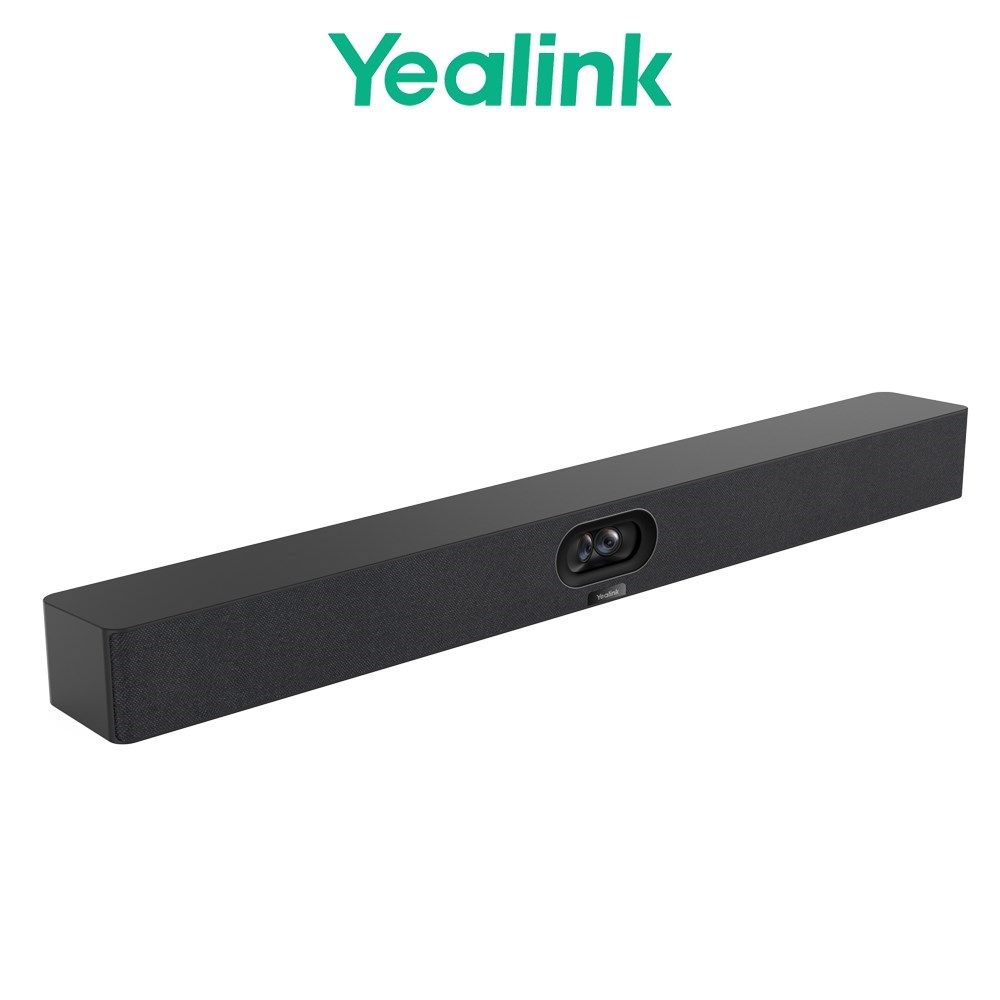

SmartVision 40

  • 2x 48 MP Camera
  • DFOV: 120°
  • HFOV: 111°
  • 2x 10W Stereo speakers
  • Speaker: 78.78dBSPL@0.5m
  • 1x USB3.0 Type-B port
  • 1x USB2.0 Type-A port
  • 1x USB-C port
  • 1x Yealink VCH port(RJ-45)
  • 1x 3.5mm Line-in & Line-out port
  • 1x Power port
  • 1x Security lock slot
  • 1x Reset slot
  • 1x HDMI-out
  • Built-in Wi-Fi
  • Support IntelliFocus
  • Support Multi-Stream IntelliFrame (Only for Microsoft Teams Room)
  • Support Video Fence
  • Support 2x expansion microphone

Package Features

  • N.W/CTN: 4.3 kg
  • G.W/CTN: 4.9 kg
  • Carton Meas: 703 mm x 173 mm x 168 mm

Physical Specifications

  • Operating humidity:10~95%
  • Operating temperature:0~40°C

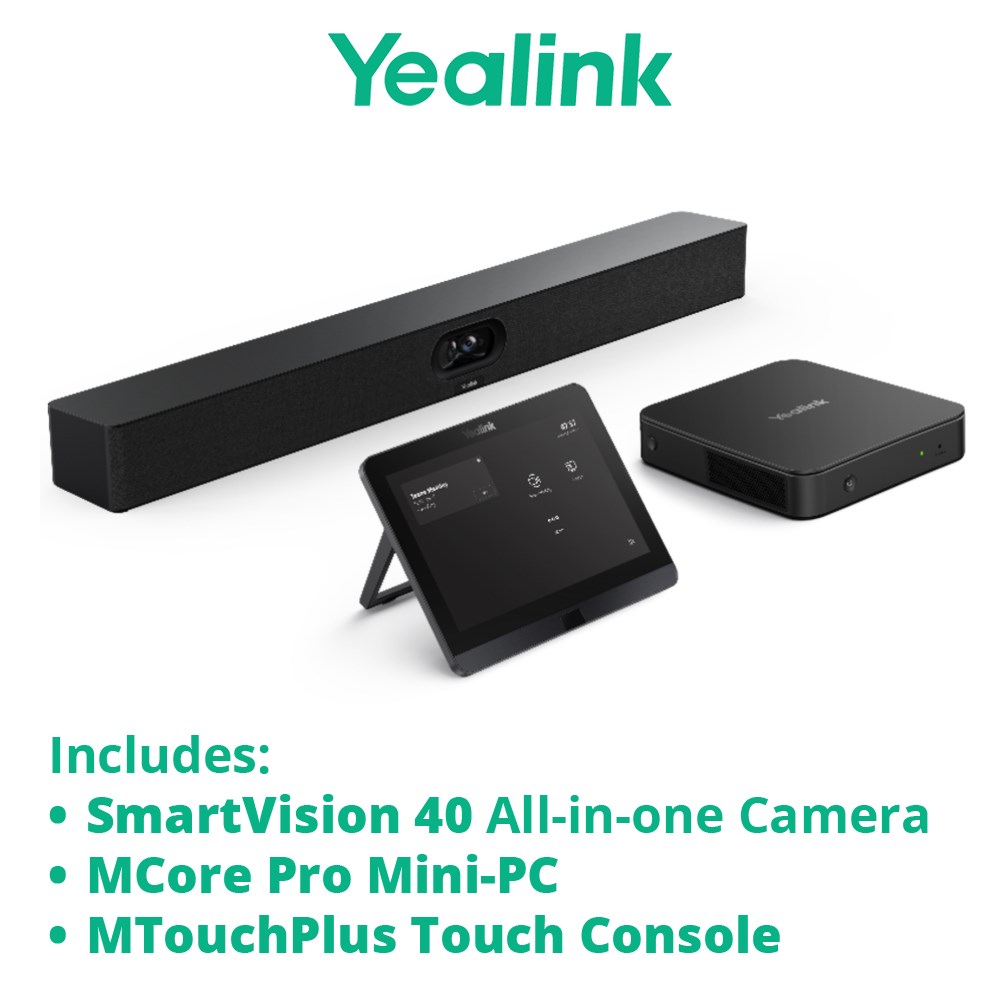

Package Content:

  • SmartVision 40, All-in-One Audio and Video integration machine
  • MCore Pro
  • MTouchPlus Touch Console
Captcha Image
Signature
Product Specifications
Brand Yealink
