Yealink MVC860 11.6" Mtouch/UVC86/MCOREKITC5/ VCM35

Product Code: MVC860C5710

Share this product
Unit Description
Each
Usually Ships 5-7 Days
Login for School Account Pricing

$10686.50 inc GST
Increase value Decrease value
Quantity in cart:
Qty Each Save %
  • Description
  • Specifications
  • Contents
  • Downloads
  • Contact Us

Microsoft Teams Rooms System for Medium and Large Meeting Rooms

Transform Your Meetings with the MVC860 Bundle Solution

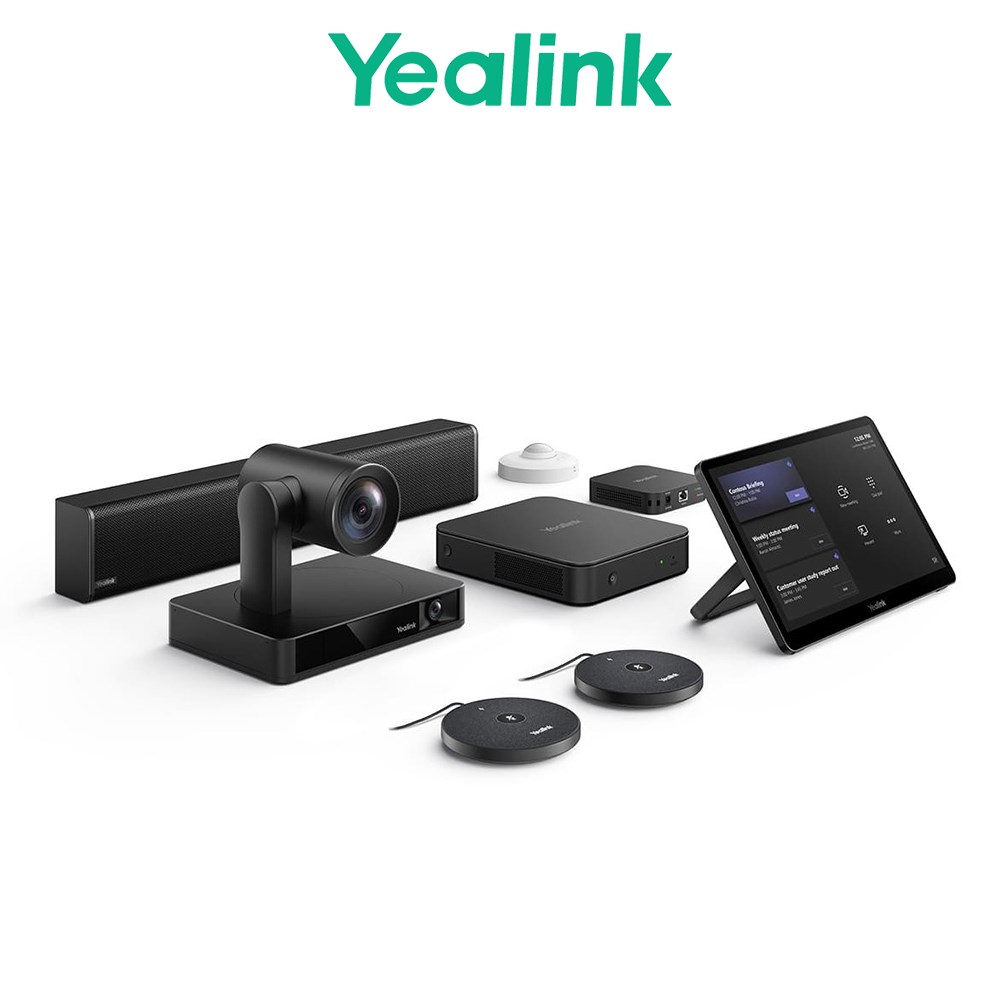

Designed for medium and large meeting rooms, the Yealink MVC860* Microsoft Teams Room system is a bundle video conferencing system with UVC86 intelligent tracking camera,  MCore Pro mini-PC, MTouch Plus touch panel, VCM35 microphones, MSpeakerII Soundbar, and RoomSensor. This powerful bundle combines cutting-edge technology to deliver seamless, intelligent collaboration with both internal and external users.

Flexible Audio Solutions
In addition to the advanced video conference camera, the Yealink MVC860 system offers flexible audio options. Choose from a range of voice pickup devices, including the Yealink VCM35 microphone, CM20 ceiling microphone, and the VCM36-W wireless microphone, combined with the CS10 ceiling loudspeaker, to meet your specific audio needs.

Track Every Movement
Experience the exceptional performance of the Yealink UVC86, a built-in dual-eye 4K intelligent camera. With its panoramic camera for real-time participant detection and a PTZ camera for capturing the best picture, the UVC86 ensures precise tracking of every movement in your Microsoft Teams Rooms. Powered by AI-driven features like Conversation Mode in Speaker Tracking, and Segment and Stage Tracking in Presenter Tracking, this intelligent camera delivers a smart and effective meeting experience.

Control Freely
The new MTouch Plus features a spacious 11.6-inch screen for improved visibility and convenient meeting controls. You can also set up multiple touch panels within the same room, whether on the wall or table for flexible collaboration needs.


ZYEMVC860C5710

MCore Pro, Gen-3 Mini-PC

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management

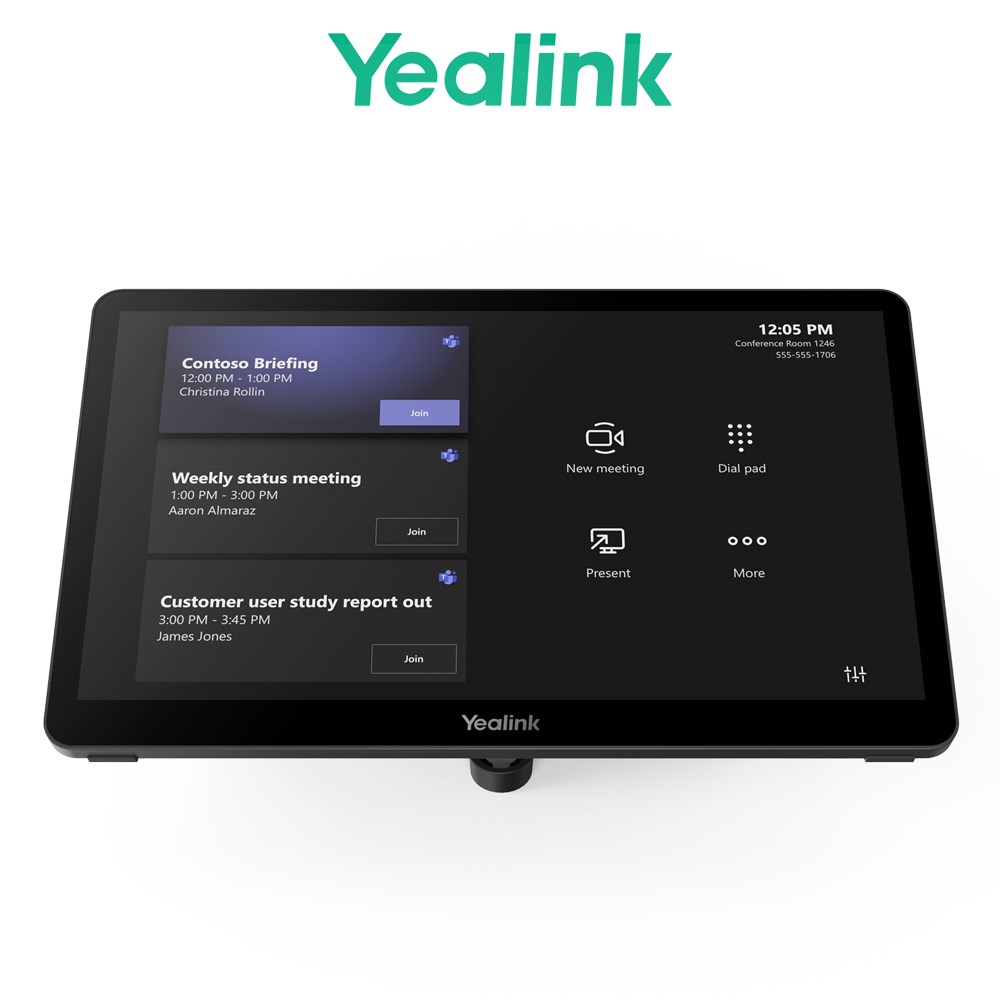

MTouch Plus

  • 11.6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Angle between screen and desktop (30° ~ 70°)
  • Adjustable angle of support frame (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support third-party screen sharing*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment

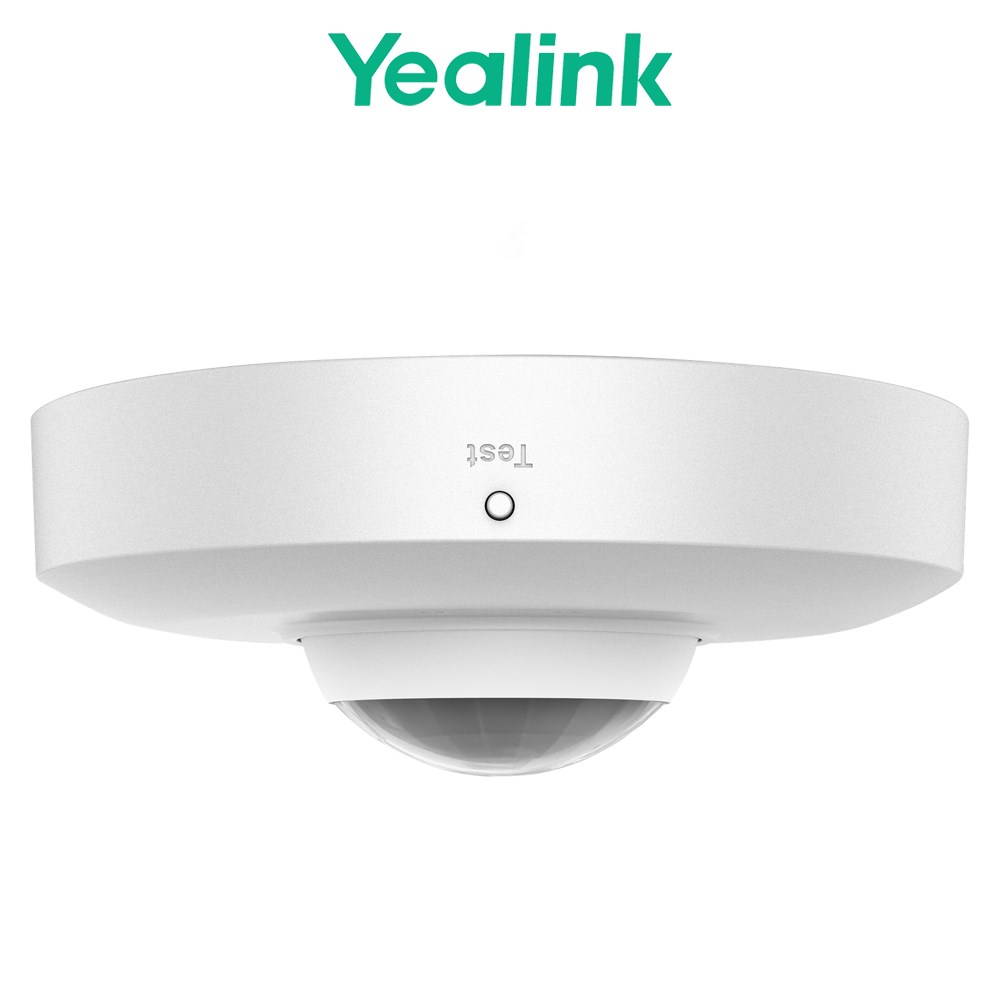

RoomSensor

  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery powered, 4 year life

*This feature will be supported in future versions

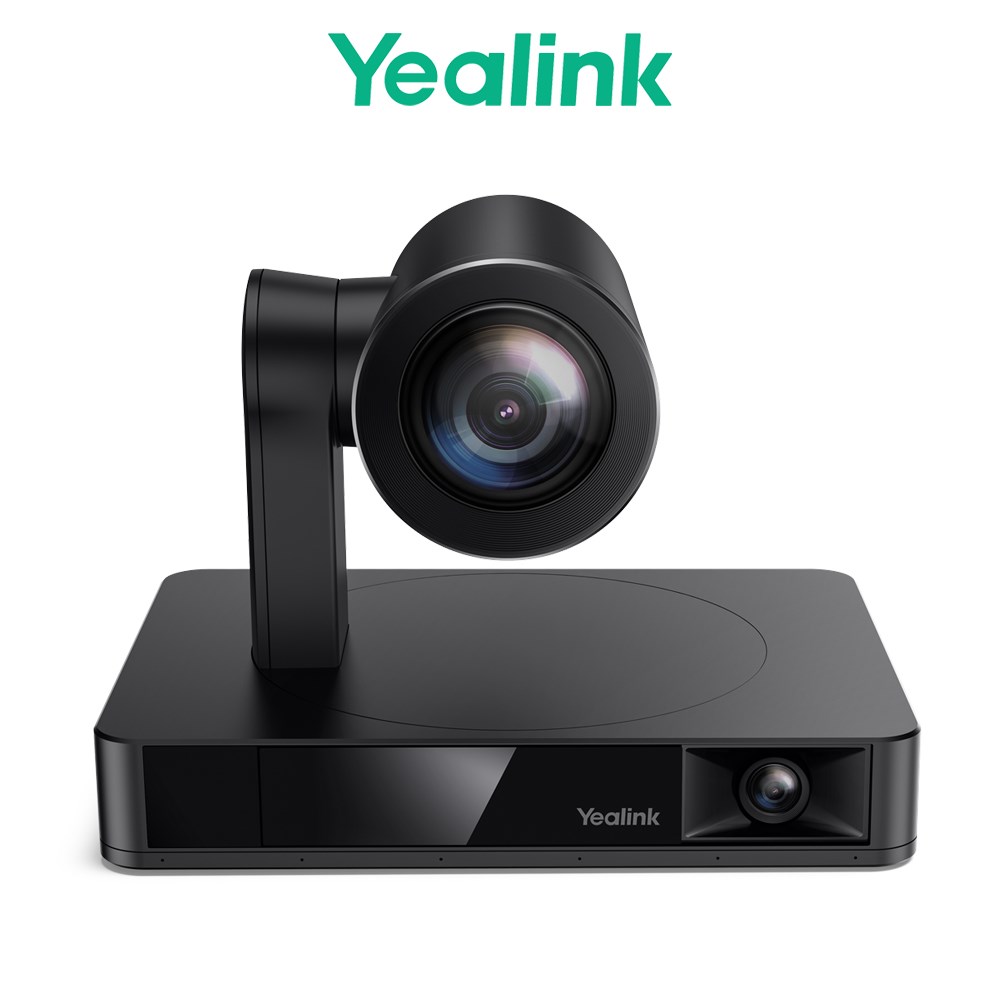

UVC86 USB PTZ Camera

  • 4K Sensor
  • 20.4 × HD zoom (12x optical, 1.7x digital)
  • Angle of view:
    • 90° DFOV, 81° HFOV, 50° VFOV ( Telephoto lens)
    • 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
  • Auto-framing
  • Speaker tracking
  • Presenter tracking, support area trigger and gesture control
  • Multi-focus
  • Picture-in-picture
  • Up to 9 preset positions can be set
  • Horizontal rotation: 200°
  • Vertical rotation: 130°
  • 1 x HDMI output
  • 1 x Yealink microphone port(RJ-45)
  • 1 x USB 3.0 Type-B port
  • 1 x USB 2.0 Type-A Port
  • 1 x Power Port
  • 1 x Security Lock
  • 1 x Reset Hole

MSpeaker II

  • Frequency response: 106Hz-20 KHZ
  • Maximum Loud Pressure level: 88±3dB@8W / 1M
  • Sensitivity: 79±3dB@1W/1M
  • S/N: ≥70dB
  • 3.5mm linear input interface

VCM35

  • Built-in three-microphone matrix
  • 360° omnidirectional pickup
  • Signal to noise ratio: 60dB SPL@1KHz, A-weighted
  • Loudest Pressure level: 115dB@1KHz, THD<3%
  • Equivalent noise: -105dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency response: 100Hz-8KHz
  • 2m radius full duplex range
  • 5m pickup radius
  • Support star cascading
  • Two-color LED capacitive touch mute key

Package Content:

  • UVC86
  • VCM35
  • MSpeaker?
  • MCore Pro
  • MTouch Plus
  • RCH40
  • RoomSensor
Captcha Image
Signature
Product Specifications
Brand Yealink
