Yealink Skysound CM20 Ceiling Mic - White

Product Code: YLCM20

Share this product
Unit Description
Each
Usually Ships 5-7 Days
Login for Account Pricing

$1469.60 inc GST
Increase value Decrease value
Quantity in cart:
Qty Each Save %
  • Description
  • Specifications
  • Contents
  • Downloads
  • Contact Us

Crystal Clear, High Fidelity
AI-Powered Beamforming Ceiling Microphone

  • Advanced Microphone
  • Array Superior Coverage
  • Intelligent Sound Processing
  • Intelligent Tracking
  • Network and Deployment Efficiency
  • Versatile Ceiling Integration

Key Features

  • Frequency Response: 120Hz-16kHz
  • Maximum SPL: 122dBSPL
  • Signal Noise Ratio: 86dB @<1% THD
  • Sensitivity: 0 dBV/Pa 94dBSPL@1kHZ
  • Microphone: 16 omni-direction microphone
  • AEC Channel: 1 channel internal

The Yealink CM20 is a premium ceiling microphone,expertly crafted to enhance audio  performance in professional conference settings.Boasting an advanced array of 16 omnidirectional microphones,the CM20 captures sound in 360°, ensuring clarity and inclusivity in every discussion. With an integrated DSP, CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing.

Practical and Aesthetic Integration

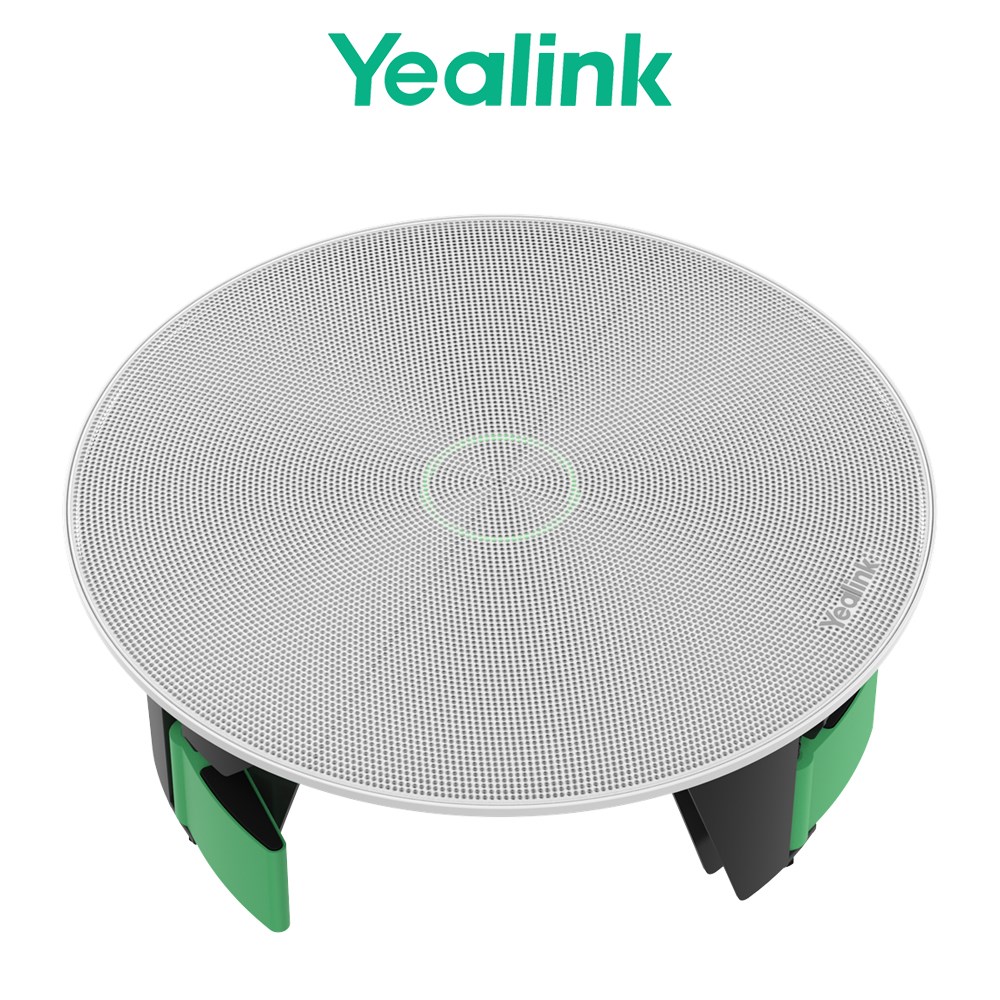

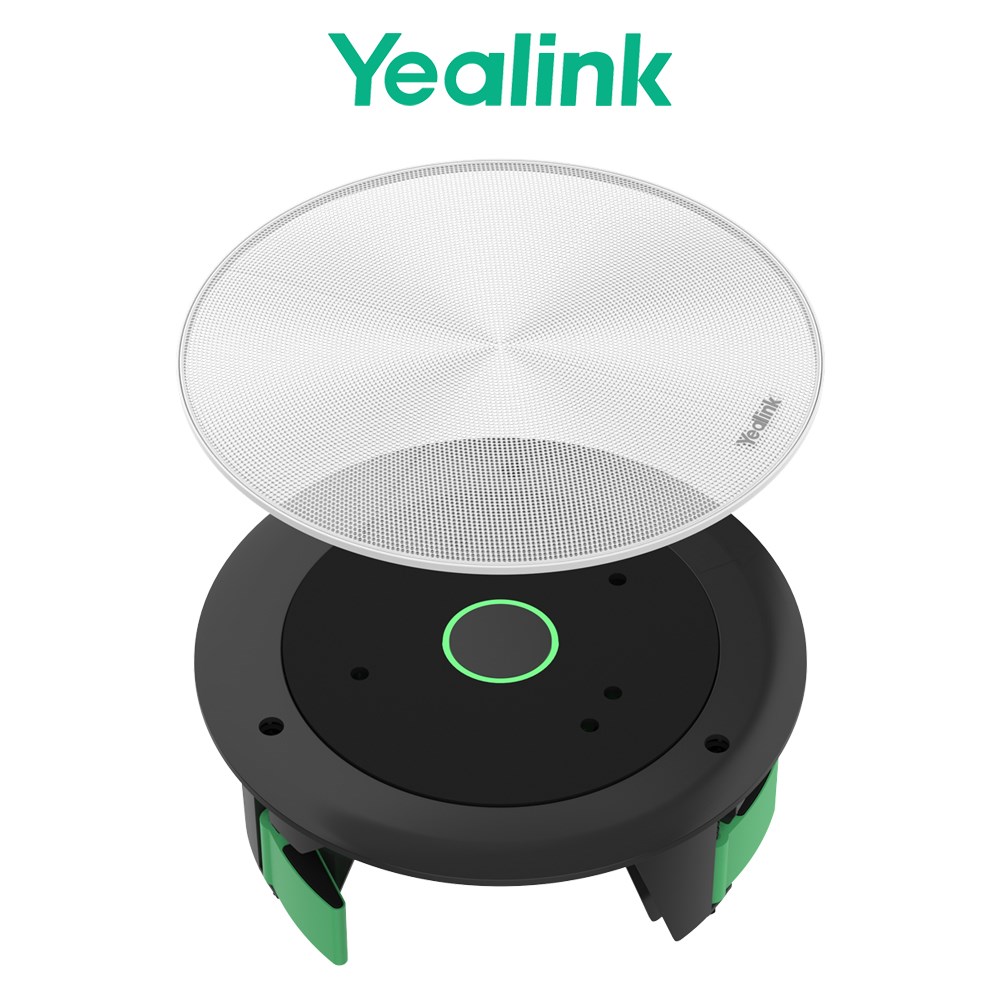

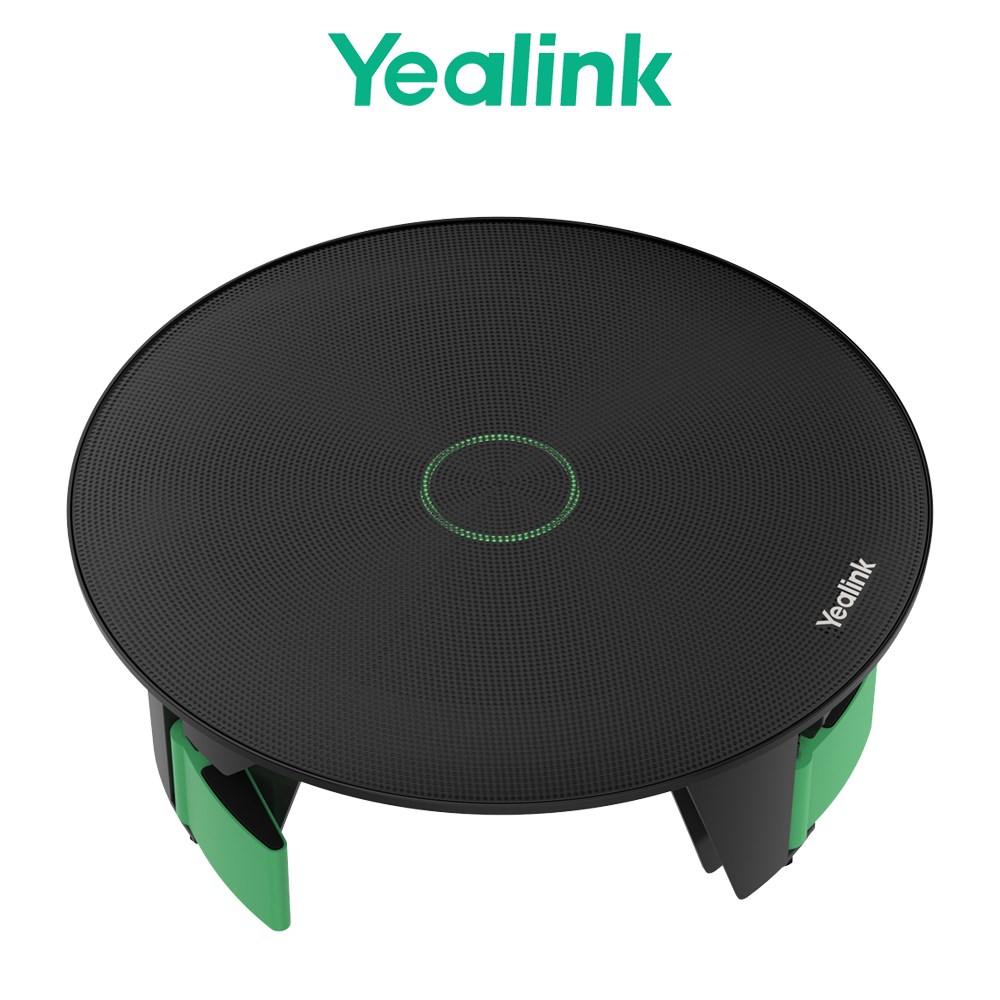

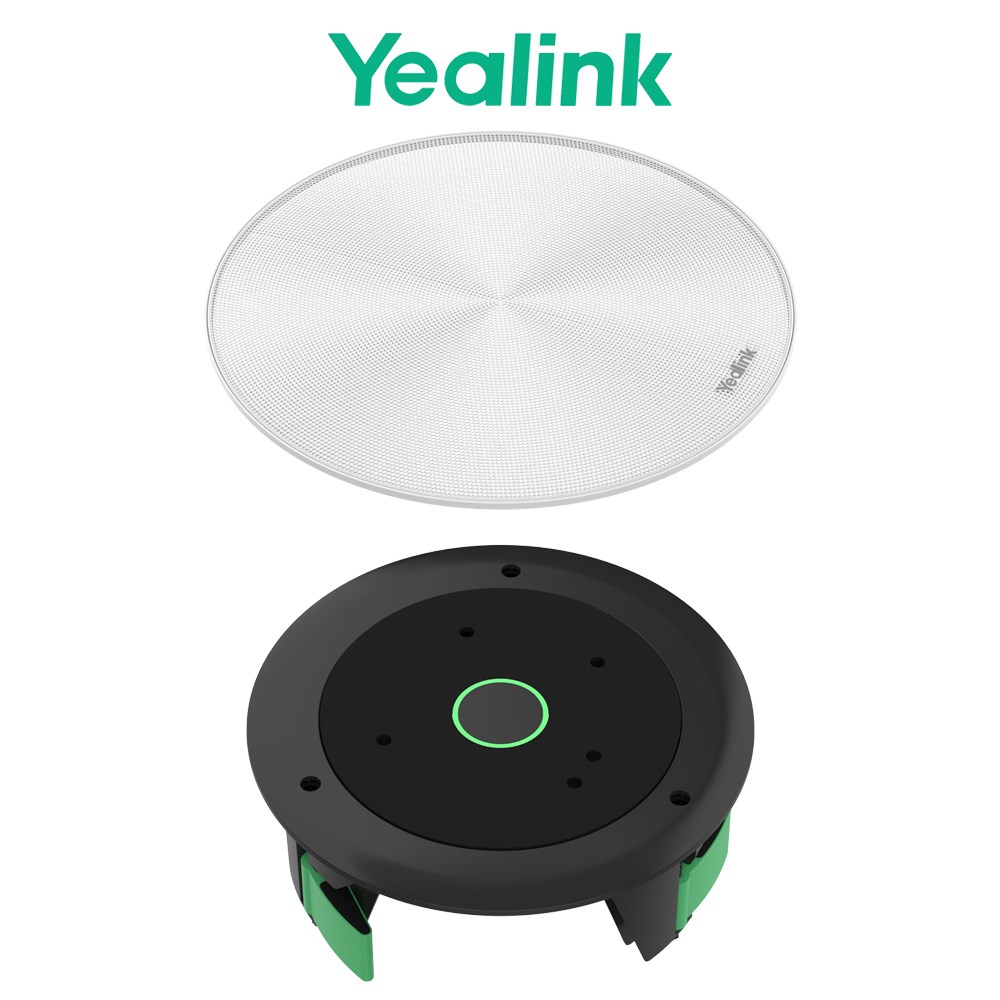

Yealink CM20 features an 80mm low-profile design and a detachable magnetic cover with a snap-on attachment (available in black and white color options). The overall design ensures seamless integration and aesthetic appeal, while facilitating effortless deployment and maintaining the integrity of the ceiling.

High Fidelity of Voice
CM20 is equipped with 16 omnidirectional microphone units, providing unparalleled audio clarity across 8 independent pickup zones. It effectively covers up to a radius of 4m nominal coverage, with a high quality radius of 3m full-duplex audio capture, ideal for medium to large spaces. The EQ tuning of the CM20 is specifically tailored to accentuate the exceptional quality of human vocals.

Intelligent Algorithm, Adaptive Optimization
By incorporating AI Dynamic Noise Reduction and AI Reverberation Suppression, the CM20 guarantees pristige audio quality during every meeting. It effortlessly adjusts to the ambient conditions of the room, effectively minimizing noise and echo. With its integrated DSP, the CM20 seamlessly integrates with Yealink MVC systems, eliminating the requirement for an extra DSP device and providing hassle-free plug-and-play functionality.

Built-in DSP for Seamless Integration
Featuring and integrated DSP, the CM20 offers a plug-and-play experience with Yealink MVC systems, removing the need for external audio processing.

Versatile Adaptability

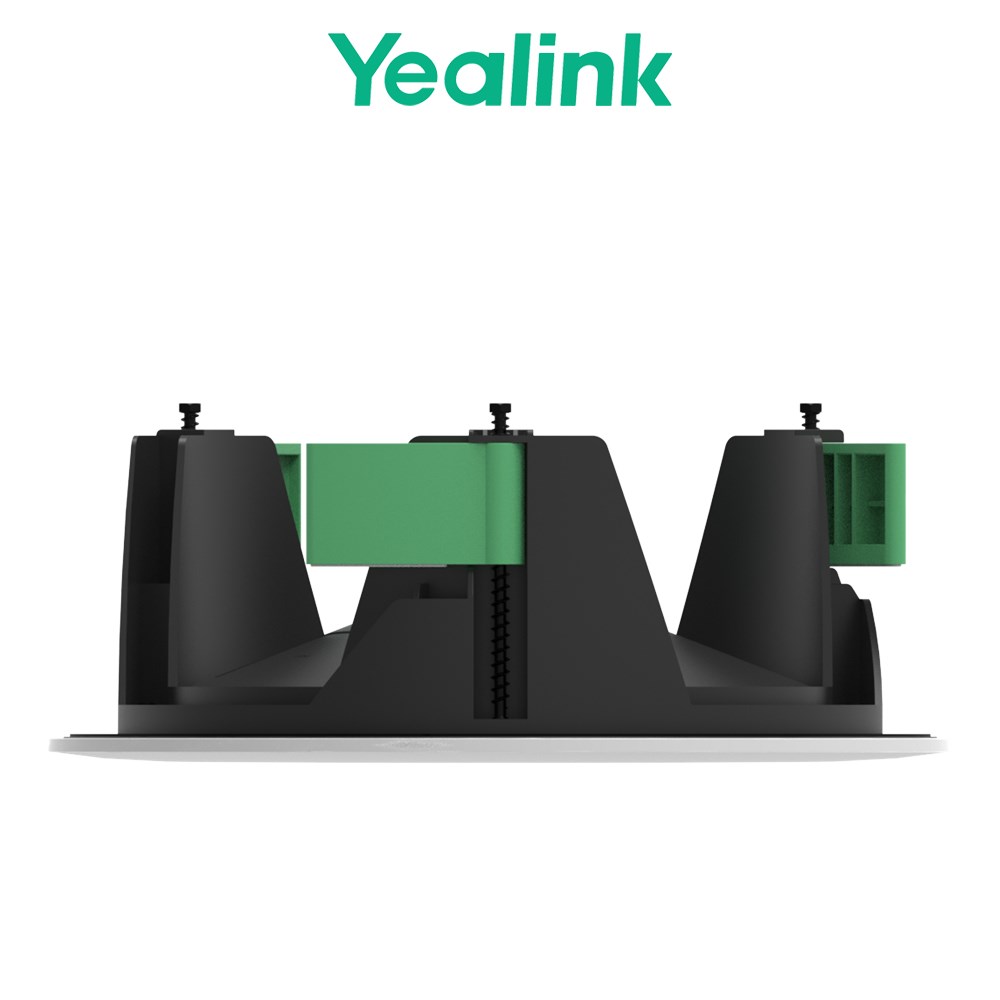

Yealink CM20 provides flexible deployment options for divers meeting room styles.


ZYEYLCM20

Audio Specifications

  • Frequency Response: 120Hz-16kHz
  • Maximum SPL: 122dBSPL
  • Signal Noise Ratio: 86dB @<1% THD
  • Sensitivity: 0 dBV/Pa 94dBSPL@1kHZ
  • Microphone: 16 omni-direction microphone
  • AEC Channel: 1 channel internal

Physical Specifications

  • Operating Temperature: 0-50℃
  • Storage Temperature: 0-70℃
  • Operating Humidity: 5%~90%
  • Typical Power: 5.7 W
  • Rated Power: 9 W
  • Interface: 1 × RJ-45
  • Power Supply: PoE (IEEE 802.3af, class 3)

Product Specifications

  • Size:
    • Φ223 × H83 mm (with cover mesh)
    • Φ215 × H81 mm (without cover mesh)
  • Weight: 615g
  • Product Colour: Pearl Light Gray
  • Product Materials: ABS+PC&iron mesh
  • Plenum Rated UL 2043 (suitable for air handling spaces)

Logistic Information

  • Box Size: 398 × 310 × 135 mm

Package Content

  • CM20
  • White Mesh Cover (Black Optional)
  • Deployment Instruction Template
  • Dust Cover
  • Quick Start Guide
  • Assembly Fixing Bracket
  • Bracing Bridge × 1 pair
  • Bracing Bridge Screw × 20 (M3 × 6PWMHOZN3)
  • Machine Screw × 5 (3 × 6PMOZN3+)
