Low-Profile 2-Way Coaxial Ceiling Loudspeaker

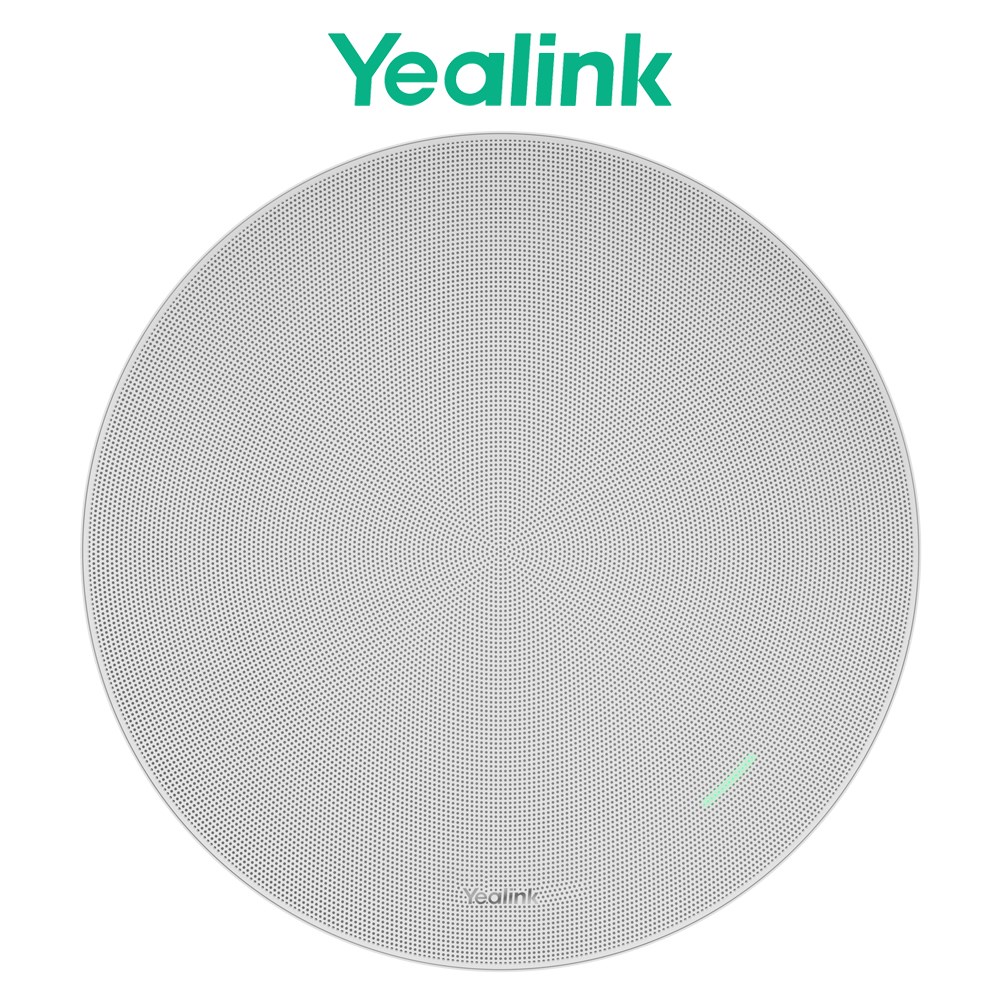

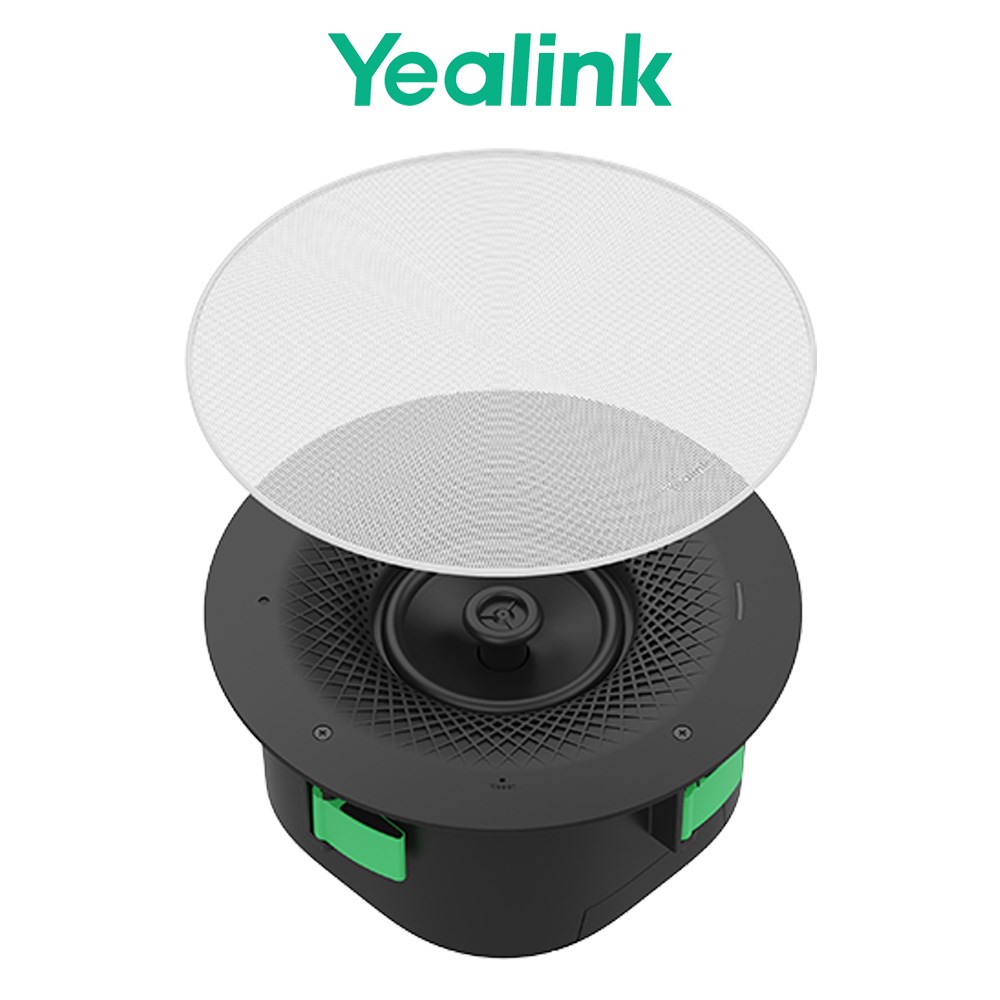

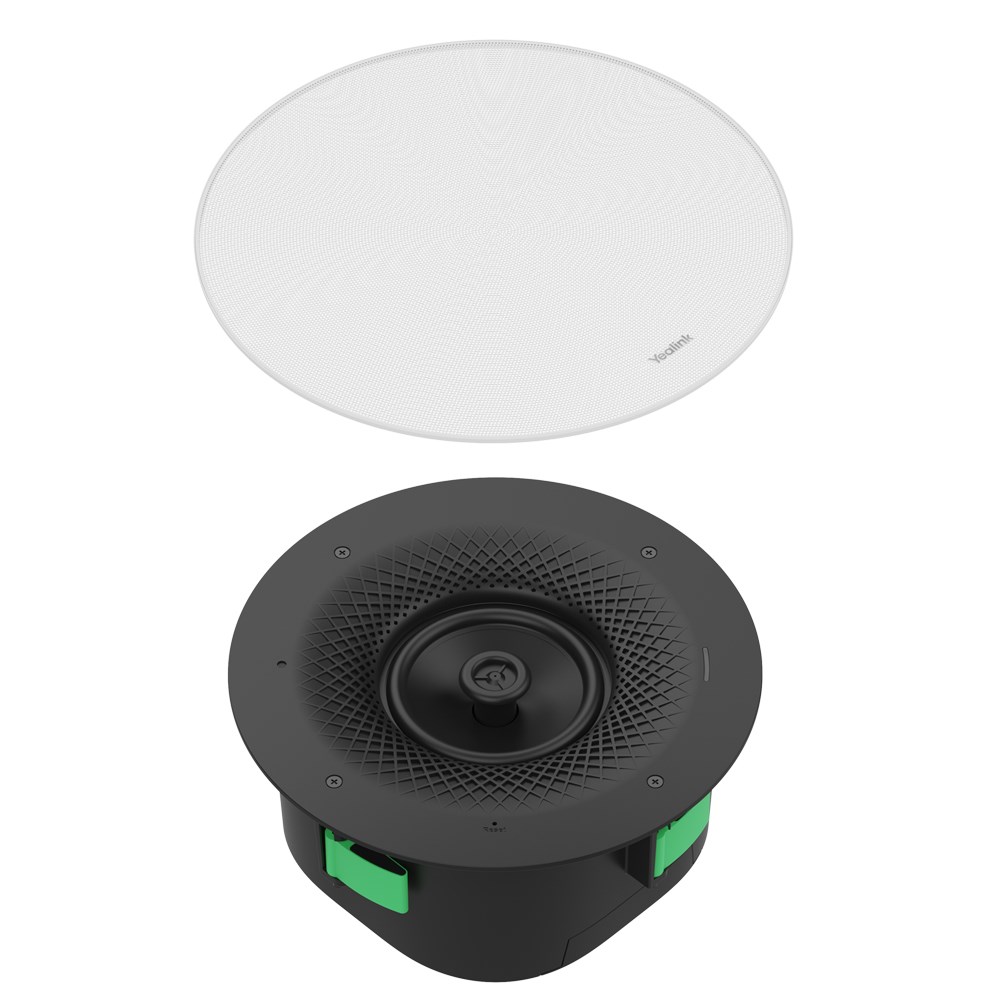

The Loudspeaker features a low-profile (120mm depth) 2-way coaxial design and a removable magnetic suction mesh cover*. The CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.
Specially Designed for Conference Space
The CS10 boasts impressive acoustic parameters, which ensures an unparalleled level of sonic excellence, while its EQ calibration is specifically tailored to accentuate the utmost quality of human vocals. It seamlessly combines active speaker functionality with an integrated DAC and PoE technology, allowing for swift digital signal processing from the network for a hassle-free setup and minimal latency.
Video Conferencing Perfected
CS10 was tuned the sound profile for video conference first. It emphasized the mid-range of frequency response that improves sound performance in human voice.
Versatile Adaptability

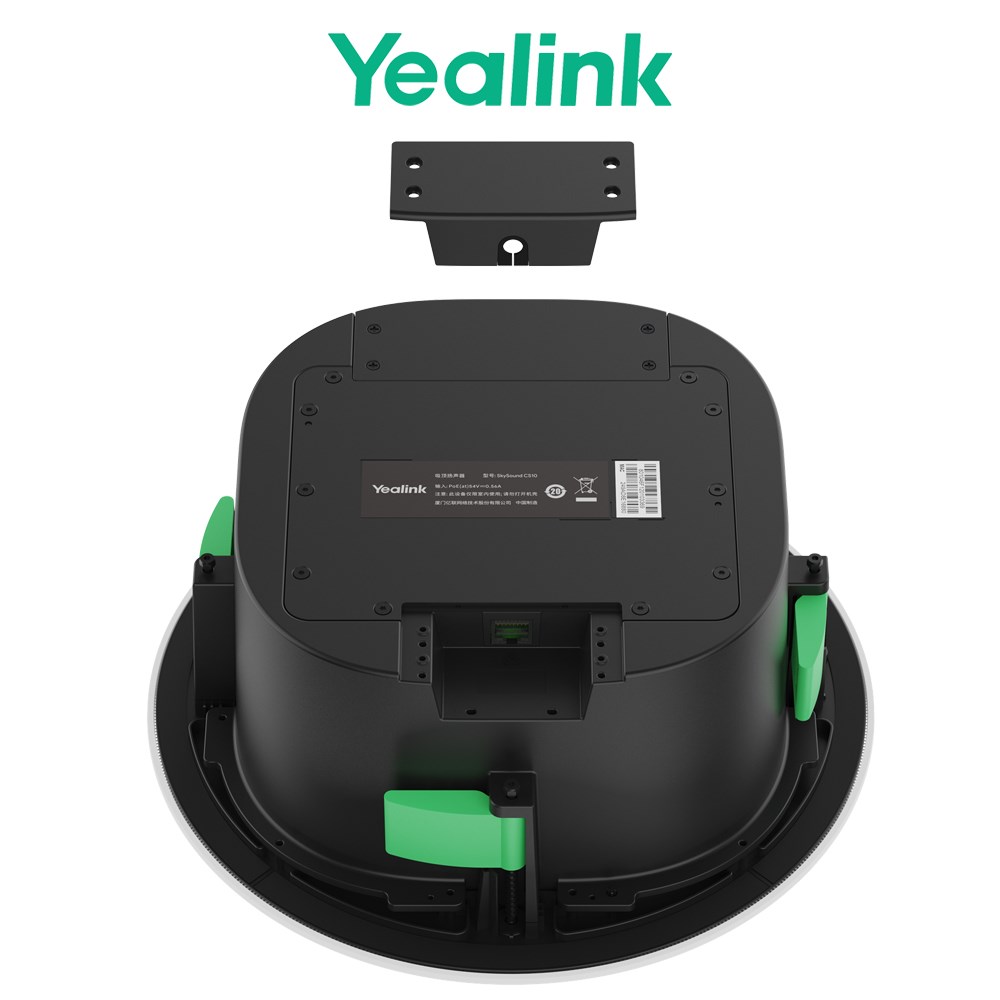

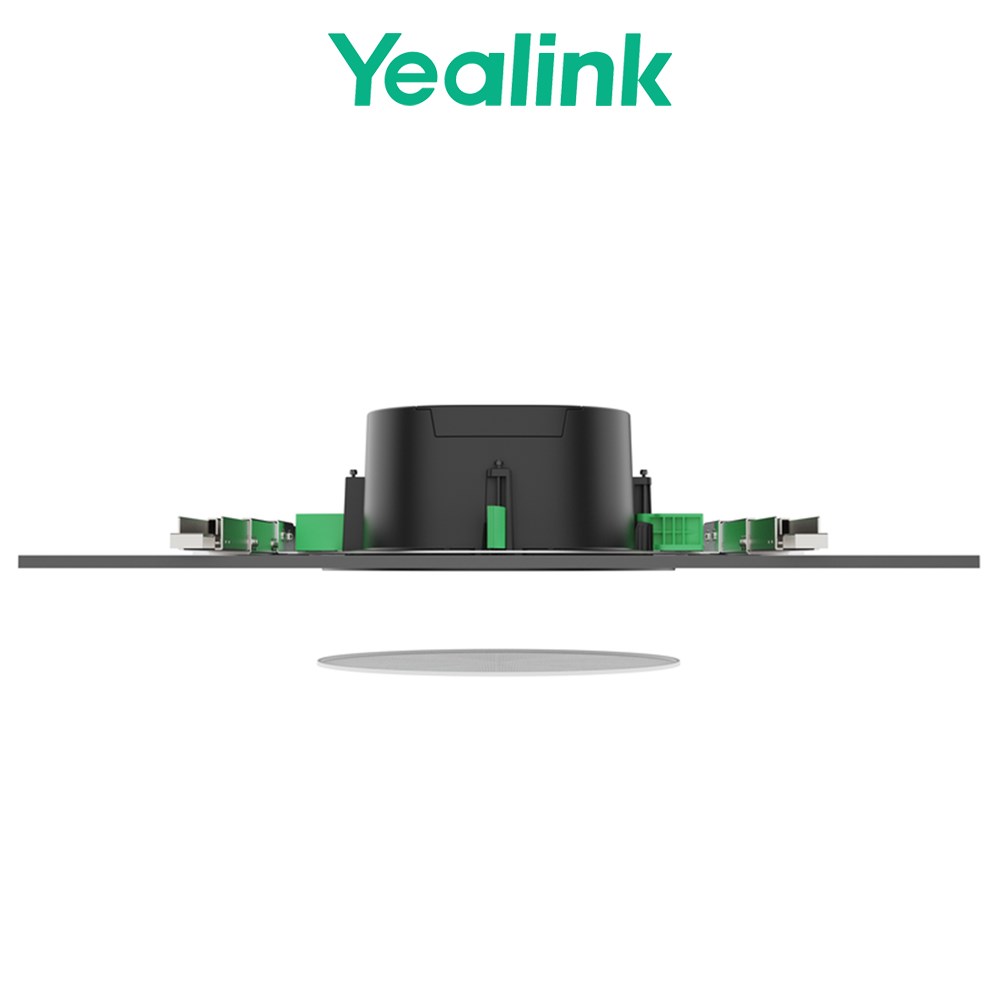

CS10 provides flexible indoor installation solutions, ensuring compatibility with various ceiling types.
ZYECS10
- Innovative Coaxial Structure
- Acoustically tuned design for speech
- PoE-Enabled Active Speaker
- Versatile Deployment
- Sophisticated Design
Introduction
The Yealink CS10, a low-profile (120mm) 2-way coaxial network speaker, excels in video conferencing with its exceptional audio performance. Designed specifically for the modern meeting environment, the CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.
Audio Specifications
- Frequency Response (-6dB): 100-20kHz
- Maximum SPL:
- Continuous: 99dB @20W 1m
- Sensitivity: 88dB@1m 1W
Speaker Specification
- LF: 5.7 inch (145 mm) woofer
- HF: 1.1 inch (28 mm) tweeter
- Nominal Impedance: 8Ω
- Nominal Coverage Angle: 120
Product Specifications
- Size:
- ф294 × H125.8mm (with cover mesh)
- ф287.2 × H125mm (without cover mesh)
- Weight:
- 2808g (without cover mesh);
- 207g (Cover mesh)
- Product Color: white/black
- Cover Mesh Color: white/black
- Product Materials:
- Cover Mesh: PC/ABS Welded SPCC
- Main Body Shell: PA (Polyamide) with 15% GF
- Bottom Shell: aluminum alloy
- Cover Plate: PC/ABS and SGCC
- Plenum Rated UL 2043 (suitable for air handling spaces)
Physical Specifications
- Operating Temperature: 0-50℃
- Storage Temperature: 0-50℃
- Operating Humidity: 5%~90%
- Rated Power: 24W (20W typical power)
- Power Supply: PoE+ (IEEE 802.3at class 4)
- Interface: 1 × RJ-45
