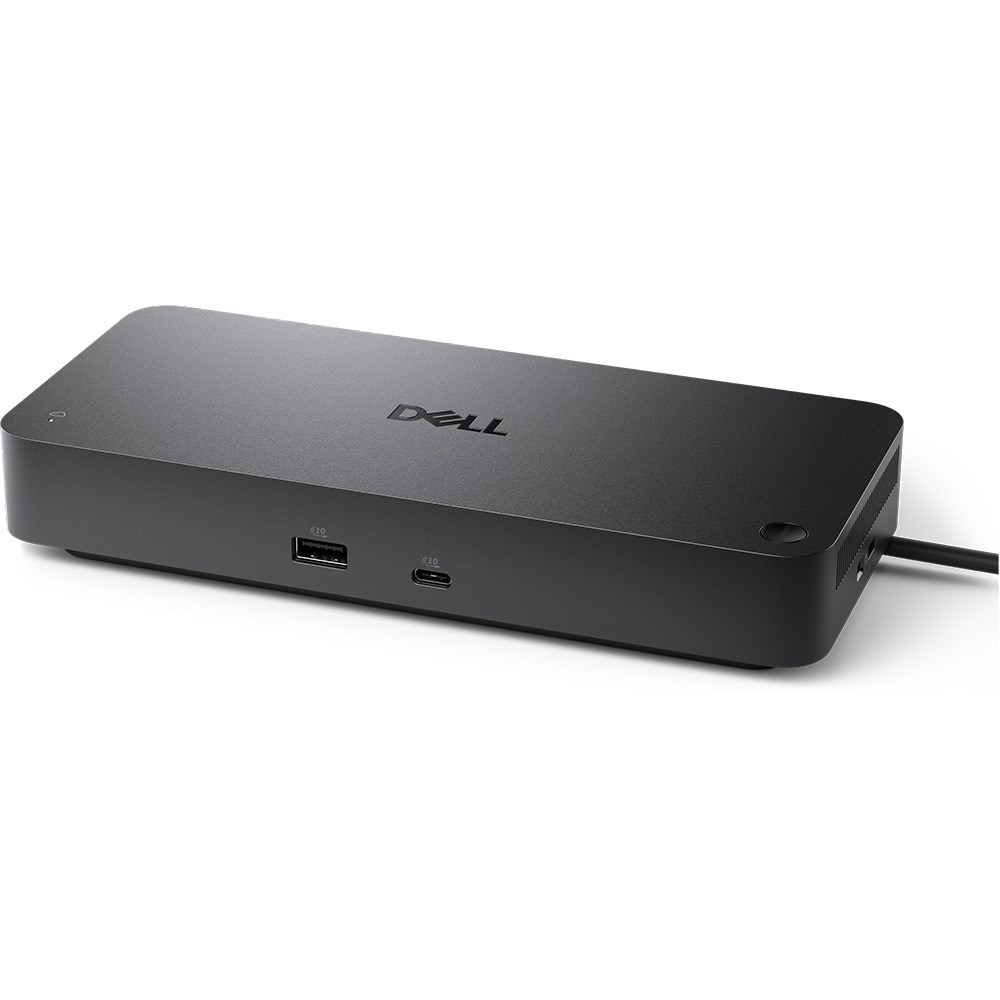

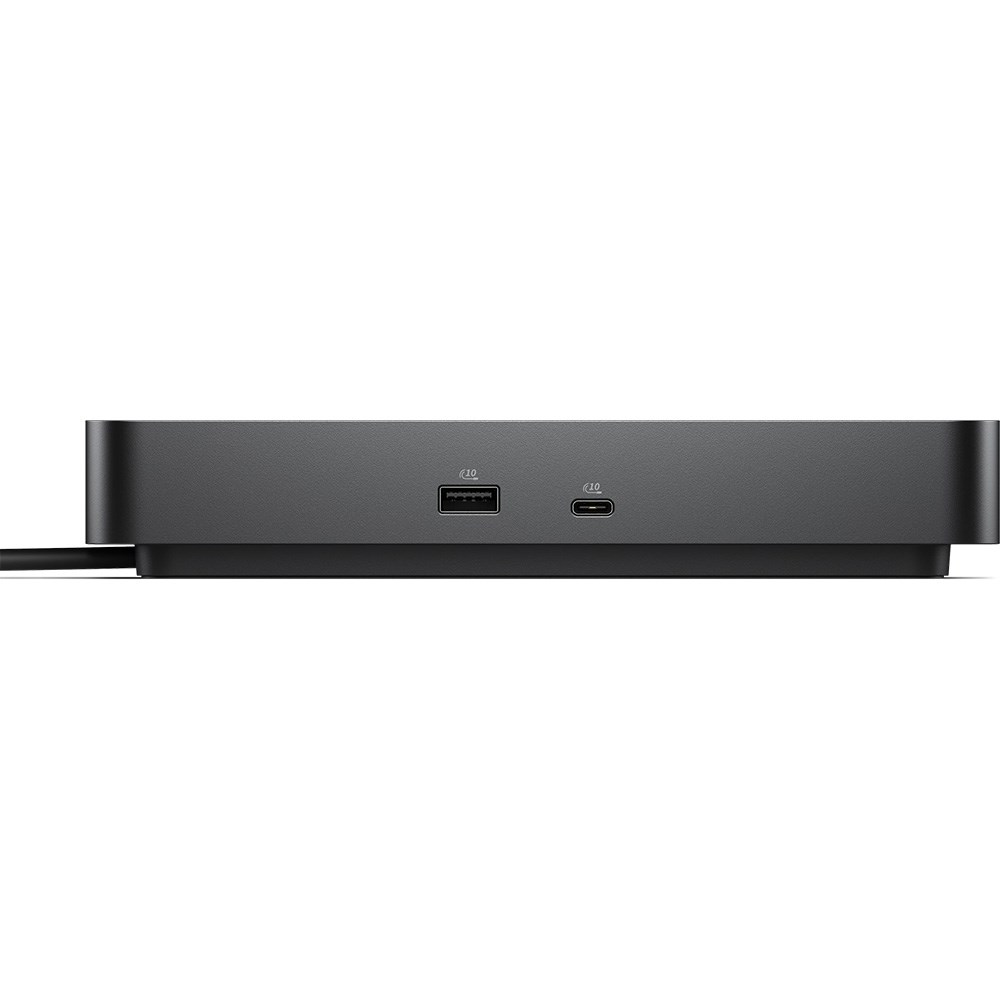

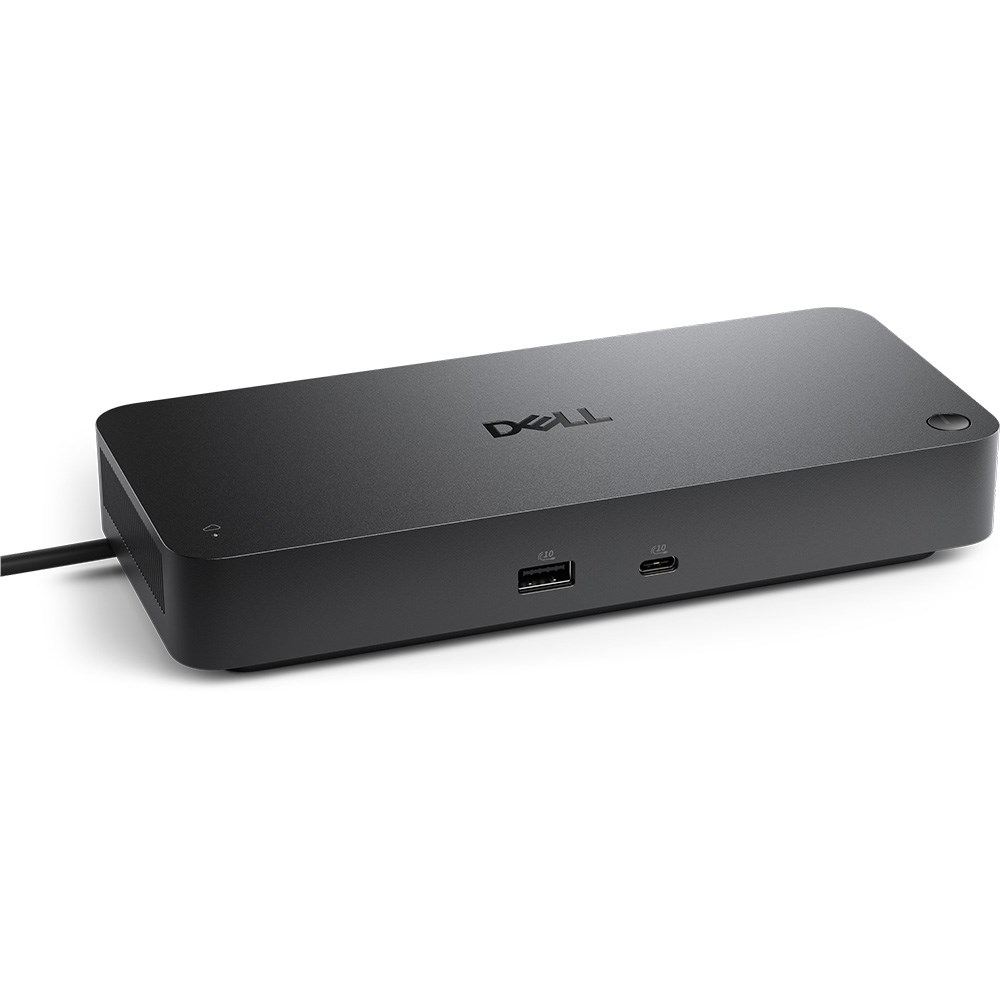

Dell Pro Smart Dock - SD25 - 130W

Dell Pro Smart Dock - SD25 - 130W Power Delivery - 2 x DP, 1 x HDMI, 2 x USB-C, 4 x USB-A - 2.5GbE RJ-45 - 3 Year Warranty

Get the power and agility to work your way with the latest smart dock featuring up to 130W USB-C power delivery and remote management capabilities.

A smarter workspace
Gain the versatility to create your ideal workspace and boost your AI PC productivity with support for up to 4 displays, up to 130W power delivery, and multiple ports to connect all your peripherals.

Remotely manageable
Elevate the IT management experience with no software or PC connection required, allowing you to remotely manage all your Dell Pro Smart Docks.

Remotely manageable
Remotely manage your smart docks without end-user presence from the Dell Device Management Console - a holistic peripheral management solution that configures, deploys, and updates smart docks over Wi-Fi.

Work securely
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.

Effortless maintenance
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.

Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable[1] that can be routed left or right.

Designed for sustainability
The Dell Pro Smart Dock is built with post-consumer recycled materials and packaged with recycled or renewable packaging.

Network & Communication

• Ethernet Technology: 2.5 Gigabit Ethernet

• Additional Warranty Information: 3-Year Limited Hardware Warranty with Advanced Exchange

• Maximum Power Supply Wattage: 130 W
• Power Source Type: Power Adapter

• Package Contents:
  • Pro Smart Dock SD25
  • Power Adapter
  • Power Cord
  • Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
• Post-consumer-waste: 65%
• Kensington Security Slot: Yes

• Weight (Approximate): 562 g
• Height: 205 mm
• Width: 90 mm
• Depth: 35.3 mm

• Operating System Supported:
  • Ubuntu 24.04
  • Windows 11
  • Red Hat Enterprise Linux 9.6
  • ChromeOS
  • Windows 10

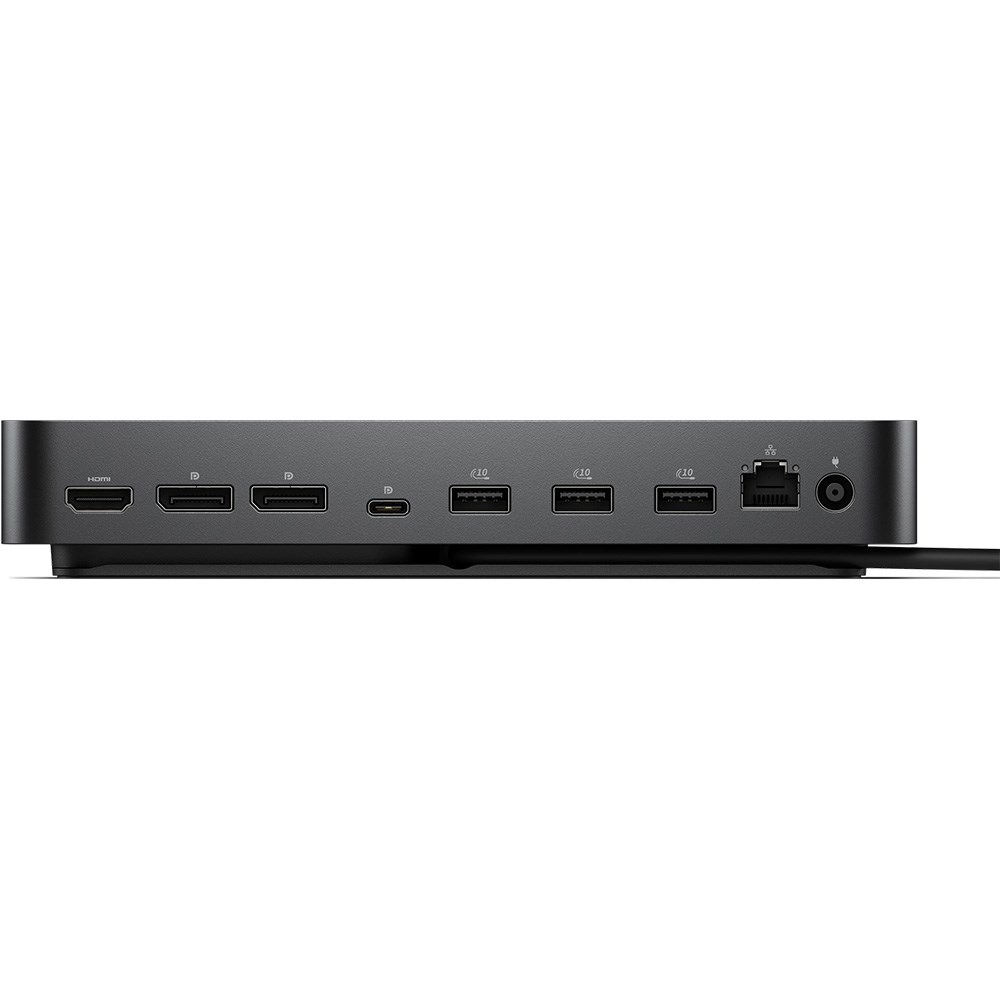

• Host Interface: USB Type C
• HDMI: Yes
• HDMI Version: 2.1
• Number of HDMI Ports: 1
• Network (RJ-45): Yes
• DisplayPort: Yes
• Total Number of USB Ports: 6
• Number of DisplayPorts: 2
• USB Type-C: Yes
• USB Type-C Detail: 1 x USB-C 3.2 Gen 2 (15W), 1 x USB-C Multi-function DisplayPort (7.5W)
• DisplayPort Version: 1.4
• Number of USB Type-C Ports: 2
• Number of USB Type-A Ports: 4
• Number of USB 3.2 Gen 2 Type-A Ports: 4
• USB Type-A: Yes

• Cable Length: 90 cm
• Device Supported:
  • Desktop PC
  • Notebook
• Connectivity Technology: Wired
• Features: Power Delivery Pass-through
• Maximum Data Transfer Rate: 1.25 GB/s
• Number of Displays Supported: 4
• Supported Resolutions:
  • 2560 x 1440
  • 3440 x 1440
  • 3840 x 2160
  • 5120 x 2160
  • 6144 x 3456
  • 1280 x 720
  • 1920 x 1080
• Screen Mode Supported:
  • QHD @ 60Hz
  • HD
  • FHD @ 60Hz
  • 6K @ 60Hz
  • 5K @ 60Hz
  • 4K @ 60Hz
  • WQHD @ 60Hz
• Management Features:
  • MAC Address Pass-through
  • Dock Power Button Sync
  • WLAN to LAN Switch
  • Wake-on-LAN
  • PXE Boot
  • Port Disablement
  • Kernel Direct Memory Access (DMA) Protection
• Power Delivery:
  • 130W (Dell Systems)
  • 96W (non-Dell Systems)
• Video Resolution Details:
  • 4K - 60 Hz (Single Display)
  • 6K - 60 Hz (Single Display)
  • HD - 60 Hz (Quad Display)
  • QHD - 60 Hz (Dual Display)
  • 5K - 60 Hz (Dual Display)
  • WQHD - 60 Hz (Triple Display)
  • FHD - 60 Hz (Triple Display)
  • WQHD - 60 Hz (Quad Display)
• Security Slot Type: Kensington Security Slot
• Power Delivery Details:
  • 4 x USB-A 3.2 Gen 2 (4.5W each)
  • 1 x USB-C 3.2 Gen 2 (15W)
  • 1 x USB-C Multi-function DisplayPort (7.5W)
  • All deliver power with or without PC
