Universal connectivity | Consistent experience
Connect to any USB-C notebook, regardless of the manufacturer, and run any operating system.
Multiple monitor support
Enhance your coworking spaces with consistent display support across different systems.
High power delivery
Achieve a fast-charging experience with up to 96W power delivery for any USB-C notebook.
Next-level productivity | Enhanced display support
Maximize productivity with the highest number of displays supported on a universal dock, enabling connection of up to four 4K monitors via DisplayLink drivers.
Multiple ports
With the highest number of ports on a universal dock, create a productive work station with increased flexibility.
Seamless experience and supportive management | Faster, easier deployment
Connect your laptop and get started quickly even when the DisplayLink driver is not installed, thanks to the additional support for DP Alt mode.
Hoteling made convenient
Enhance the shared workspace experience further with DisplayLink's layout provisioning feature that enables preconfigured display layout automatically for the users.
Specifications:
Dimensions
Width
7.6 cm
Depth
16.6 cm
Height
3.2 cm
Weight
416 g
Video
Max Resolution Details
5K - 60 Hz
Networking
Data Link Protocol
Gigabit Ethernet
Expansion / Connectivity

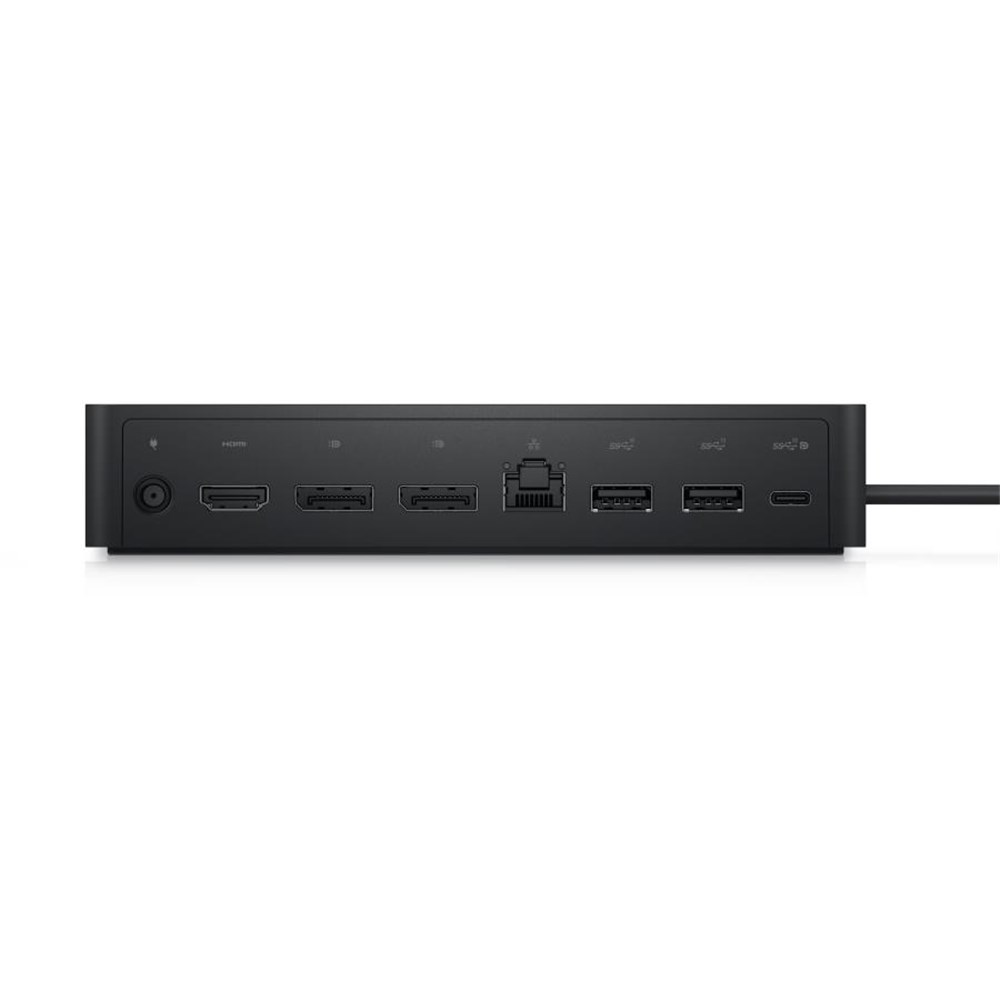

Interfaces
2 x display / video - DisplayPort - 20 pin DisplayPort (1.2)
1 x display / video - HDMI
1 x USB-C 3.2 Gen 2/DisplayPort
1 x USB 3.2 Gen 2 with PowerShare
3 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen 2
1 x network - RJ-45
Cables Included
1 x USB-C cable - 0.8 m
Features:
Security lock slot (cable lock sold separately)
wake on LAN, 3 LED indicators
MAC address pass-through

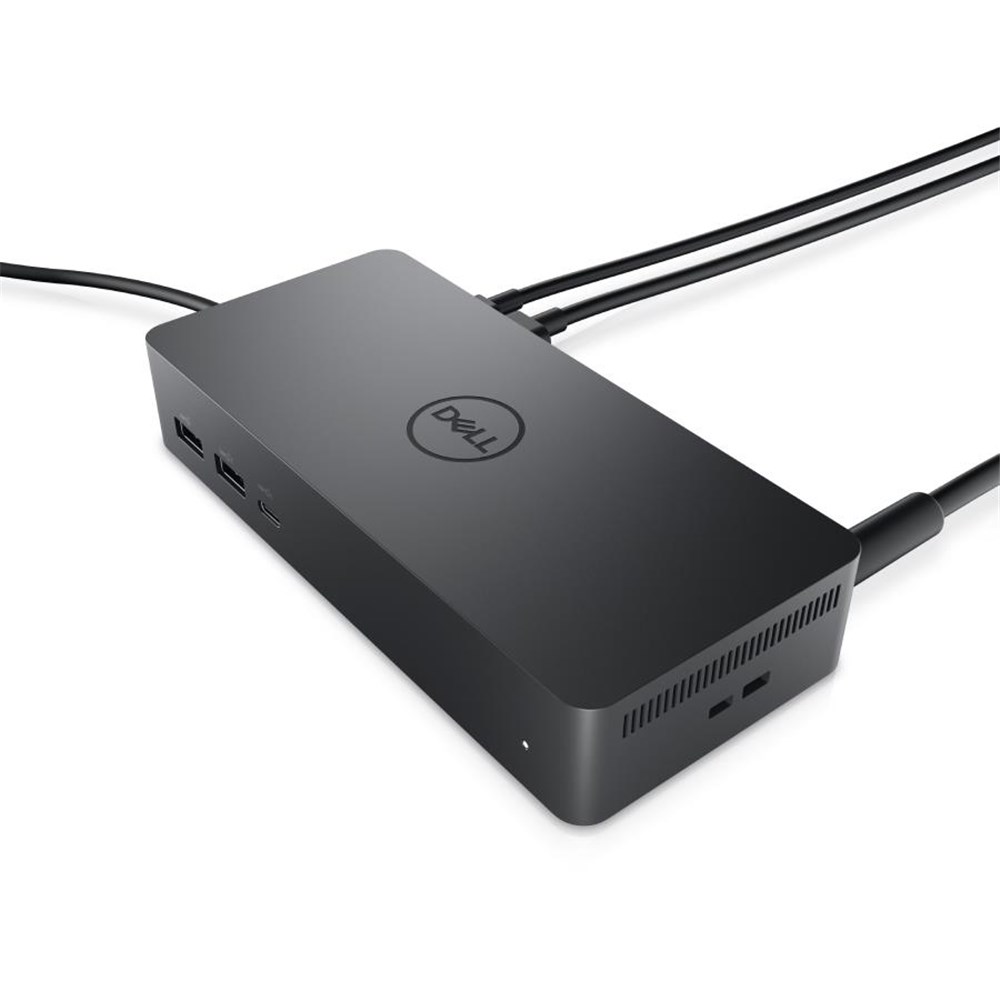

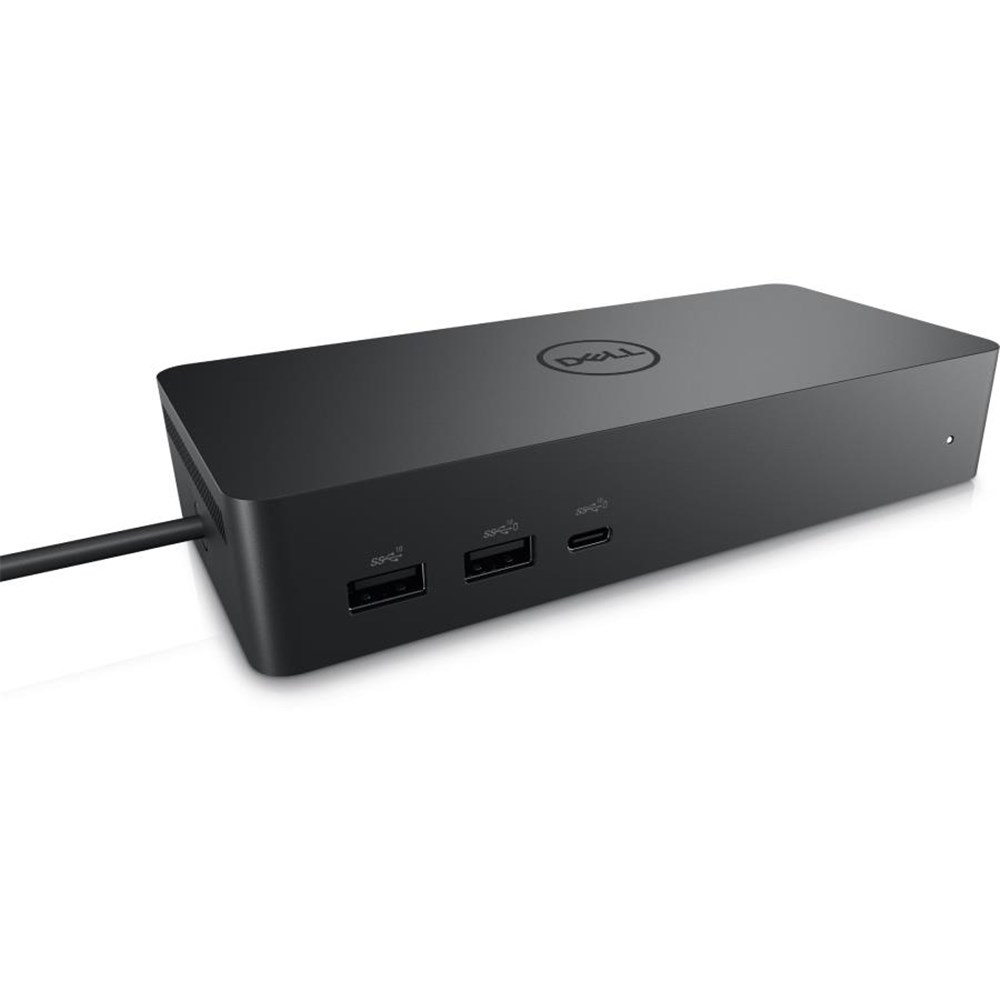

Dell UD22 USB-C - Universal Dock (Works with Mac and PC)
wireless vPro, 96W power delivery
High Bit Rate 3 (HBR3)
High Bit Rate 2 (HBR2)
Kernel Direct Memory Access (DMA) protection
Security Slot Type
Kensington nano security slot / Kensington security slot
Power Device
Power adapter
Power Adapter Wattage
130 Watt
System Requirements
OS Required
Windows 10, Windows 11, Ubuntu 20.04 or later, Apple macOS 12.21 or later, Google Chrome OS 100 or later
3 years Advanced Exchange Service and Limited Hardware Warranty
