This kit is designed ready for the user to install.

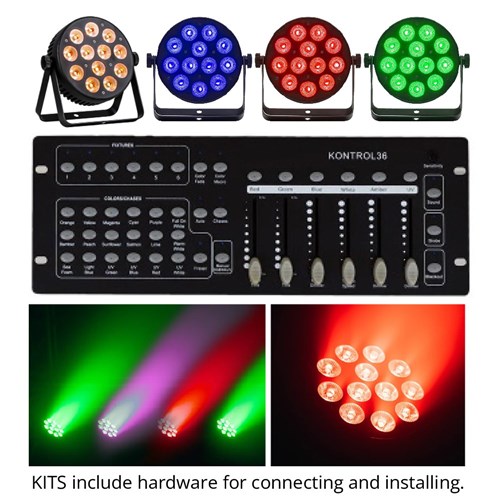

Kit includes 4 x LED Flat Par with 12 x 12W RGBWAU LEDs (PAR12X12L) and a control system. Clamps, patch power and data leads are included, main input lead required separately. Installation can be arranged at an extra cost.
ZEVINLIGHTPK1
ZEVINLIGHTPK1

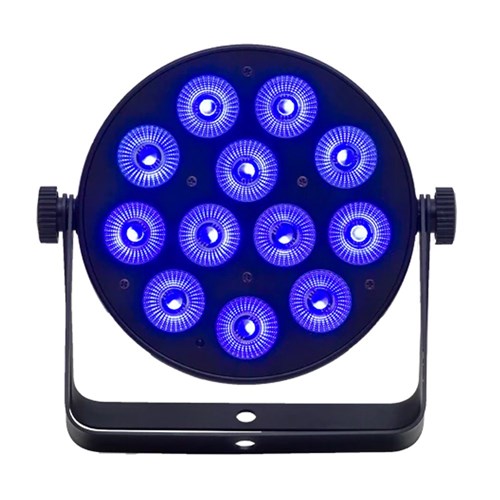

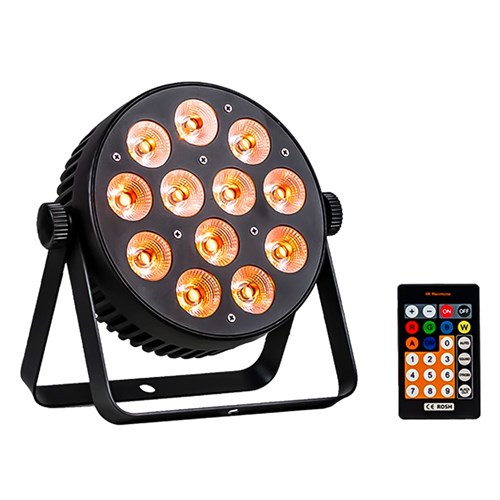

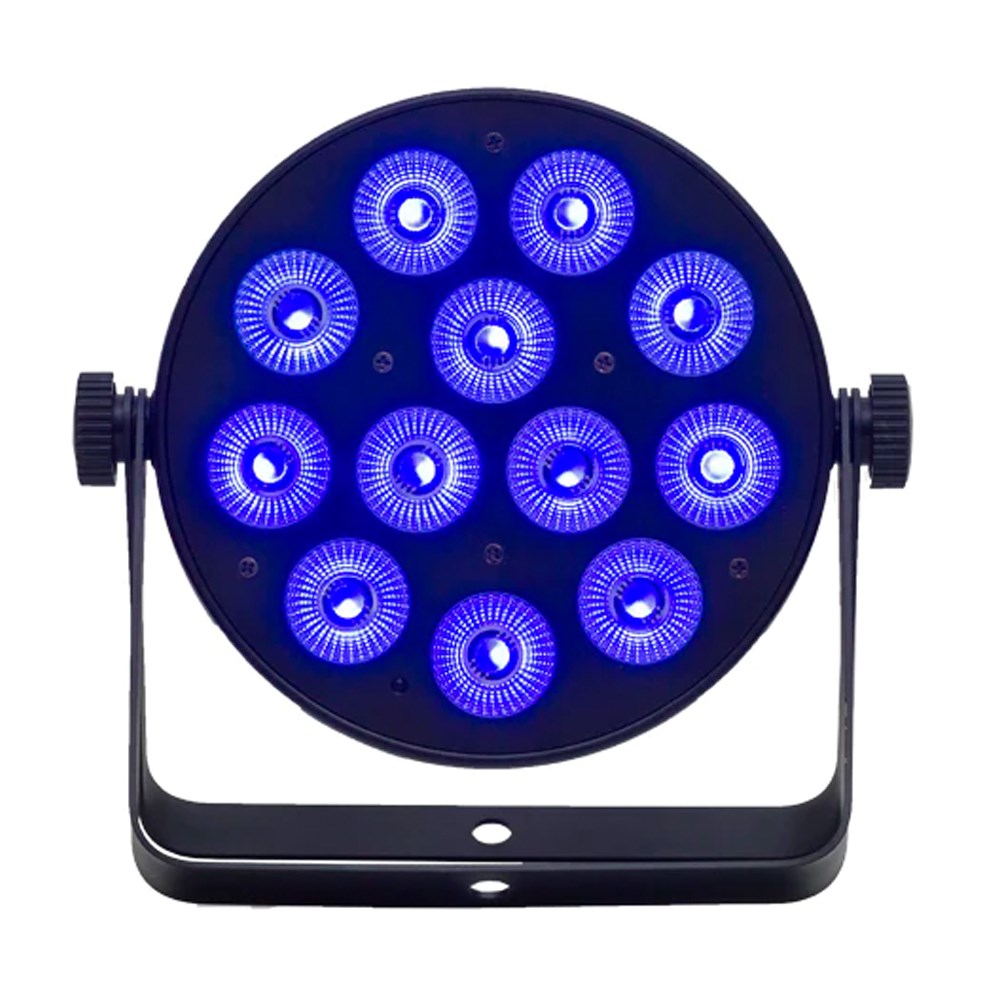

Specifications for the Lite Series LED Flat Par with 12 x 12W RGBWAU LEDs:
Photometric
- Light Source: 12x 12W RGBWAU 6-in-1 LEDs.
- Beam Angle: 40°.
- PWM: 2,000 Hz.
- LED Lifespan: 50,000hours.
Effects
- Dimming: 0~100%.
- Strobe: 1 - 20 Hz.
Power
- Input Voltage: 100~240V AC, 50/60Hz.
- Power Consumption: 60W.

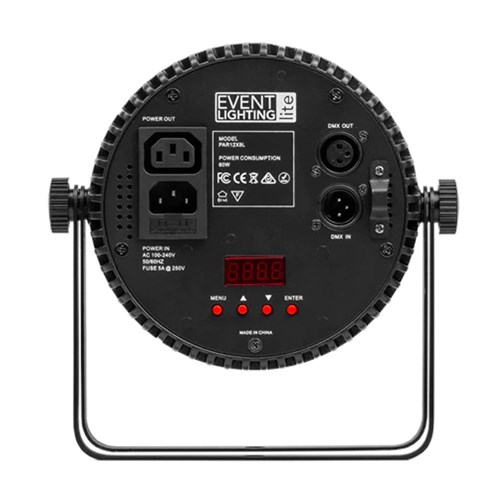

- Connection: IEC in/out.
- IEC piggy back cable included.
Control

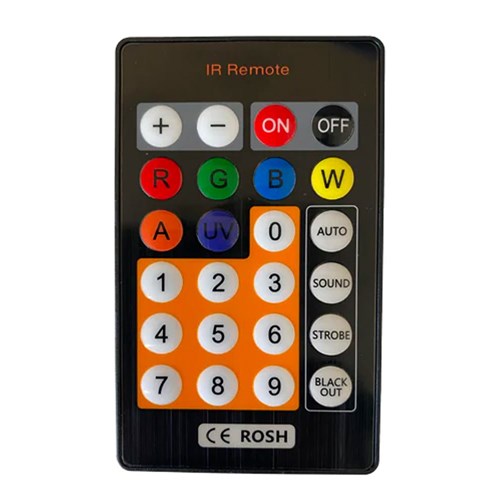

- Operation Modes: DMX, manual, auto, sound active, IR remote, master/slave.
- DMX channels: 6/11.
Housing
- Materials: Die-cast aluminium, matte black finish.
- Cooling: Fanless Cooling.
- Net weight: 1.85kg.

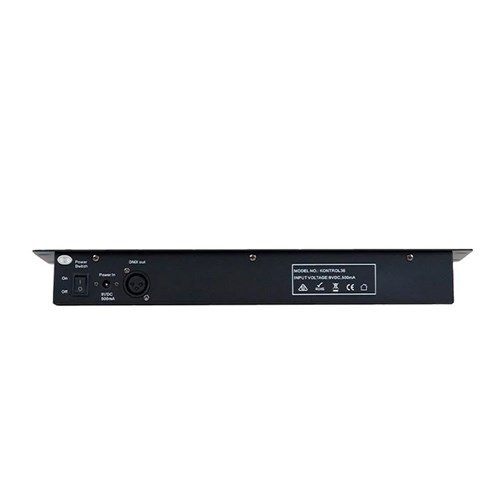

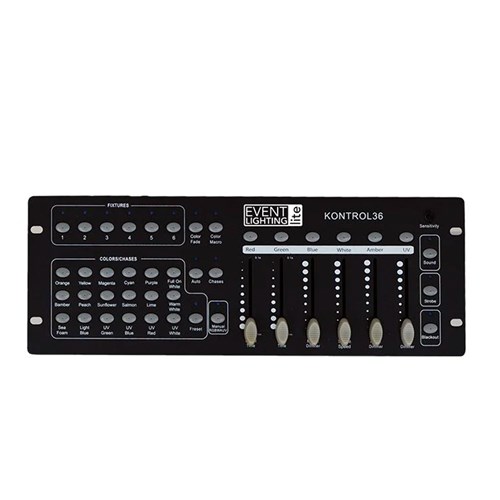

Specifications for the KONTROL36 - 6 x RGBWAU fixture DMX controller:
- DMX512 protocol with 36channels.
- Independent control of 6 fixtures, 6ch each (RGBWAU).
- Each fixture can be set in different playback modes simultaneously.
- Variable fade times for all playback modes.
- Variable strobe 0-30Hz.
- Slider for master dimmer.
- Adjustable blackout allows fixtures to fade out.
- Sound-activated: synchronized music activation through internal microphone with adjustable sensitivity.
- Preset: 18 color preset for an immediate operation.
- Macro: Virtual color wheel to scroll the whole color spectrum.
- Power: 9V DC 500mA.
- Dimensions: 393 x 140 x 50 mm.
- Weight: 1.5kg.
-
4 x Lite Series LED Flat Par with 12 x 12W RGBWAU LEDs, Aluminium Fanless Housing, IEC in/out, 3 pin DMX in/out, 40° Beam Angle and IR Remote Included (PAR12X12L).
-
1 x 6 x RGBWAU fixture DMX controller (KONTROL36).
-
3 x 3m XLR 3 pin male to female - Yellow Ring (XLR3M3F3).
-
3 x 3m Male IEC to Female IEC extension lead - 1.5mm2 (IEC3).
-
4 x Aluminium Pipe Clamp, Suits 48 - 51mm tube, 30mm width, WLL 75Kg - BLACK (CLAMPP50L).
-
4 x Safety Wire, 3mm steel at 800mm long, 40Kg maximum load - 230Kg dead weight breaking point. Black PVC coated (SW3X800PB).
