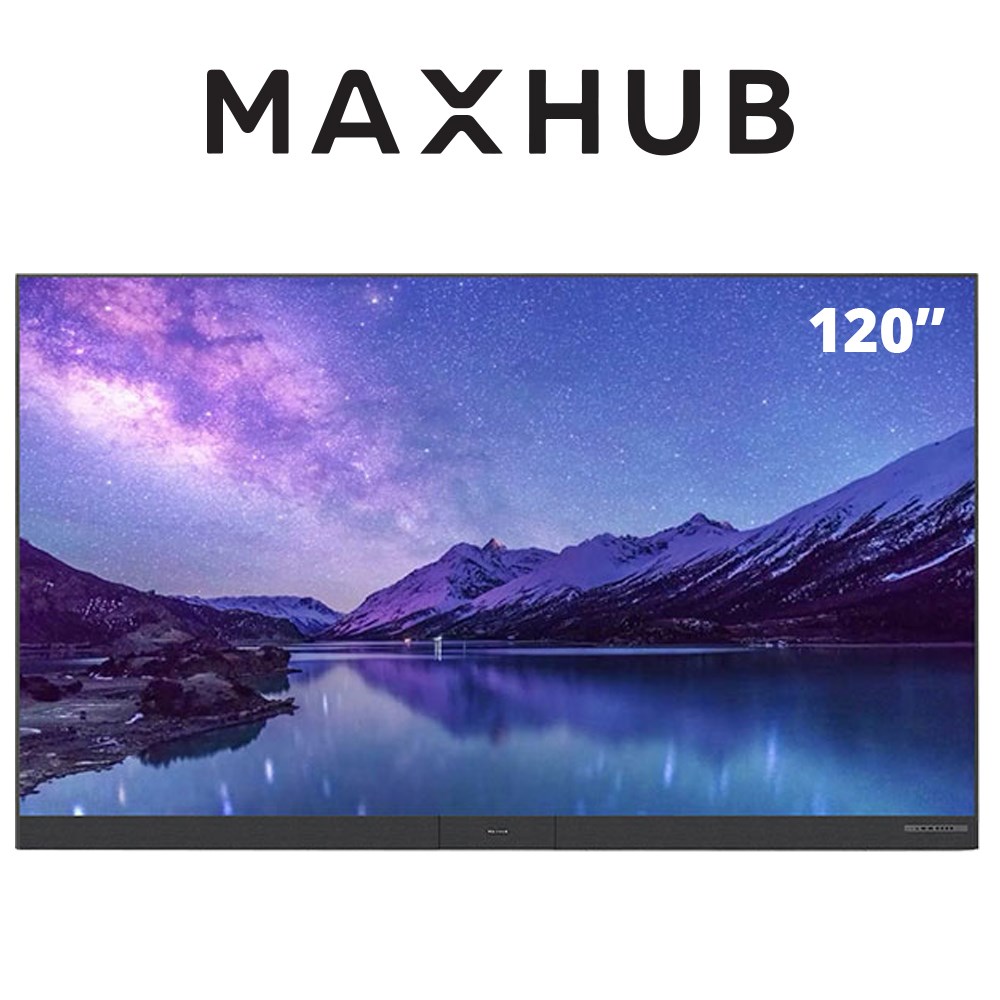

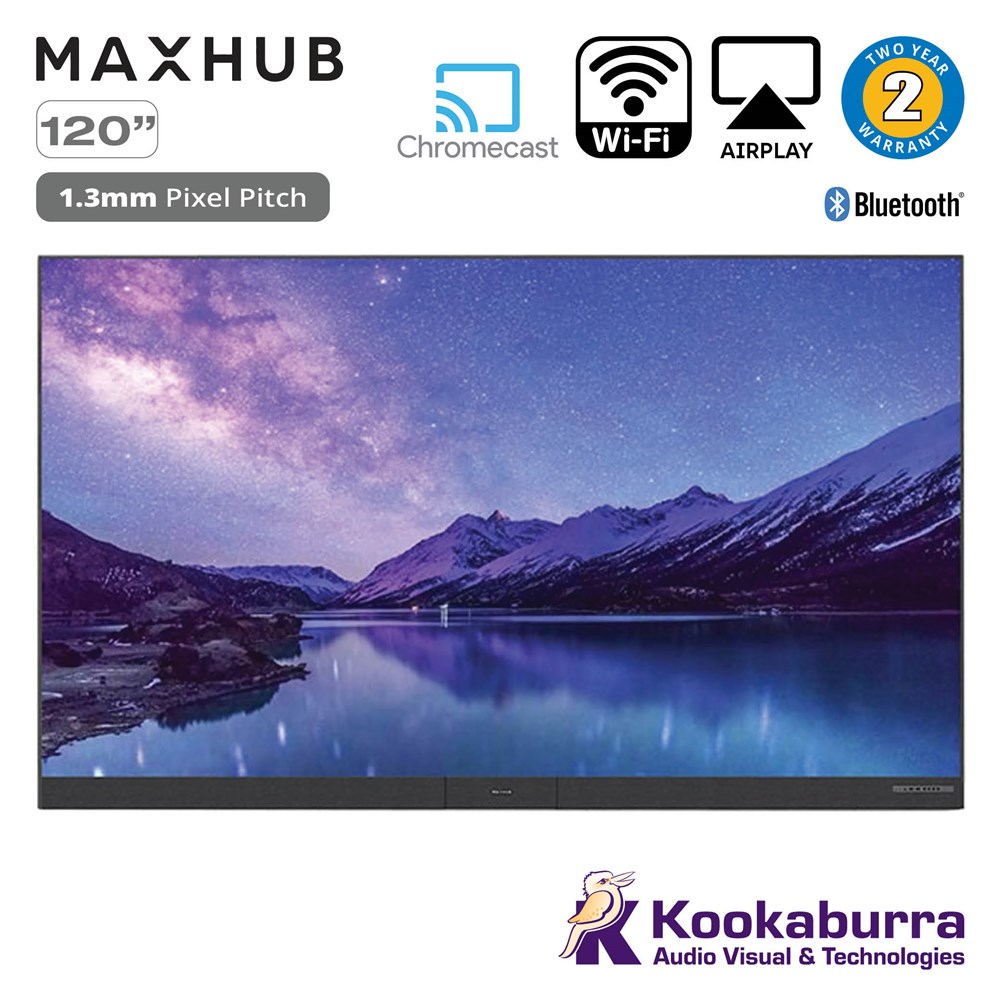

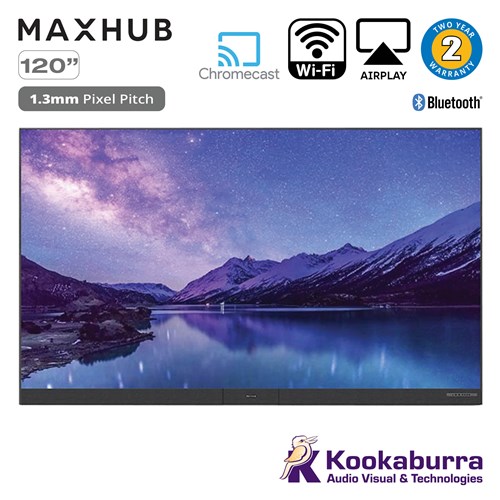

Maxhub Raptor 120" LED 1.3mm Pixel Pitch FHD Gen 3

Product Code:
MONI0083
Additional Delivery Charge
Share this product
Unit Description
Each
Usually Ships 5-7 Days
Quantity in cart:
  • Description
  • Specifications
  • Downloads
  • Contact Us

MAXHUB DVLED RAPTOR SERIES V3

Boost your conference experience with our premium, large-format DVLED all-in-one solution.

EXPLORE A RANGE OF SUPERIOR VISUAL QUALITY OPTIONS FOR YOUR ROOM

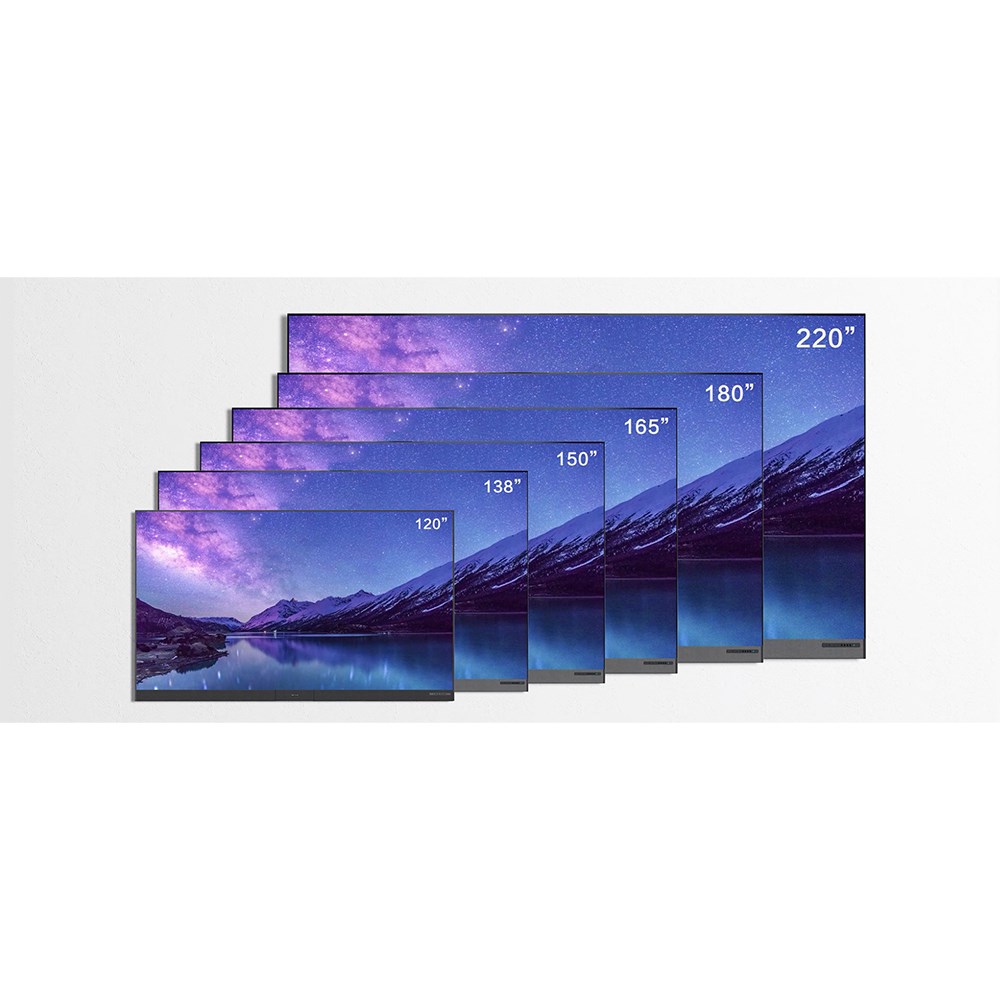

The options available range from 120" to 220", offering versatility to accommodate various room sizes and viewing preferences.

BUILT-IN ANDROID 13 SYSTEM
Experience more than just a display; with numerous built-in applications, transform your room into a versatile space.

OPTIONAL BUILT-IN PC
With high compatibility, this option is compatible with a variety of devices and protocols needed for different display scenarios.

VERSATILE VIDEO CONFERENCING SOFTWARE COMPATIBILITY
The system supports a range of platforms such as Teams, Zoom, Webex and Google Meet.

COMPATIBLE WITH MAXHUB MICROSOFT TEAMS ROOMS ECO SYSTEM
Featuring Wake on Sync and Microsoft Teams Rooms PC wake-on with Raptor, this system allows for effortless preparation of your meeting room, freeing your hands for other tasks.

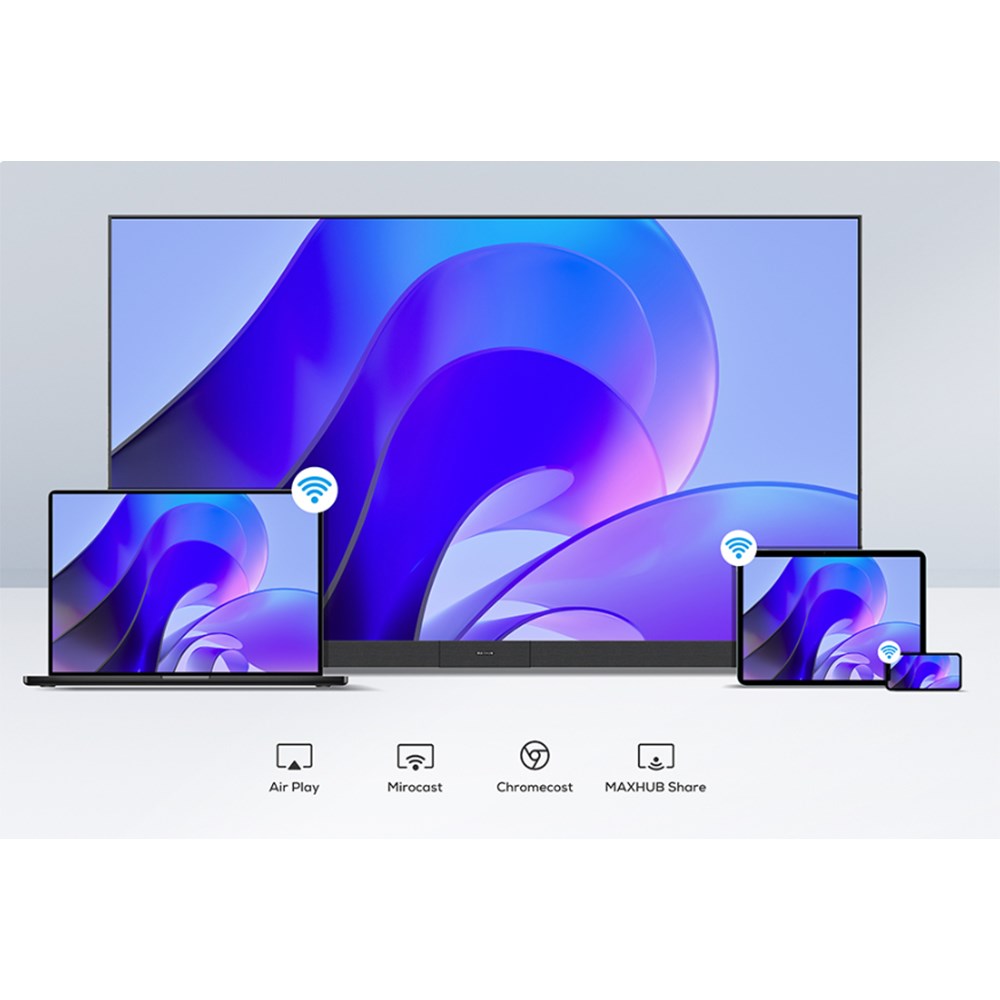

WIRELESS SCREEN SHARING CAPABILITIES
Wireless screen sharing is seamlessly facilitated through platforms such as MAXHUB Share, Miracast, Chromecast, and AirPlay.

BYOM
Support wireless use the MAXHUB UC products connected to the devices

WIRELESS SCREEN SHARING CAPABILITIES
Wireless screen sharing is seamlessly facilitated through platforms such as MAXHUB Share, Miracast, Chromecast, and AirPlay.

BYOM
Support wireless use the MAXHUB UC products connected to the devices

IMMERSIVE AUDIO SYSTEM CLEAR VOICE FOR LARGE SPACE
4.2-channel audio, with front gap sound emission

EFFORTLESS DEVICE CONTROL
Enjoy effortless device management with our MAXHUB touch Control Panel and self-developed app for mobile device control.

AMPLE I/O PORTS
High potential to set up your meeting room with different components

3RD PARTY CONTROL INTEGRATION
Seamlessly integrated with 3rd party control system such as Q-SYS, Extron, and more.

SUPPORT MAXHUB PIVOT
Better to know your device and prepare a good meeting experience remotely

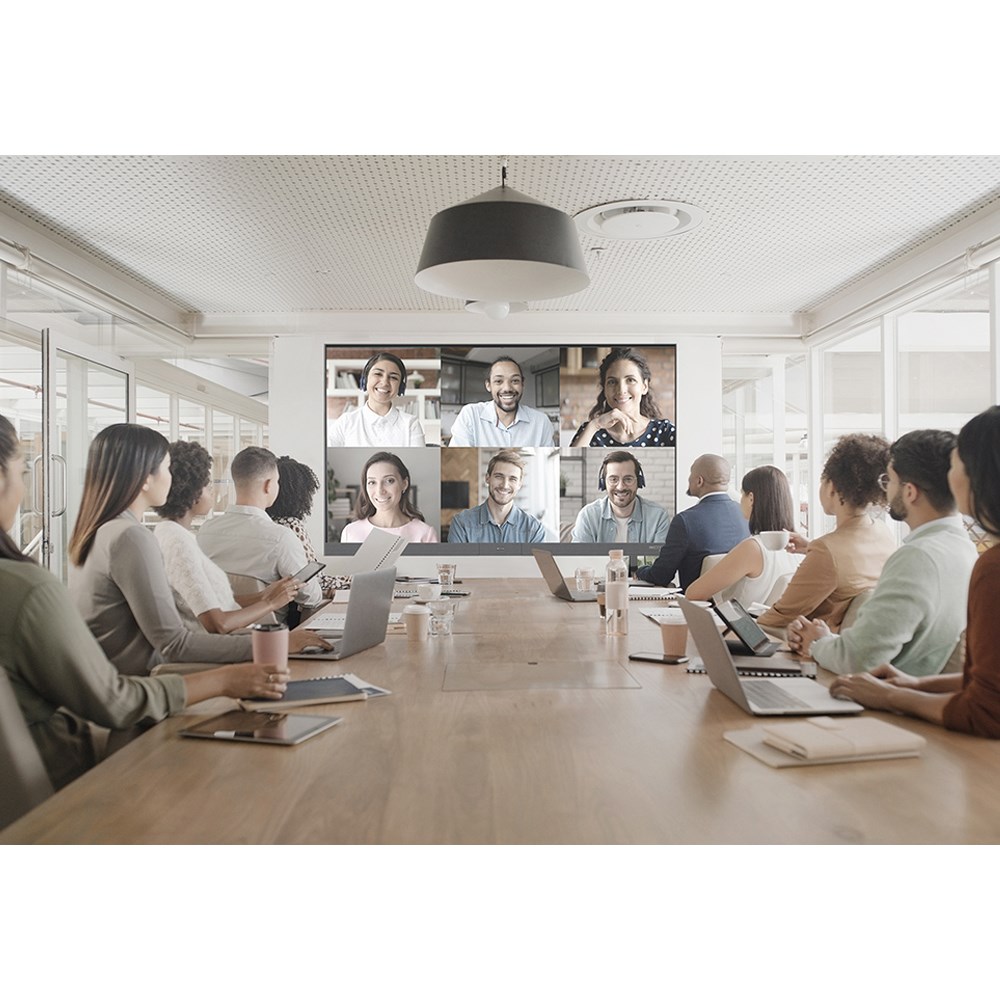

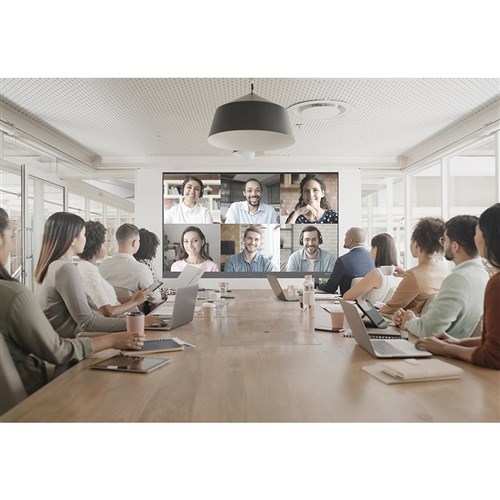

LARGE MEETING ROOM
Discover a complete, all-in-one solution for large meeting rooms with MAXHUB's range of innovative products.

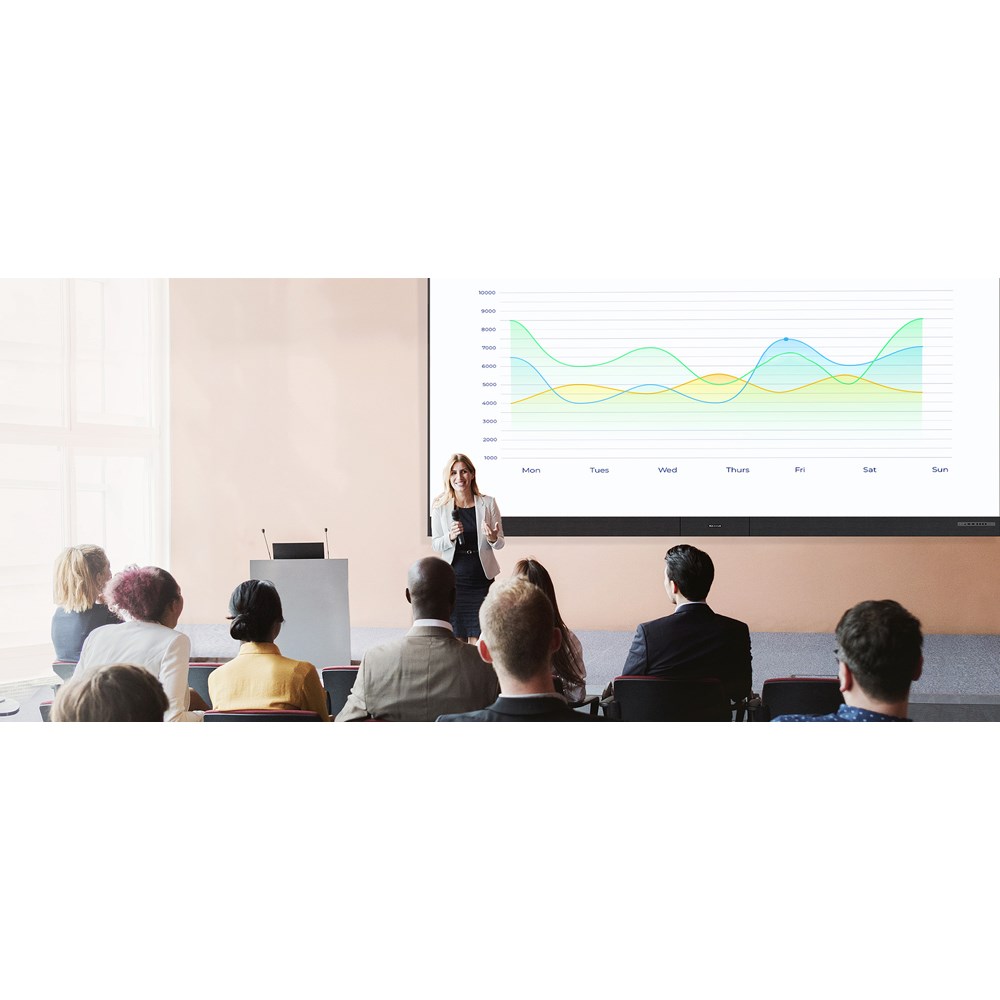

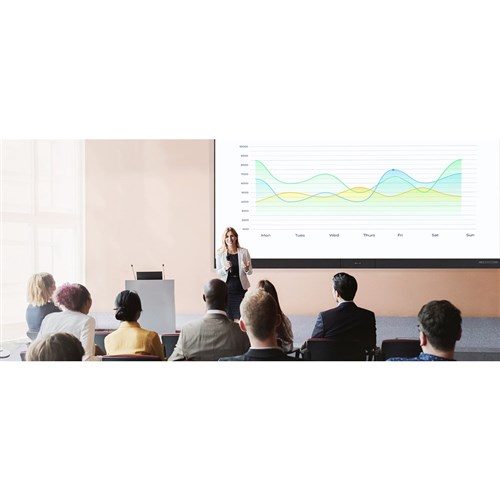

LARGE TRAINNING ROOM
Equip your large training room with our Smart Lectern, complete with an audio system at no extra cost for speakers and mixers

SHOWROOM
Our LED Raptor product offers versatile applications for various settings such as businesses, retail environments, sports bars, and more.


ZMXLX120V07
MONI0083

Physical Specification

  • LED Type: SMD
  • Size: 120"
  • Aspect Ratio: 16:9
  • Pixel Pitch: 1.3mm
  • Resolution: 1920 × 1080
  • Overall Size (W*H): 2694 × 1624mm
  • Display Area (W*H): 2664 × 1499mm
  • Screen Thickness: 28mm
  • Net Weight (Wall-mounting bar and stand not included): 87kg
  • Gross Weight (Including Wall-mounting bar): 165kg
  • Recommended Viewing Distance: ≥ 2.8m
  • Maintenance Mode: Front Access
  • Installation Options: Mobile Stand, Wall-mounting
  • Screen and Module Dimension (Wooden Box) (W*H*D): 1 pc: 1680 × 810 × 915mm
  • Lower Frame and Wall-mounting Bar Packing Dimension (Wooden box) (W*H*D): 1 pc: 2135 × 562 × 509mm

Electrical Parameter

  • Operation Voltage: 100~240VAC, 50/60Hz
  • Standby Power: ≤0.5W
  • Average Power Consumption of Overall Unit: 0.483 KW
  • Maximum Power Consumption of Overall Unit: 1.611 KW
  • Number of 100-120V: 1
  • Power Cable 200-240V: 1

Optical Specification

  • Brightness: 100~600 nits (Adjustable)
  • Refresh Rate: 3840 Hz
  • Gray Scale: 13~16 bit, 6500:1
  • Colour Temperature: 2300~9300K (Adjustable)
  • Viewing Angle: 160° (H) / 140° (V)
  • LED Lifespan: ≥100,000 hrs

Audio

  • Speaker Unit: 4 full range units + 2 low frequency units
  • Speaker Max. Power: 120W
  • Max. Sound Pressure Level: 95 dB
System Parameter
  • Operating System: Android 13.0
  • CPU: Four Cortex-A76+ four Cortex-A55, frequency 2.4GHz
  • RAM: 8GB
  • Storage: 64GB
  • Media Format: Support mainstream video format such as MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC, AV1;
  • Support audio formats such as MP3;
  • Support JPG, JPEG, BMP, PNG, GIF and other image format
  • Bluetooth: 5.3
  • Wi-Fi: WiFi 6, AP and STA modes, and WiFi 6 dual-band 2.4G/5G are available

Environmental Parameter

  • Operation Temperature: -10℃~40℃
  • Operation Humidity: 10%~80%RH No condensation

Accessories

  • Remote Control: 1
  • Front Maintenance Tool: 1
  • Tool kit: 1
  • Wall-mounting Bar: 1
