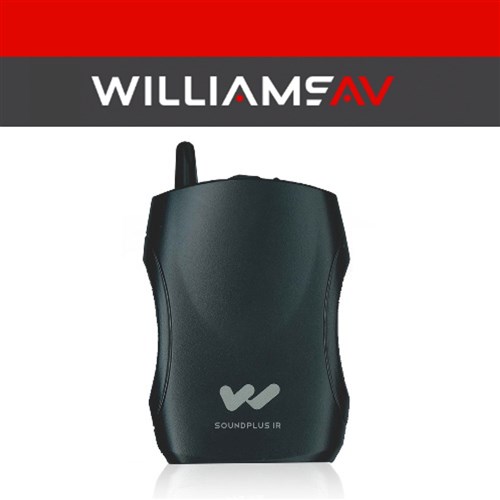

Williams AV Ifrared Body Pack 4 Channel Receiver

Product Code: WIWIRRS224N

Share this product
Unit Description
Each
Usually Ships 5-7 Days
Login for School Account Pricing

$439.00 inc GST
Increase value Decrease value
Quantity in cart:
Qty Each Save %
  • Description
  • Specifications
  • Contents
  • Downloads
  • Contact Us

Featuring a sleek body-pack design, this four-channel selectable infrared receiver offers a convenient channel selector and user-friendly on/off volume control. It covers areas of up to 30,000 square feet (2,800 square meters) in single-channel mode and is compatible with Williams AV infrared transmitters operating within the 2.3/2.8/3.3/3.8 MHz bandwidth.

Note: Headphones, earphones, and neckloop sold separately.


ZAEWI-WIRRX22-4N
  • Receiver Style: Body-Pack, dual-lens detector, lanyard
  • Size: 4.1″ L x 2.85″ W x 1.2″ H (104.1 mm x 72.4 mm x 30.4 mm)
  • Weight: 4.5 oz (127 g) with batteries
  • Color and Material: Black
  • Lanyard: 3 ft (0.91 m), allows receiver to be worn around the neck
  • Operating Temperature: -10° C to +50° C
  • Battery Type: 2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
  • Battery Life: Alkaline: 60 hours, NiMH: 30 hours/charge
  • Battery Drain: 25 mA, nominal
  • Charging Contacts: For use only with CHG 3512
  • Carrier Frequency: Channel 1: 2.3 MHz, Channel 2: 2.8 MHz
  • Channel 3: 3.3 MHz, Channel 4: 3.8 MHz
  • De-Emphasis: 50 uS
  • FM Deviation: ±50 kHz
  • Signal-to-Noise Ratio: 60 dB min.
  • Squelch: Receiver squelches (mutes) at 28 dB S/N ratio
  • Frequency Response: 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
  • Total Harmonic Distortion: Less than 1%, electrical response
  • Controls: ON/OFF/VOLUME: combination thumbwheel knob
  • Channel Selector: four-position rotary switch
  • Indicators: Red LED “ON” indicator, flashes to indicate Low battery
  • Audio Output Jacks: 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
  • Audio Output Power: 15 mW max at 32 Ω
  • Acoustic Output: 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
  • Sensitivity: Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
  • Approvals: CE, FCC, RoHS, WEEE
  • Warranty: 5 years on receiver, 90 days on accessories
  • Compatible Headphones/Earphones: Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001

System Includes:

  • 1 x WIR RX22-4N Receiver
  • 2 x RCS 004 Lanyard
Captcha Image
Signature
Product Specifications
Product Type IR Systems
Brand Williams AV
Warranty Information
5 Years
